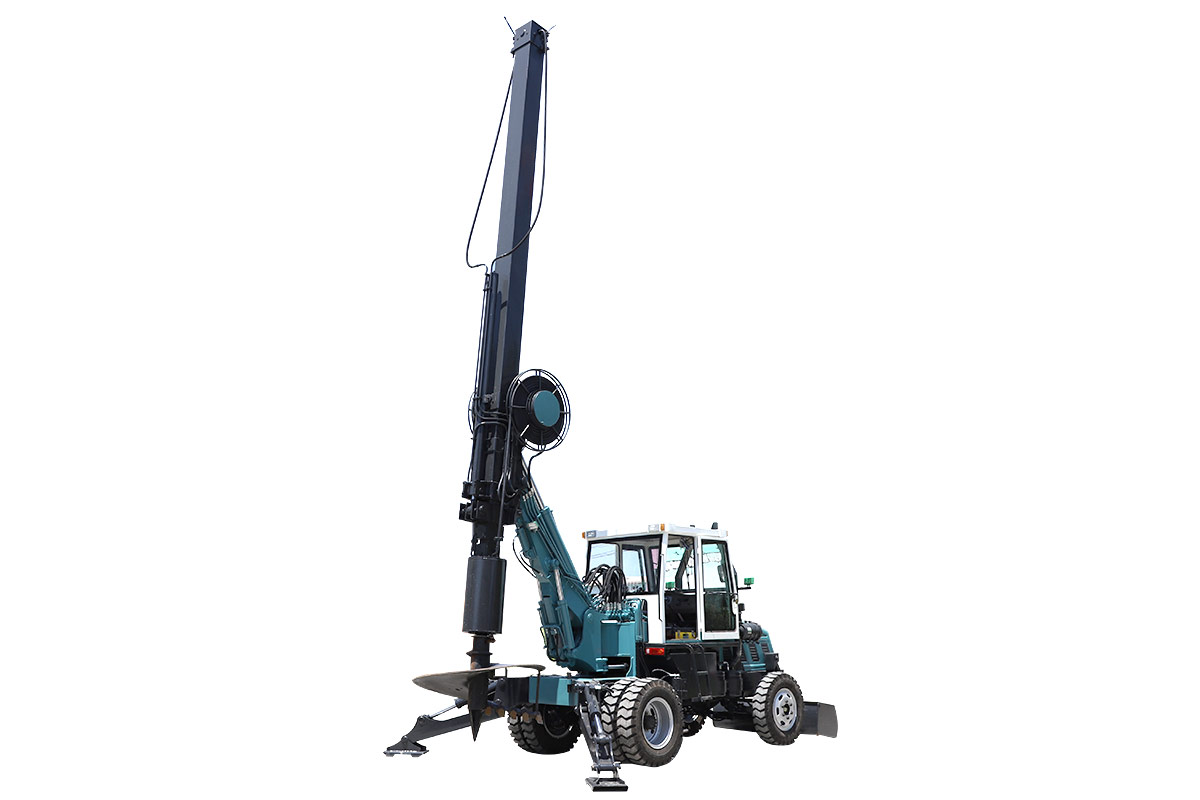

Wheel Rotary Pile Driver
-
Drilling depth: 15m
Drill diameter: 400-2200mm
Engine power: 120-150HP
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<
Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering.
Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction.
Main feature:
1. Large torque, can reach 120～400kN·m, the maximum hole diameter can reach 1.5～4m, and the maximum hole depth is 60～90m;

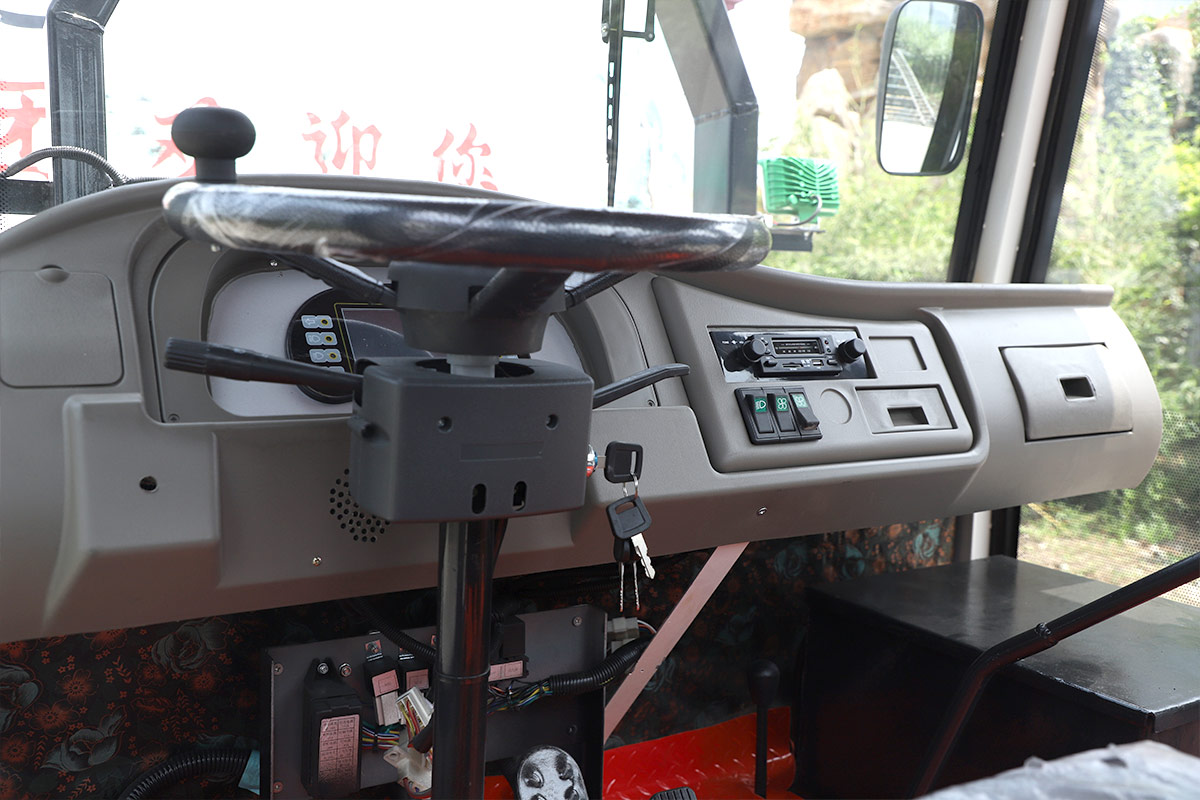

2. Control handles and instruments are centrally arranged, with reasonable layout and convenient operation;

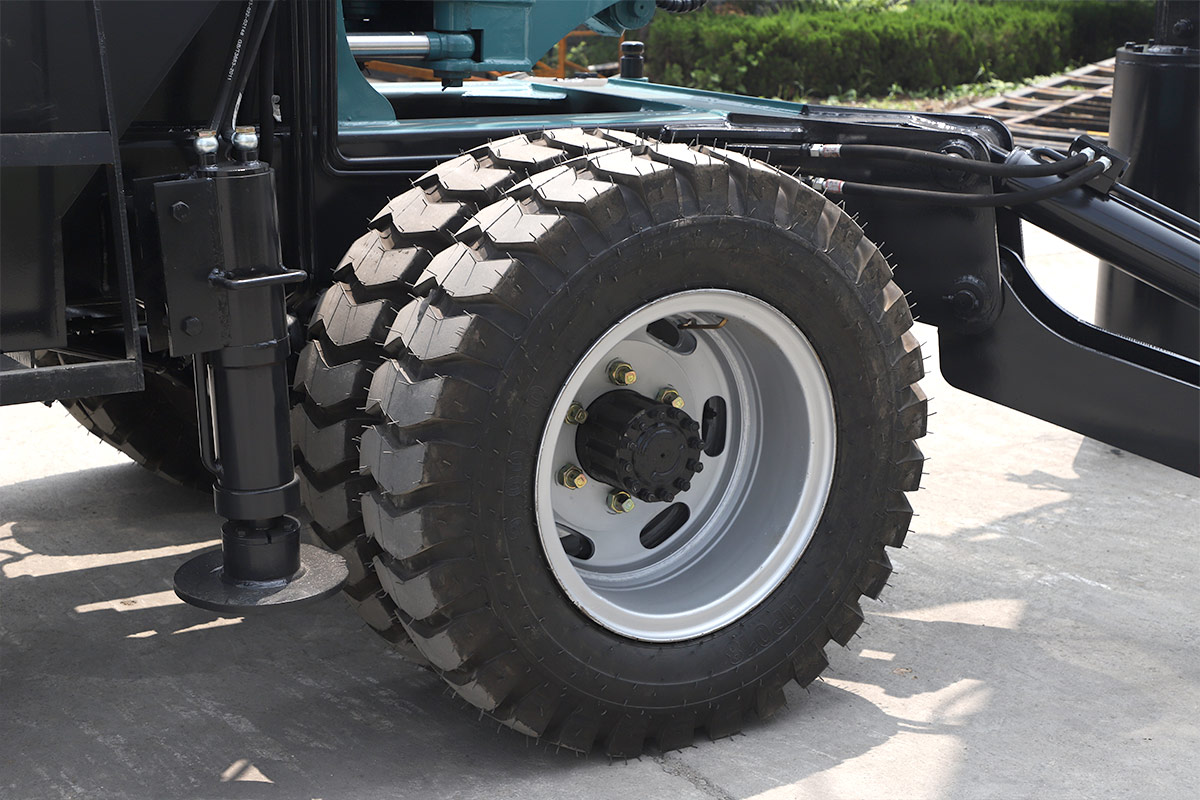

3. The tire base and high counterweight increase the overall stability of the fuselage while ensuring flexible movement.
Parameter
Here are the key specifications for this product model. Want more details? Please contact us!
| Model | HWDR150D |
| Dimensions (mm) | 7700*2200*3000 |
| Vehivie mass (kg) | 8500 |
| Wheelbase (mm) | 3250 |
| Drilling depth (m) | 1-15 |
| Drilling diameter (mm) | 500-2000 |
| Rotation angle (°) | 180 |
| Walking speed (km/h) | 5 |
| Displacement of the hydraulic systym (ml/r) | 80 |
| Engine power (kw) | 88 |
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
