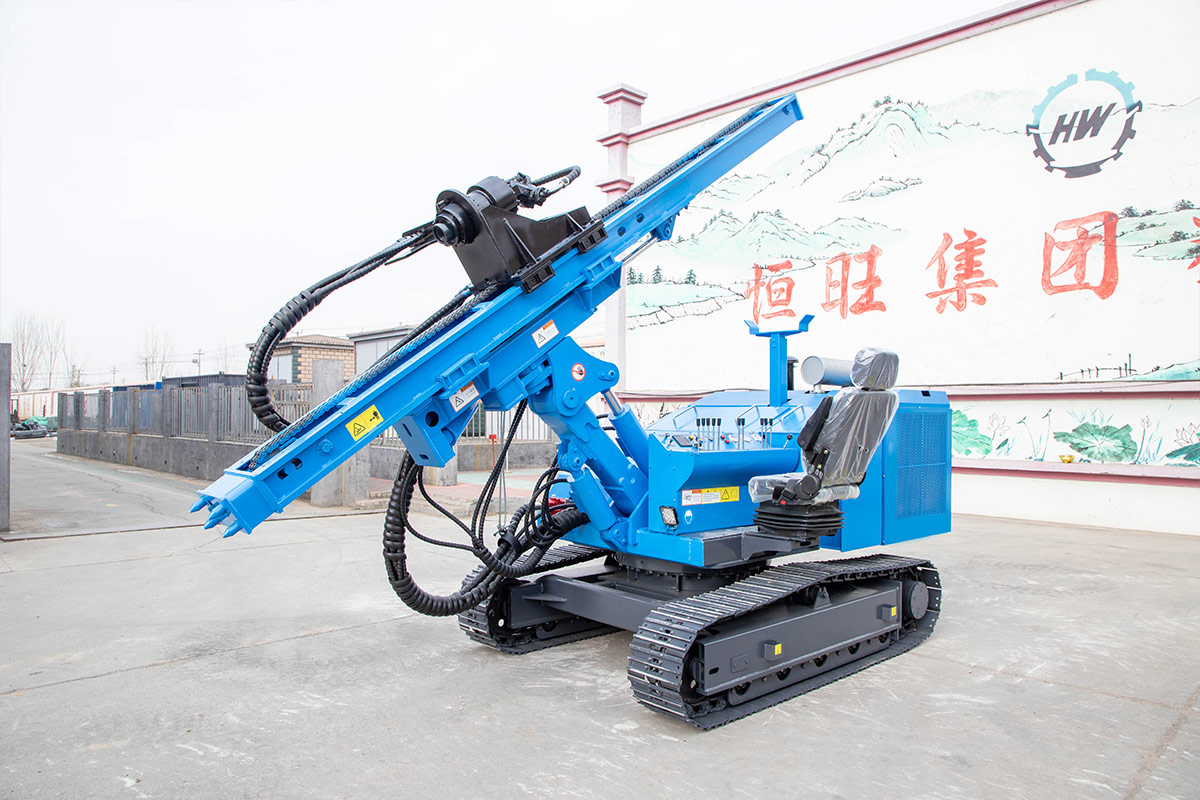

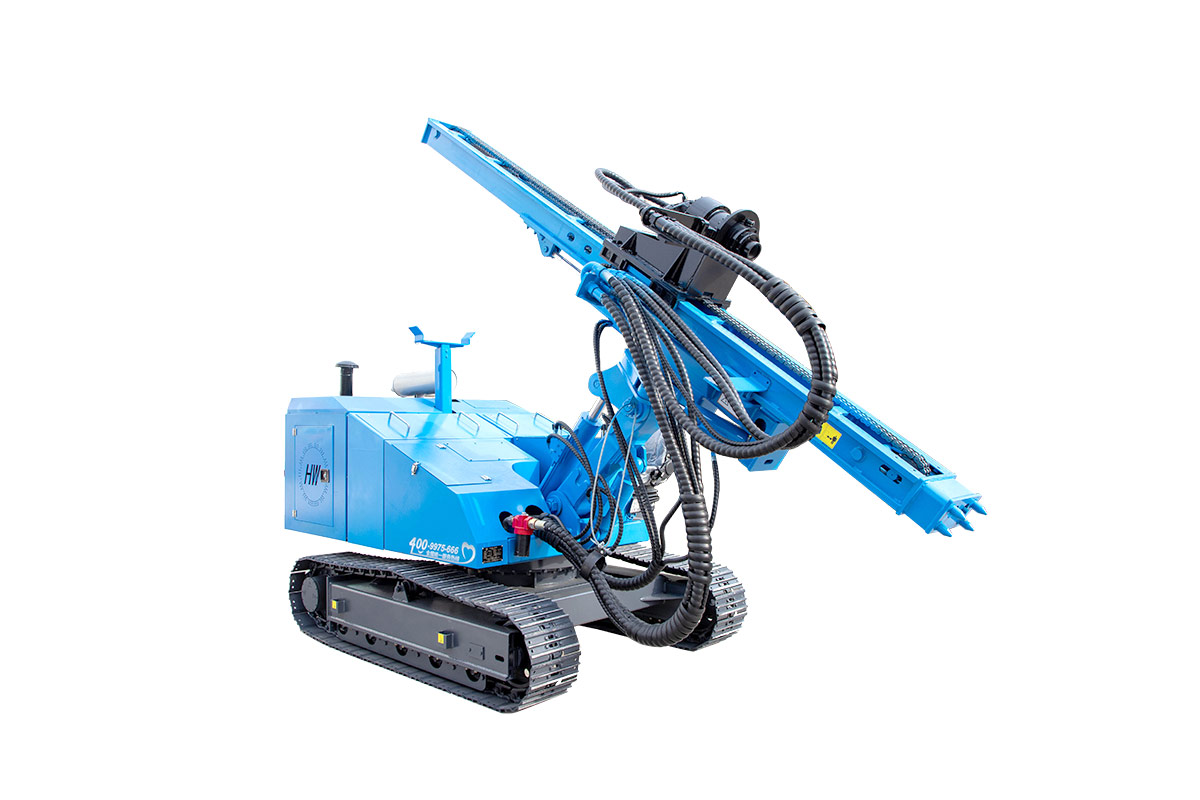

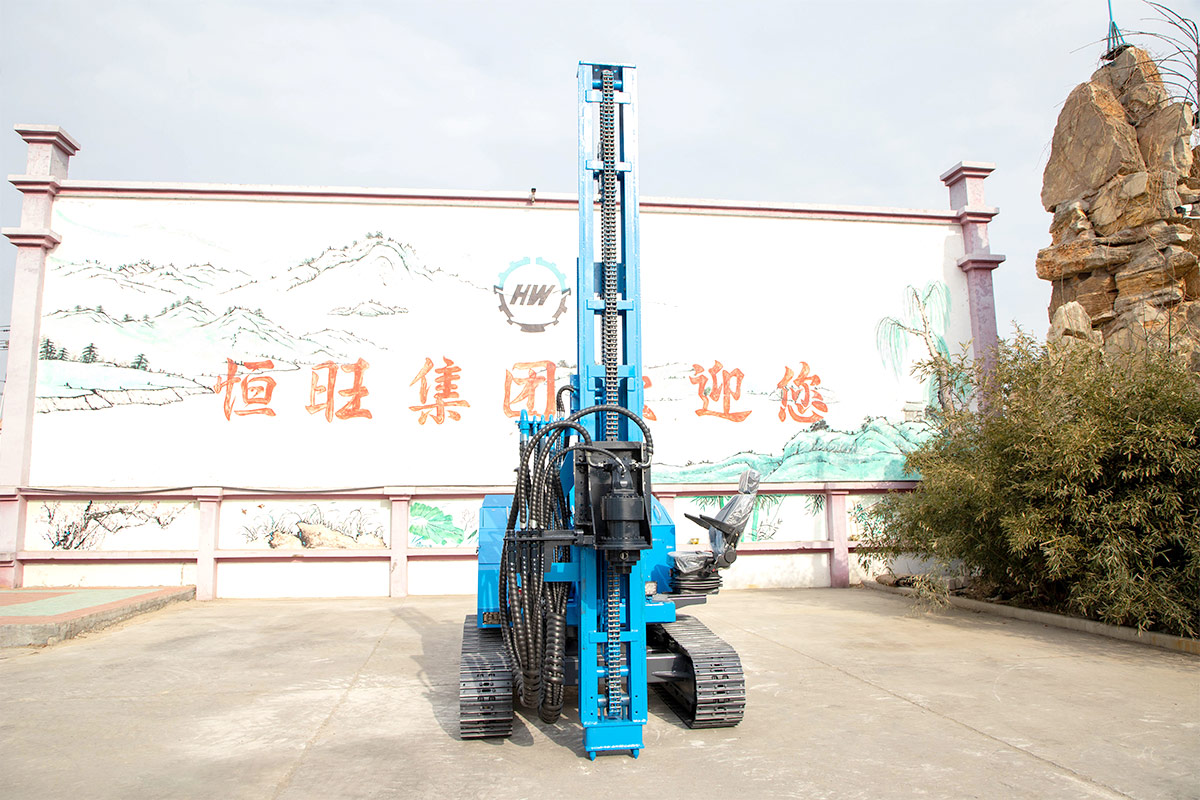

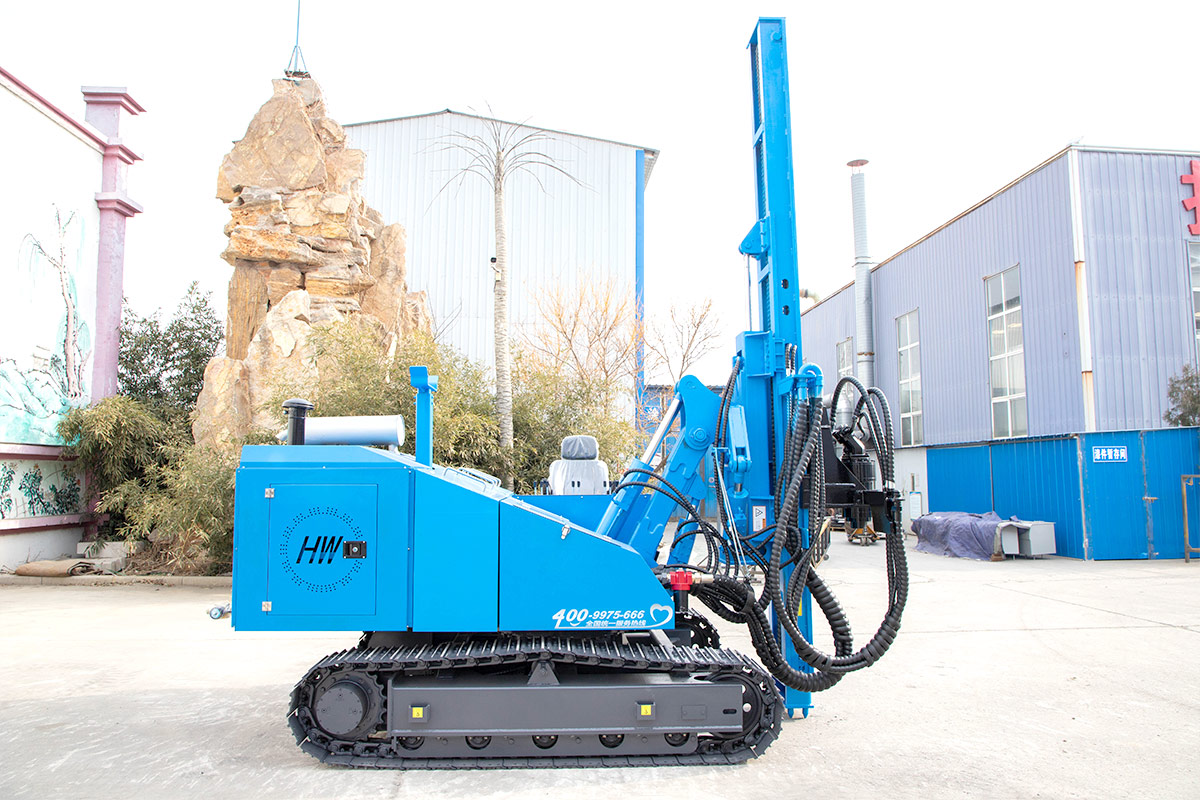

HWL400R Solar Pile Driver
    Pile Length: 4m
    Rotation angle : 360°
    Machine Weight: 7.6T
Back to list

Crazy Engineering Day Sale, submit form to get discounts and coupons on your order

>>> Product Details <<<

HWL400R was originally designed as the early stage piling equipment for photovoltaic power stations. Through R & D and upgrading, it can also be used in piling projects in farms, pastures, orchards, etc.


Main feature:

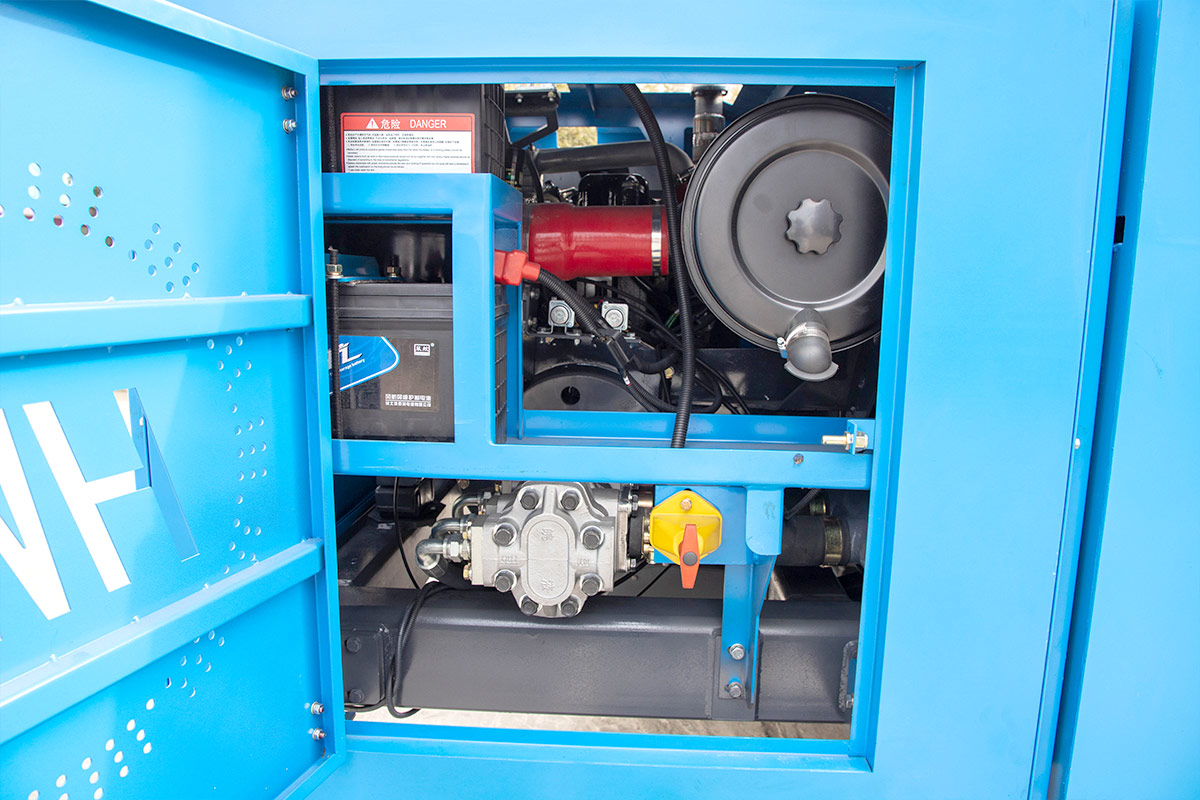

1. Reasonable power engine can save fuel while ensuring stable and high performance;

2. High-quality hydraulic components and strict assembly process ensure the high efficiency of the hydraulic system;

3. Using international high-standard raw materials to ensure the stability of the car body;

4. The design has an industrial aesthetic.


Parameter:

Here are the key specifications for this product model. Want more details? Please contact us!

ModelHWL400R
Work quality7.6T
Engine brandYUCHAI
Rated power/Speed85KW/2600RPM
Max torque/Speed375N · M/1850RPM
Work pressure100Mpa
Hydraulic Hammer Model100
Drill pipe diameter100mm
Chute stroke4100
Shipping size5670*2375*1980
Frame rotation angle360°
Traveling speed3km/h

Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
