TQZ-260 Pneumatic Drill Rig
-
Drilling depth: 260m
Drilling diameter: 130-219mm
Engine Power: 40Hp
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<

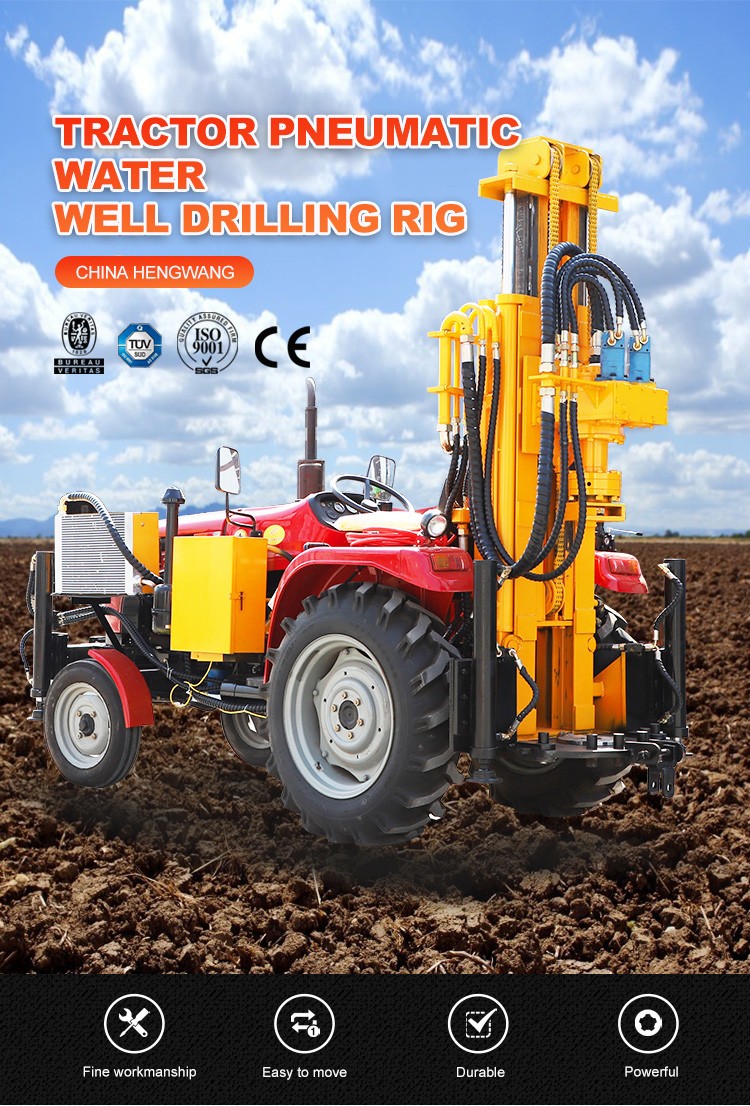

This product is an integrated drilling equipment by combining tractor and pneumatic water well drilling rig, which is easy to walk and combined the air compressor.
Make the construction more convenient and efficient.

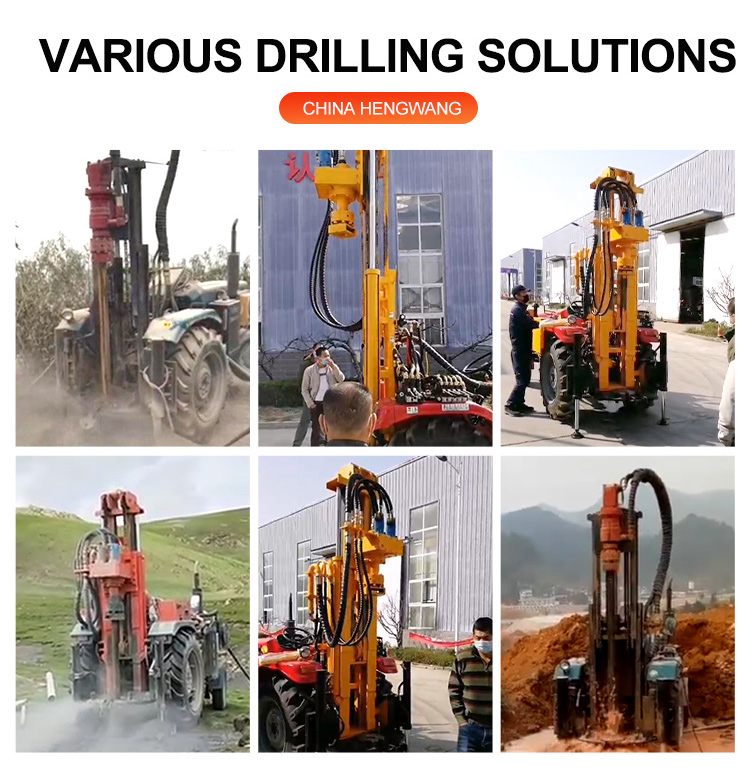

Suitable for industrial, civil drilling and geothermal drilling projects.
The main feature of pneumatic drilling rigs is strong power, and the efficiency is 10 to 15 times that of ordinary hydraulic wells.

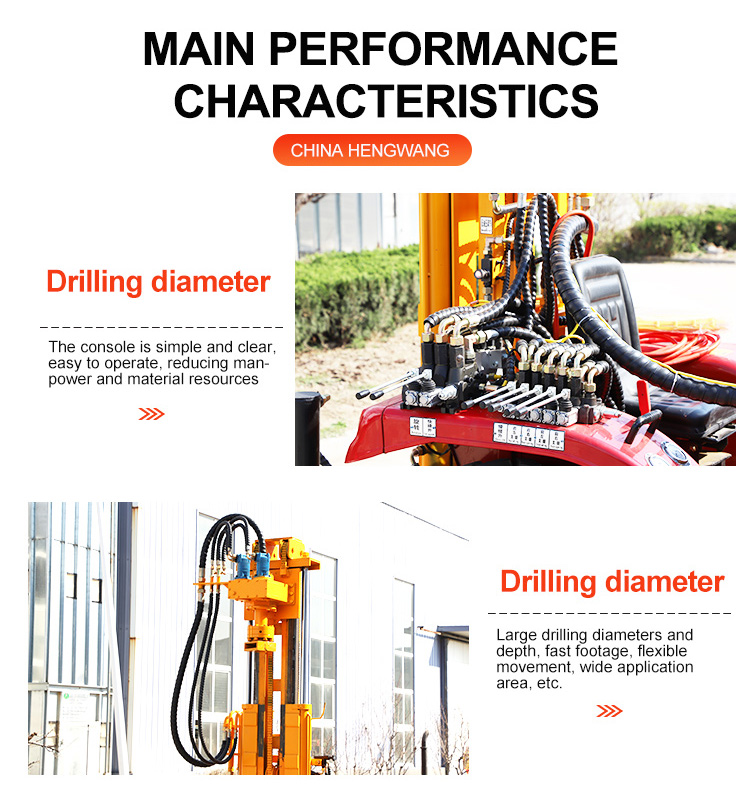

Main features:
1. High power, fast drilling speed and low unit fuel consumption;
2. Large aperture, up to 245~294mm;
3. Tracked chassis improves off-road performance.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us.
Model | TQZ-260 |
Overall weight (T) | 4.2 |
Dimension (mm) | 3400*1500*2200 |
Drilling diameter (mm) | 130-219 |
Drilling depth (m) | 260 |
One-time advance length of the drill (mm) | 1500 |
Traveling speed (km/h) | 30 |
Climbing capacity (max) | 25° |
Minimum ground clearance (mm) | 250 |
Working Air Pressure (mpa) | 1.45-2.5 |
Air consumption (m3/min) | 15-27 |
Main machine power (HP) | 40 |
Rotation speed (pm) | 38 - 80 |
Rotary torque (Nm) | 4000—5000 |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
