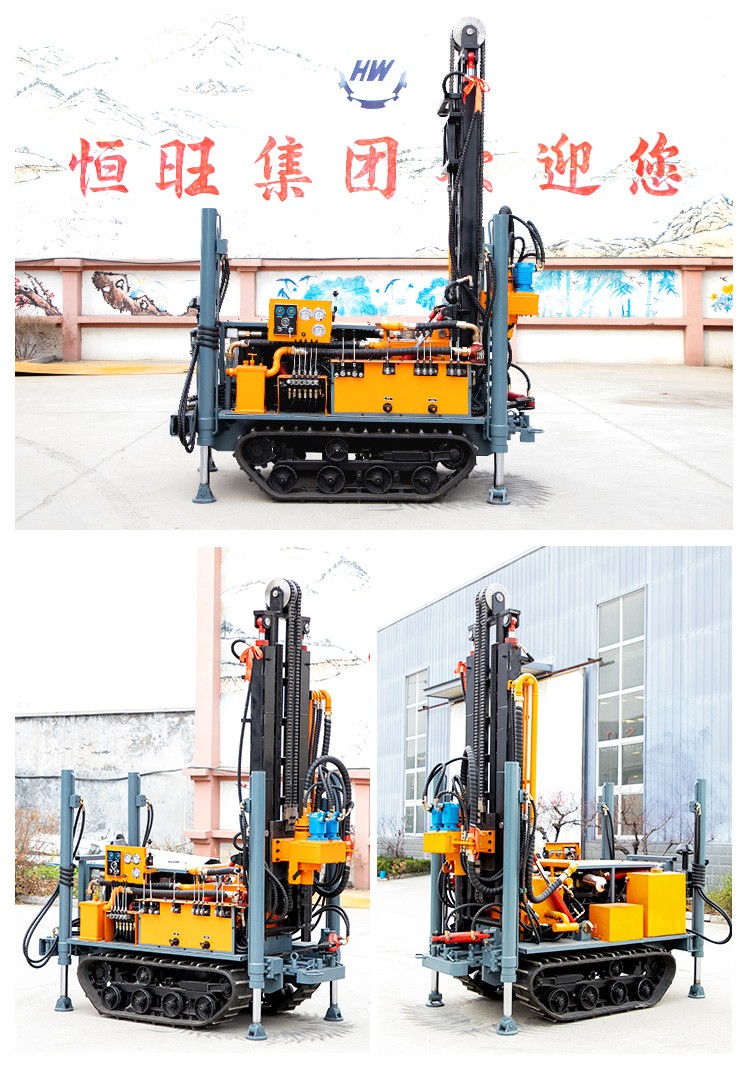

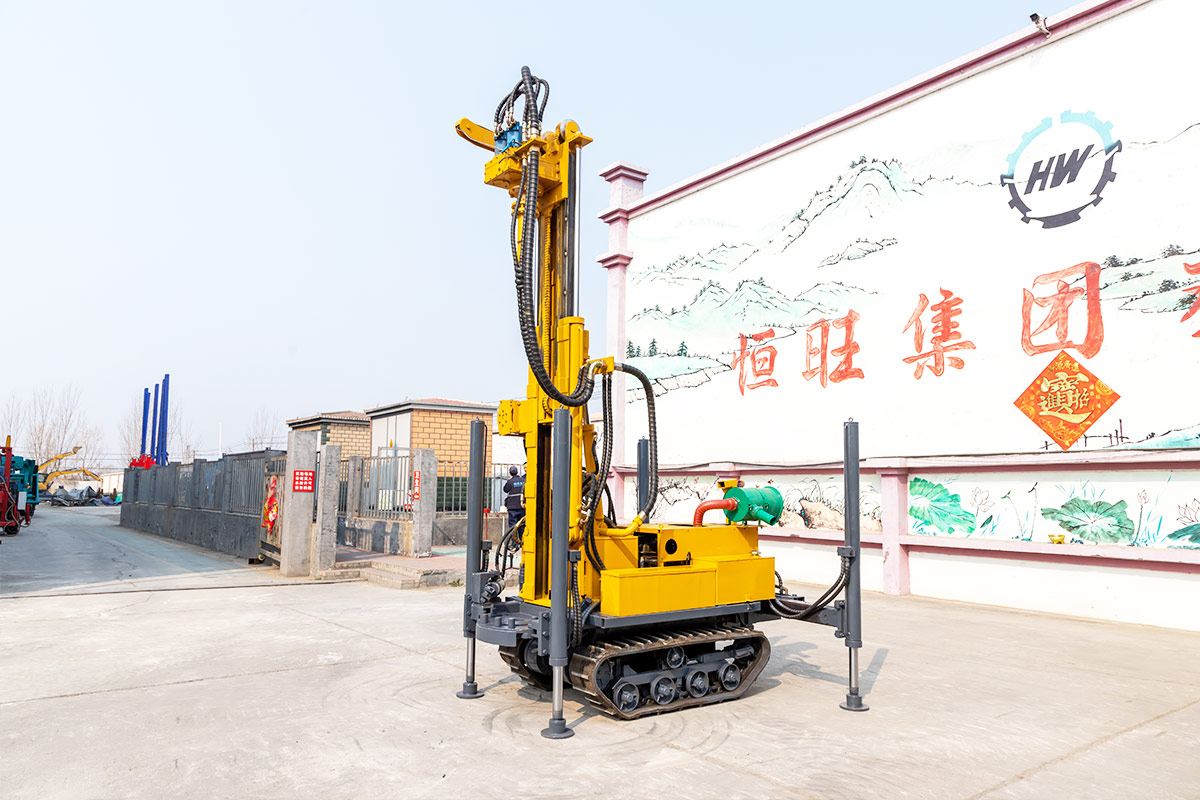

HQZ-160L Pneumatic Drill Rig
-
Drilling depth: 160m
Drilling diameter: 138-203mm
Engine Power: 73Kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<
HengWang HQZ pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.Suitable for industrial, civil drilling and geothermal drilling projects.The main feature of pneumatic drilling rigs is strong power, and the efficiency is 10 to 15 times that of ordinary hydraulic wells.

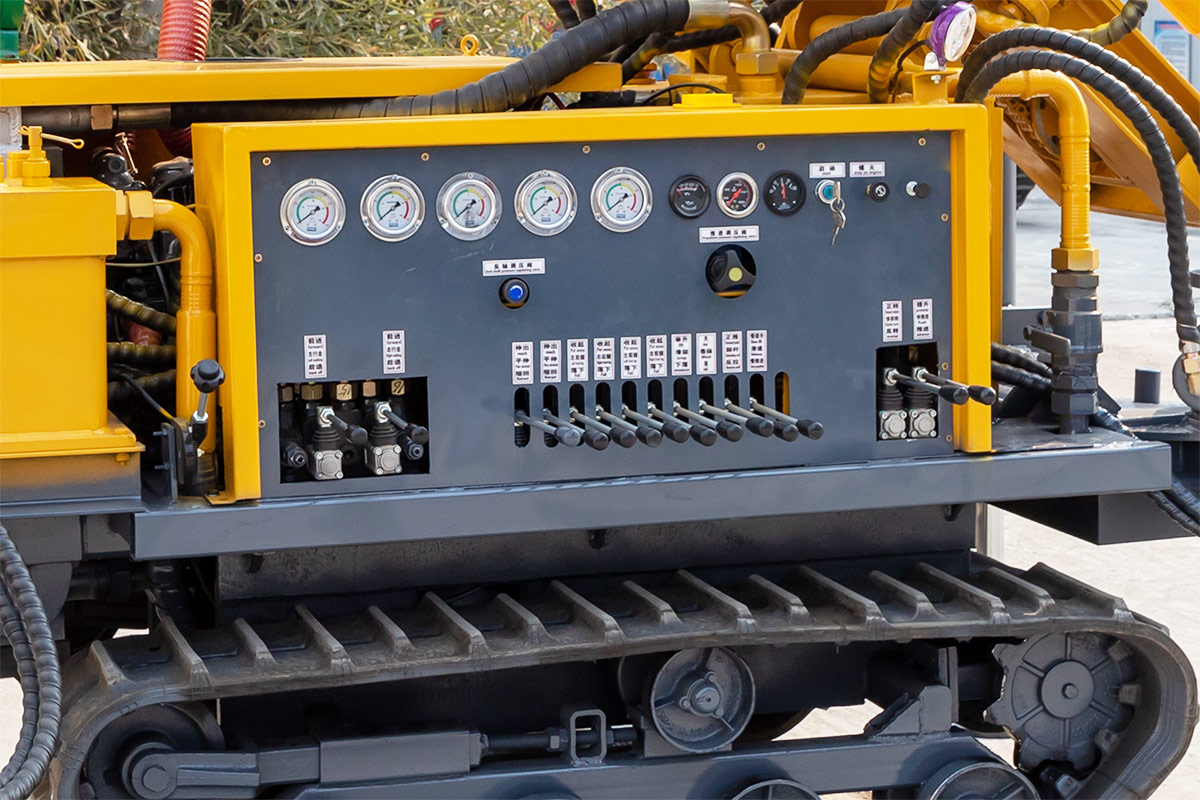

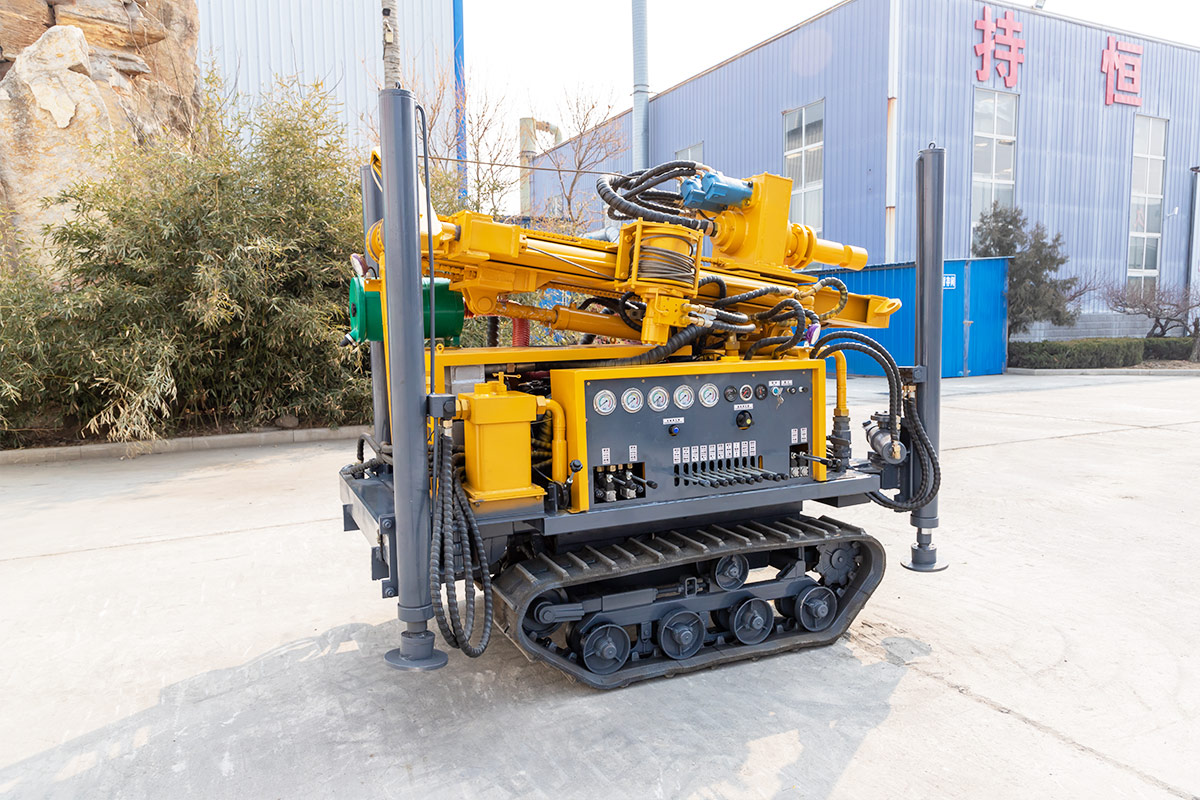

Integerated operation

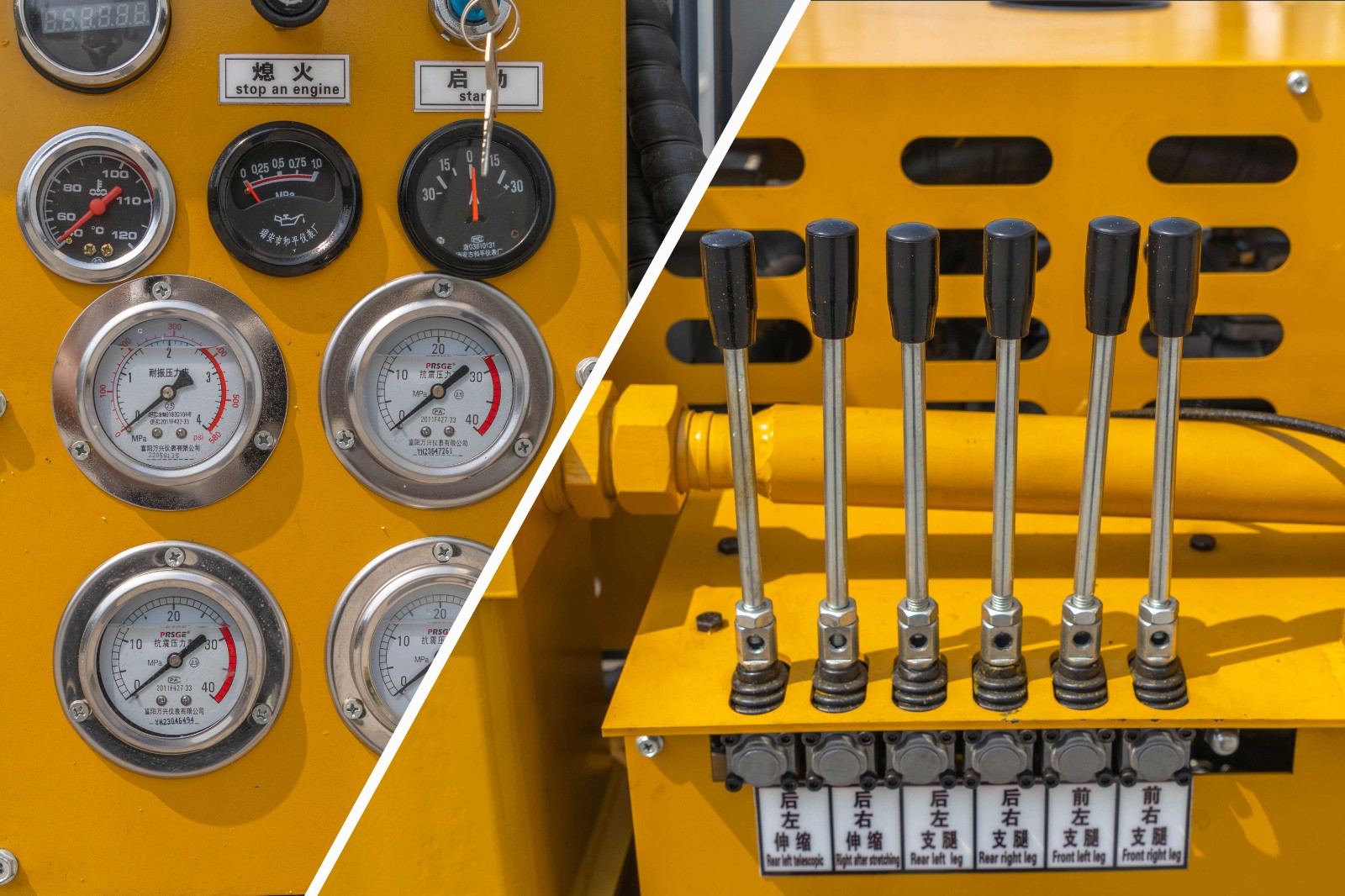

The vehicle control joystick and instrument integrated platform are simple to operate and reduce labor costs.

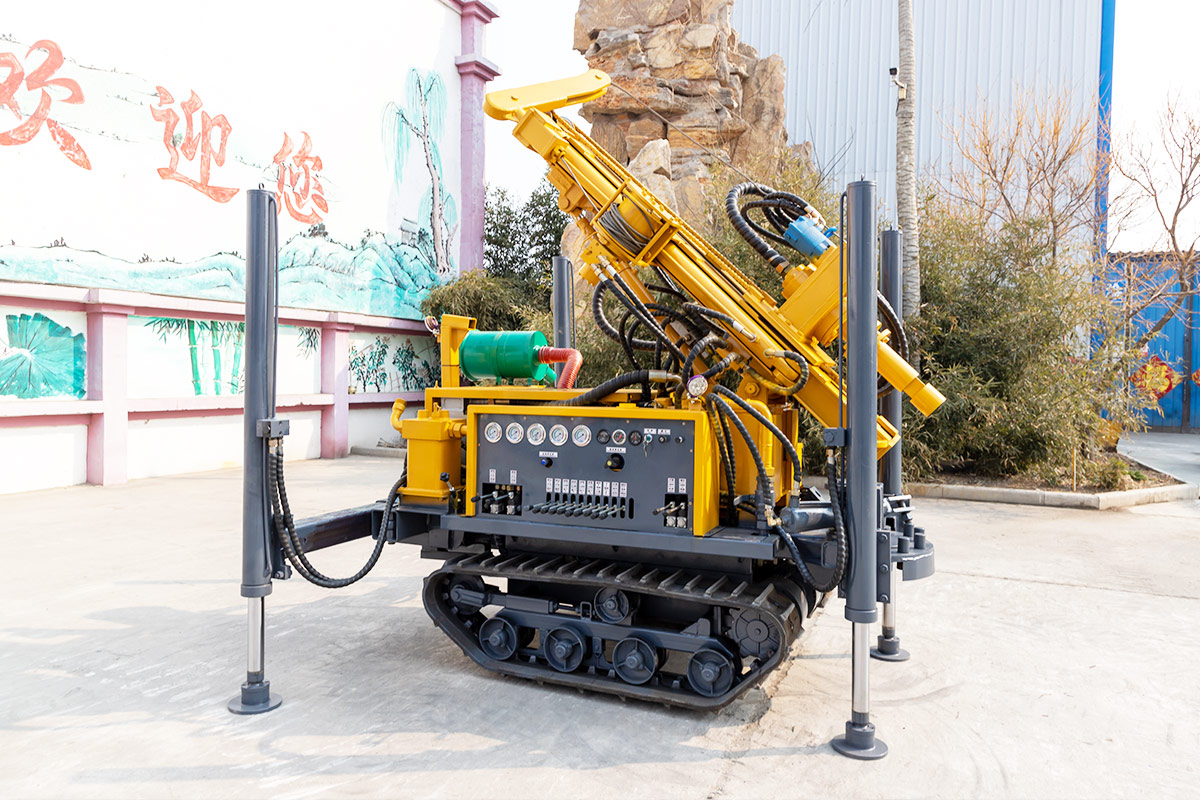

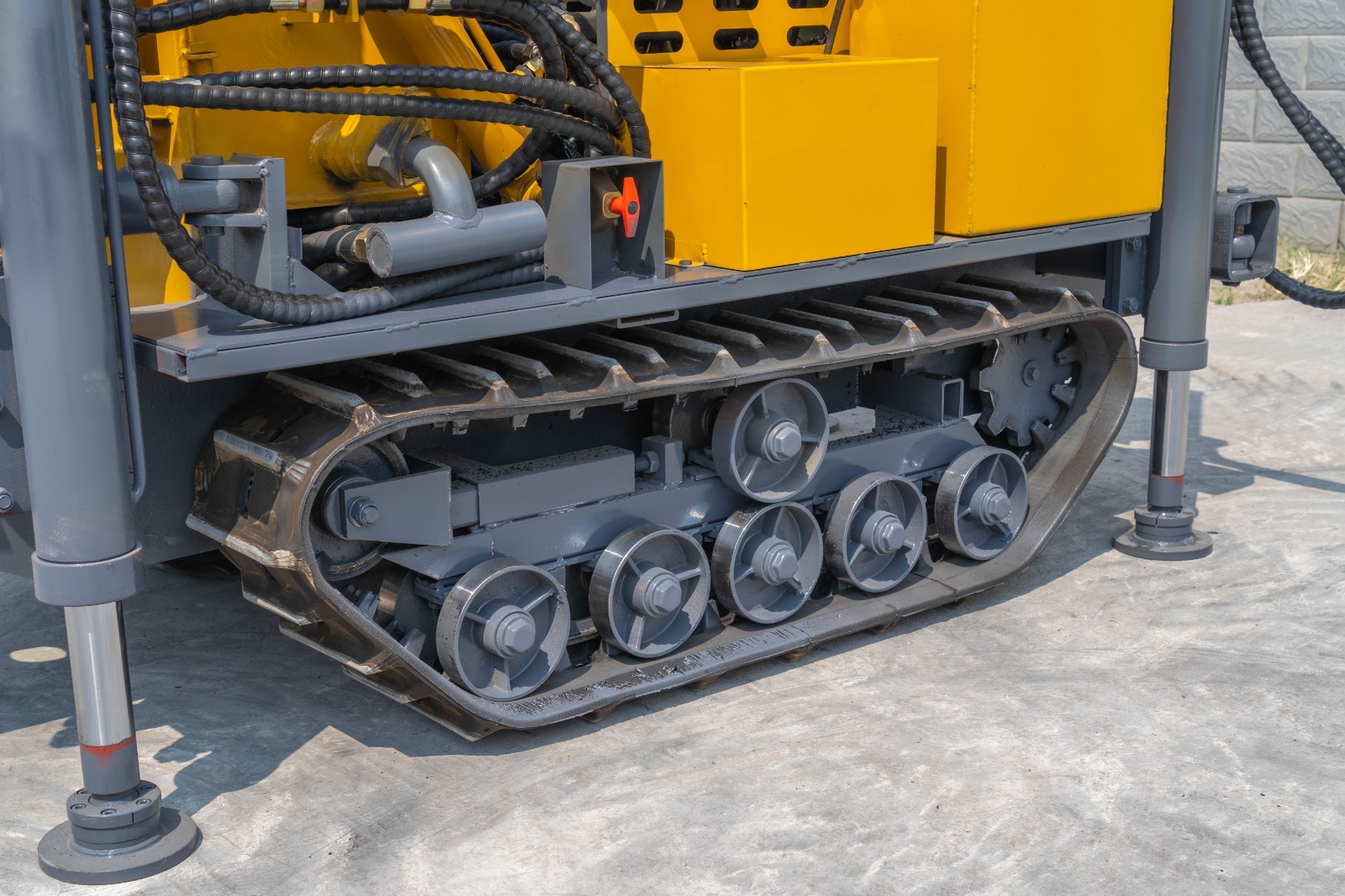

Track chassis
The all-terrain crawler chassis increases the stability of the whole machine while increasing the scope of application of the drilling rig.

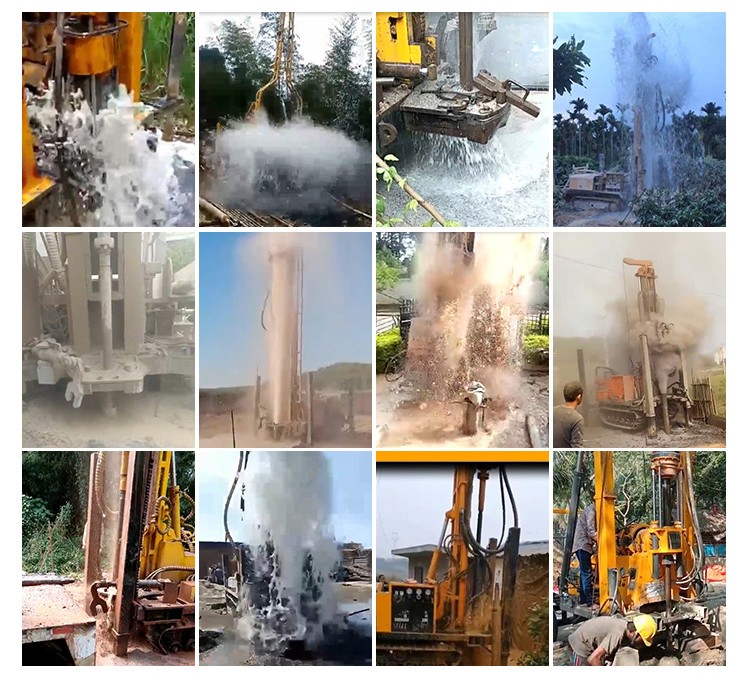

User feedback
Main features:
1. High power, fast drilling speed and low unit fuel consumption;
2. Large aperture, up to 245~294mm;
3. Tracked chassis improves off-road performance.
Usually one well can be drilled in a day.
Parameter:
| Model | HQZ160L |
| Drill Mast (m) | 2 |
| Drilling diameter (mm) | 138-203 |
| Drilling depth (m) | 160 |
| one-time advance length (m) | 2 |
| Walking Speed(km/h) | 2.5 |
| Gradeability | 30 |
| Engine brand | Yuchai |
| Main motor power | 73kw |
| Drill pipe diameter (mm) | 76/89 |
| Drill pipe length (m) | 1.0/1.5/2.0 |
| Lifting force (T) | 12 |
| Rotating speed (rpm) | 50-110 |
| Rotary torque (N.m) | 7800 |
| Dimensions | 2300*1200*1900 |
| Machine weight (T) | 2.6 |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery
