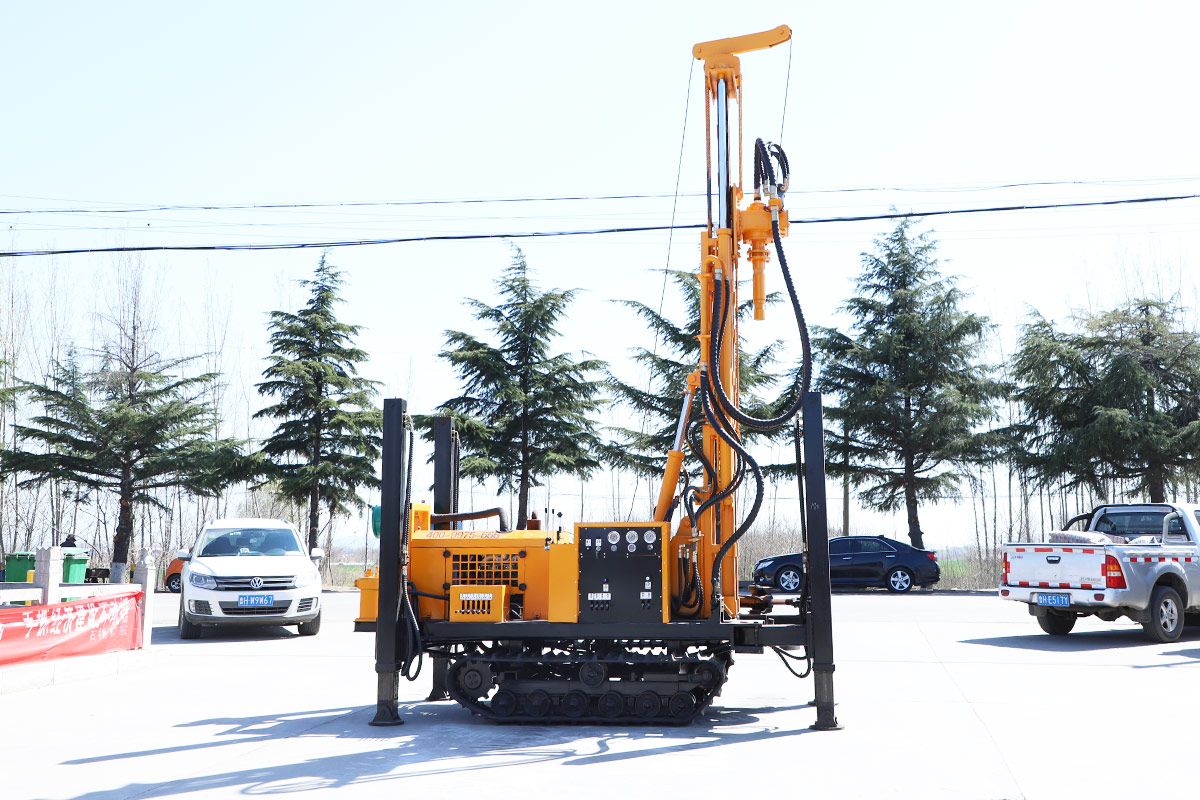

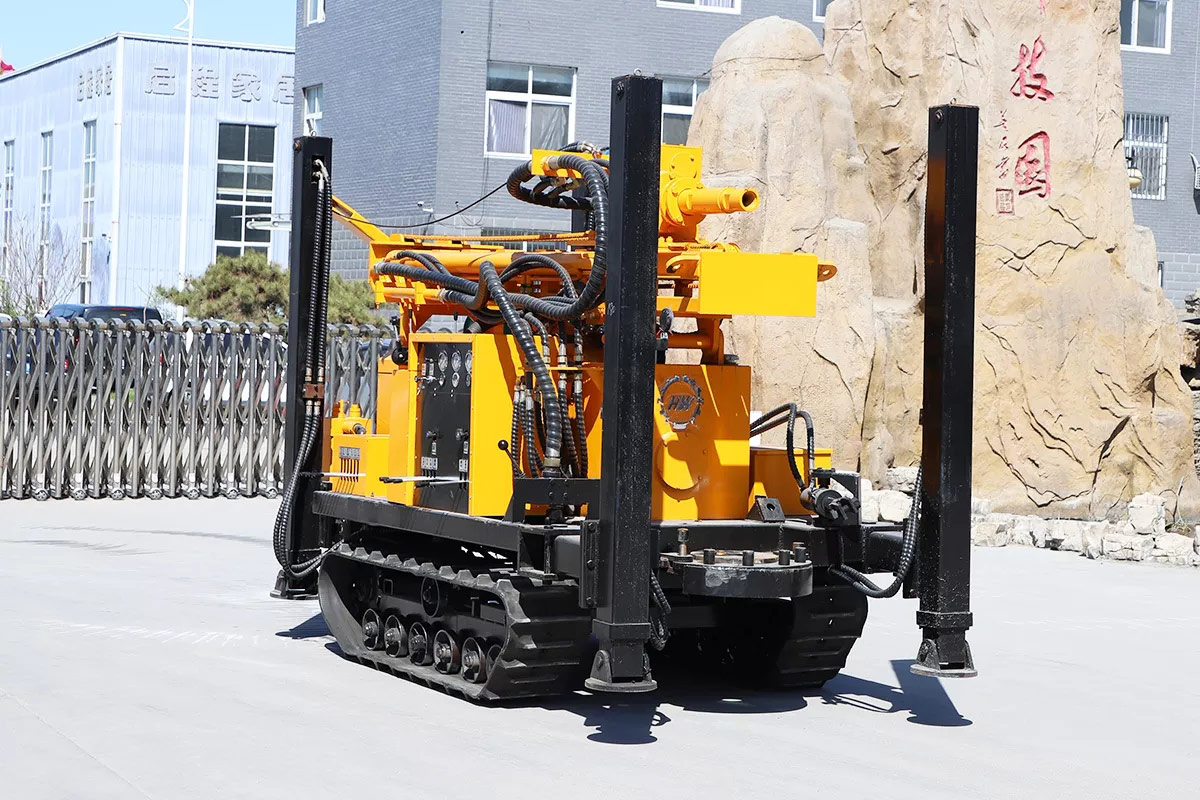

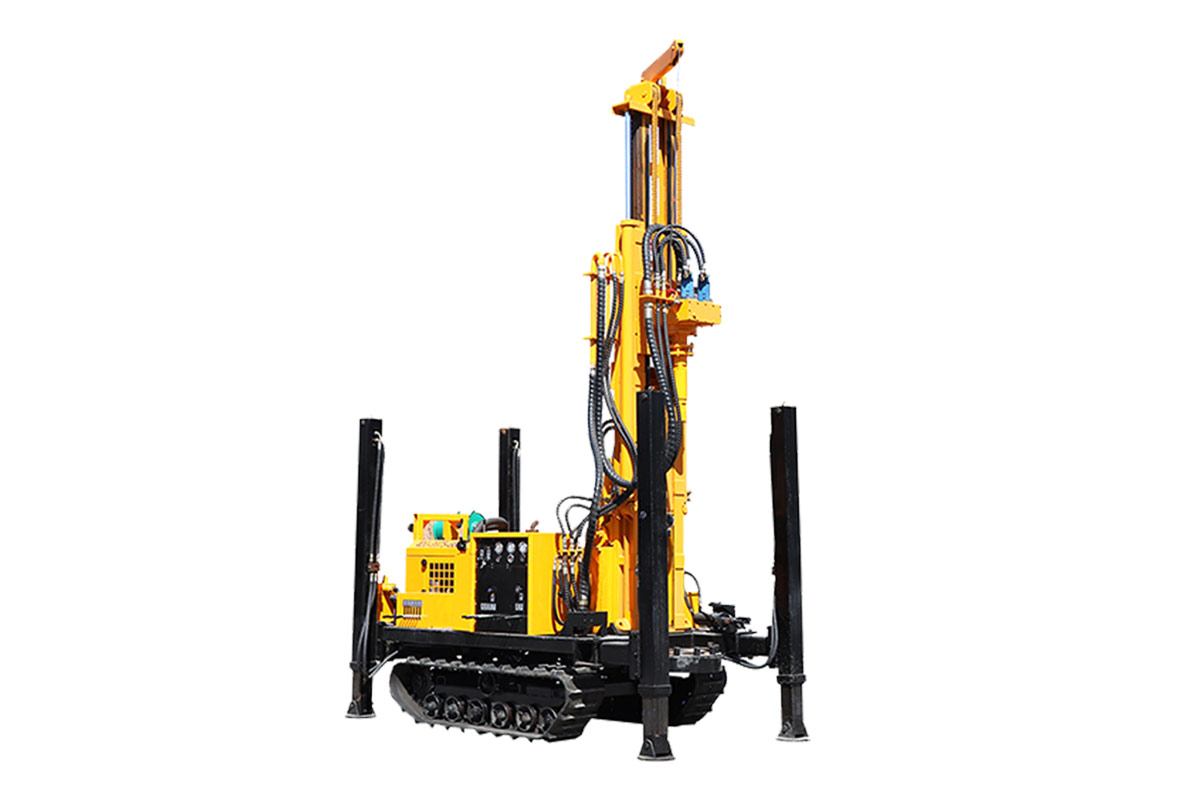

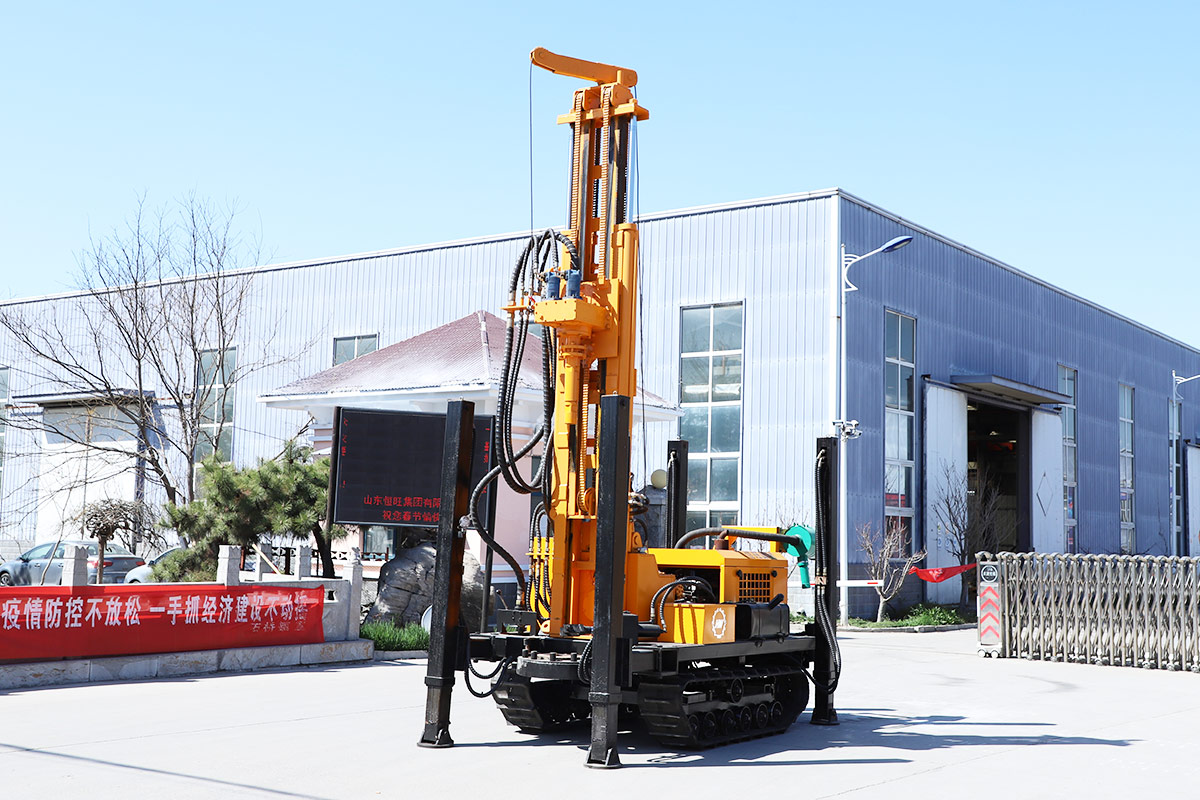

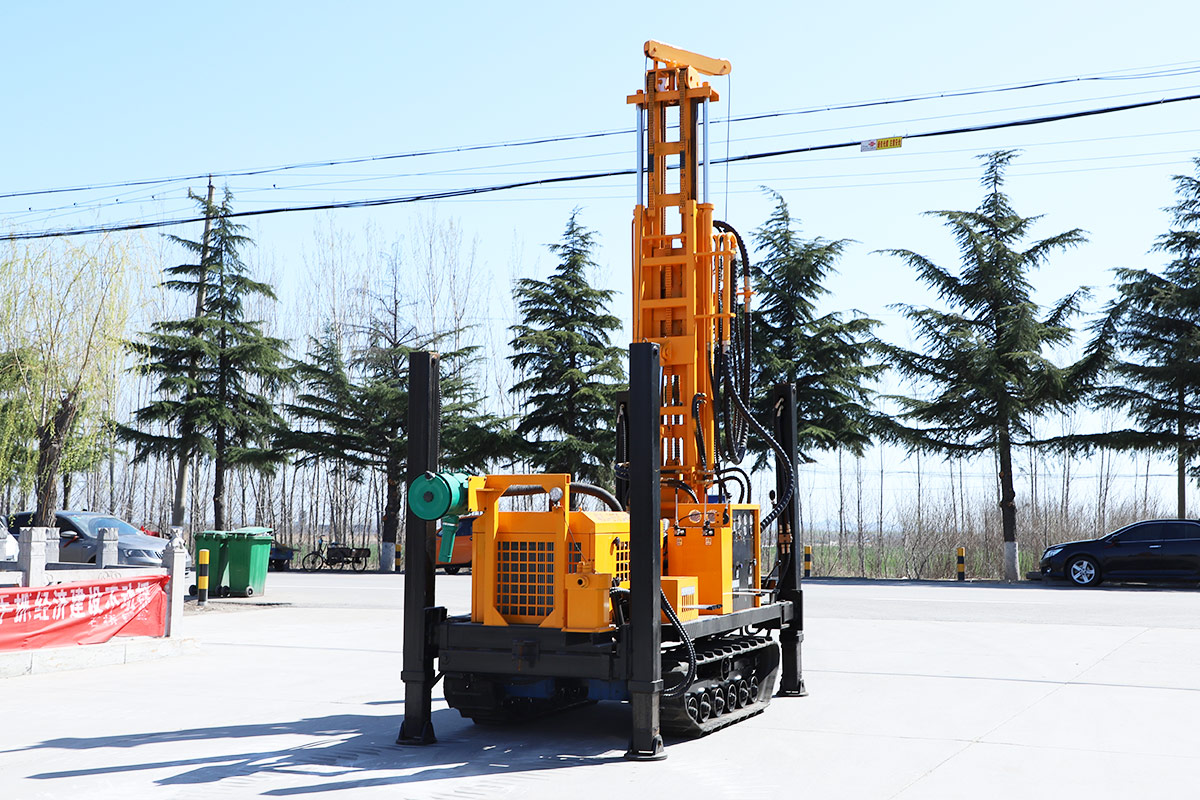

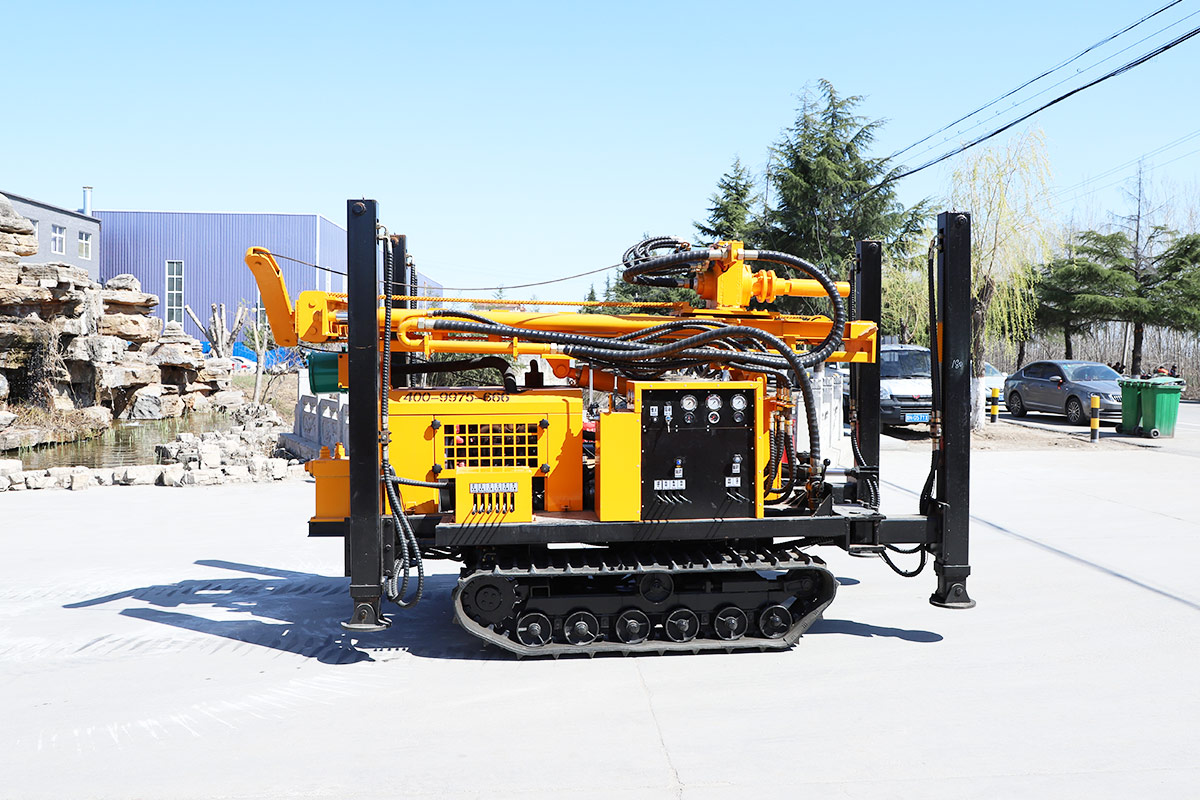

HQZ-220L Pneumatic Drill Rig
-
Drilling depth: 220m
Drilling diameter: 130-254mm
Engine Power: 60Kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<

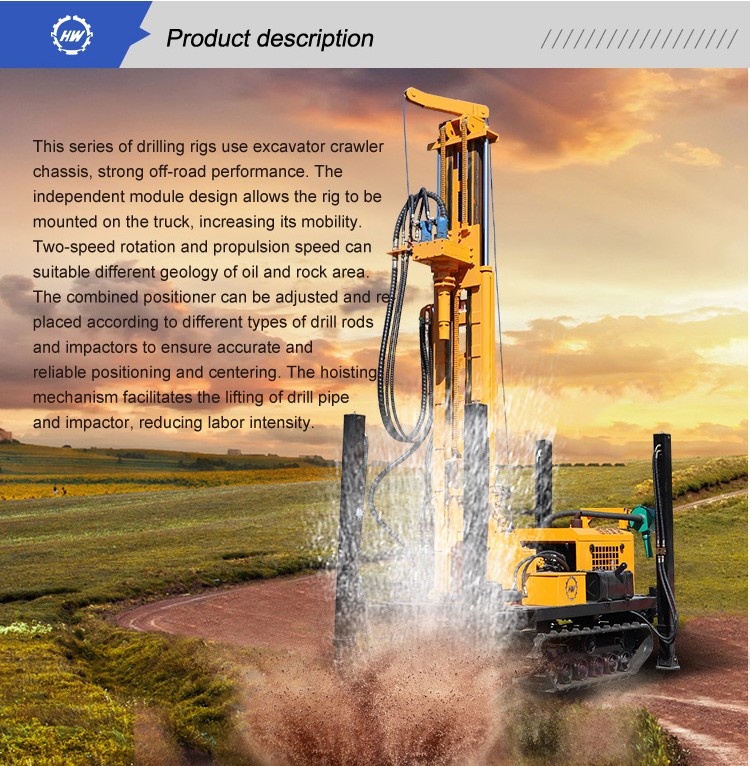

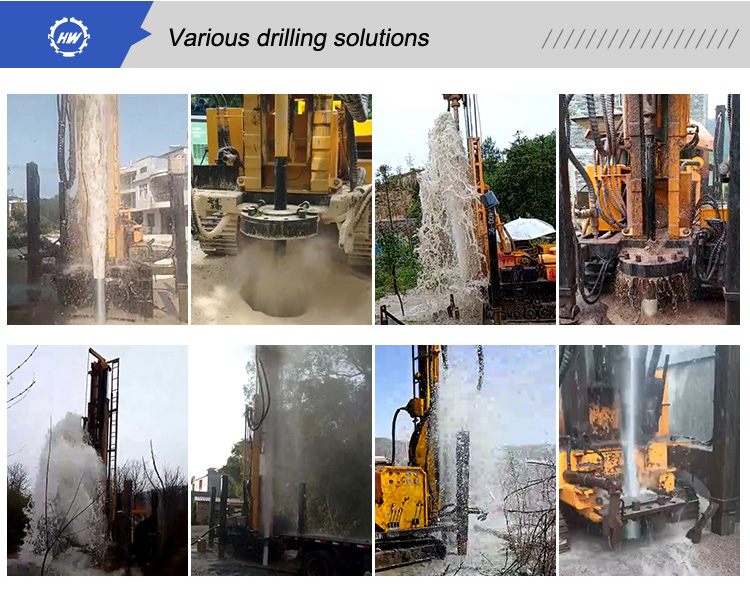

HQZ series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc..
It is especially suitable for water intake in mountainous and rocky strata.
| Model | HQZ220L |
| Drill Mast(m) | 3 |
| Chassis | Rubber track |
| Drilling diameter (mm) | 130-254 |
| Drilling depth (m) | 220 |
| one-time advance length (m) | 3.6 |
| Walking Speed (km/h) | 2.5 |
| Gradeability | 30 |
| Engine brand | Yunnei |
| Main motor power | 60kw |
| Working pressure (mpa) | 1.45-2.5 |
| Air consumption (m³/min) | 17-31 |
| Drill pipe diameter (mm) | 76/89 |
| Drill pipe length (m) | 1.5/2.0/3.0 |
| Lifting force (T) | 15 |
| Rotating speed (rpm) | 45-65 |
| Rotary torque (N.m) | 4000-4600 |
| Dimensions | 3800*1700*2250 |
| Machine weight (T) | 4.5 |
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
