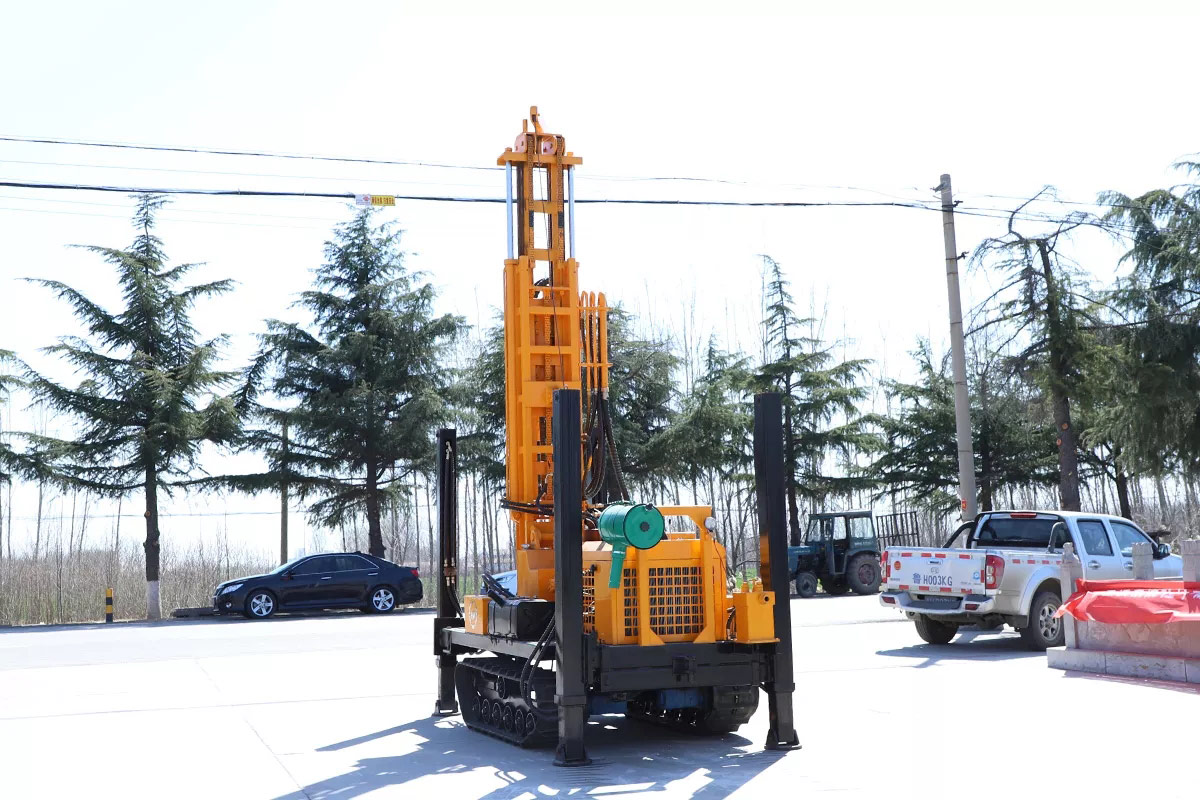

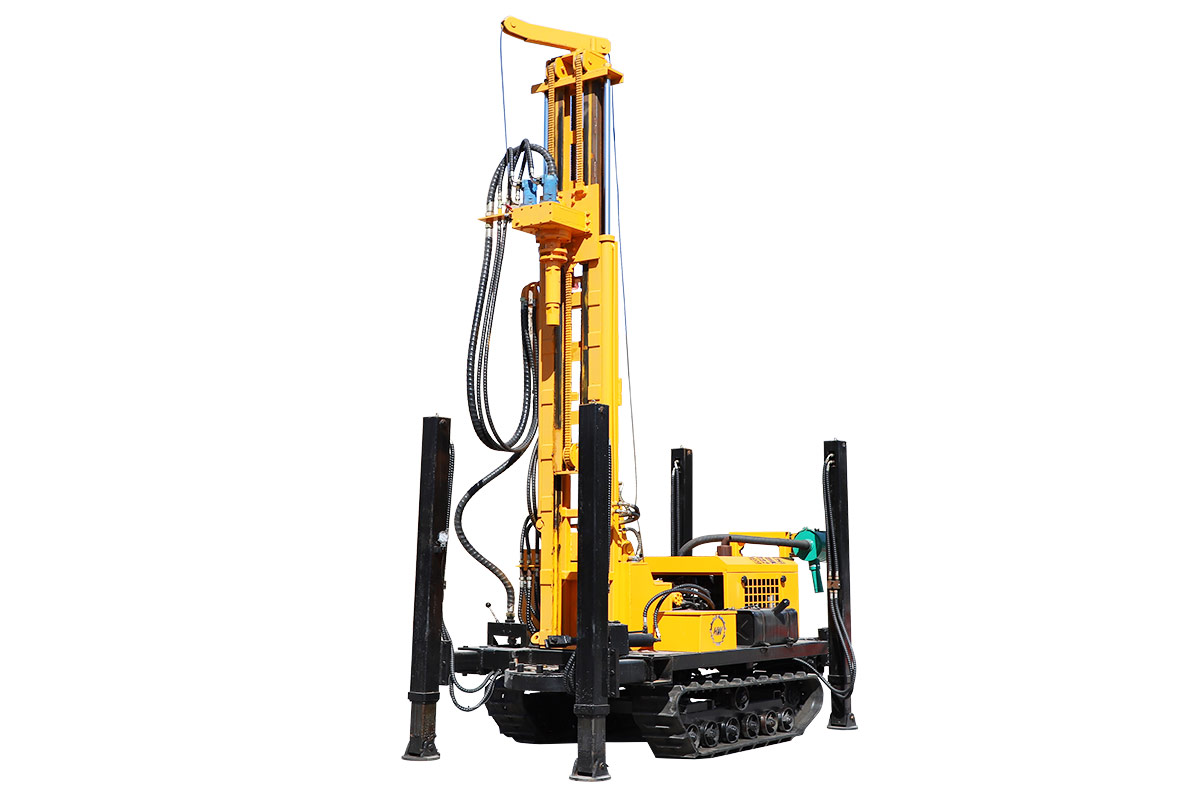

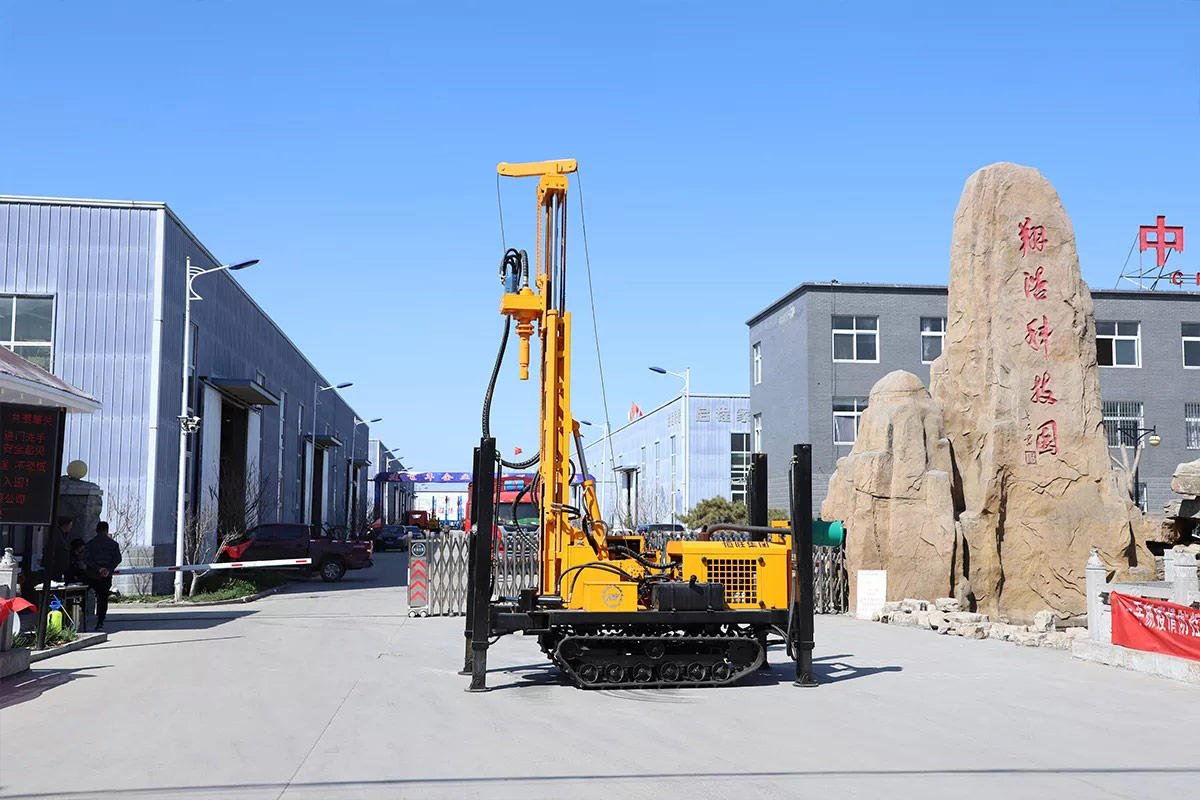

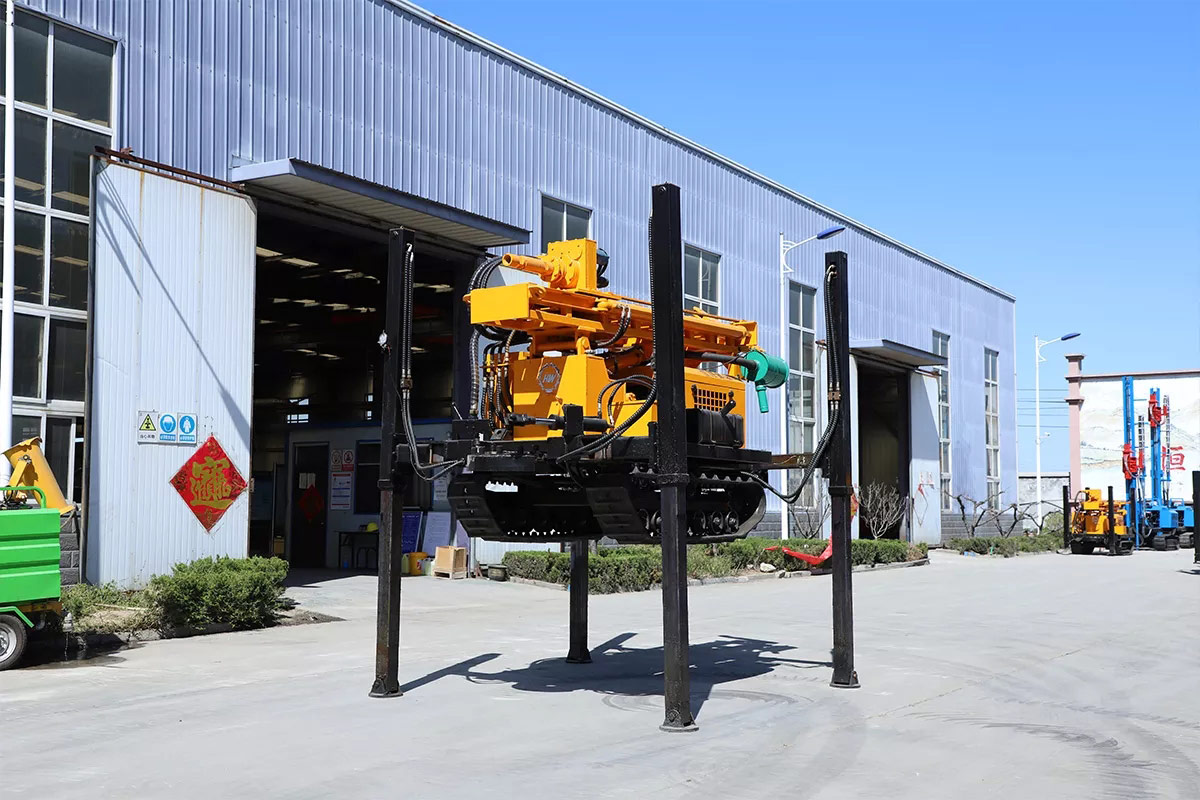

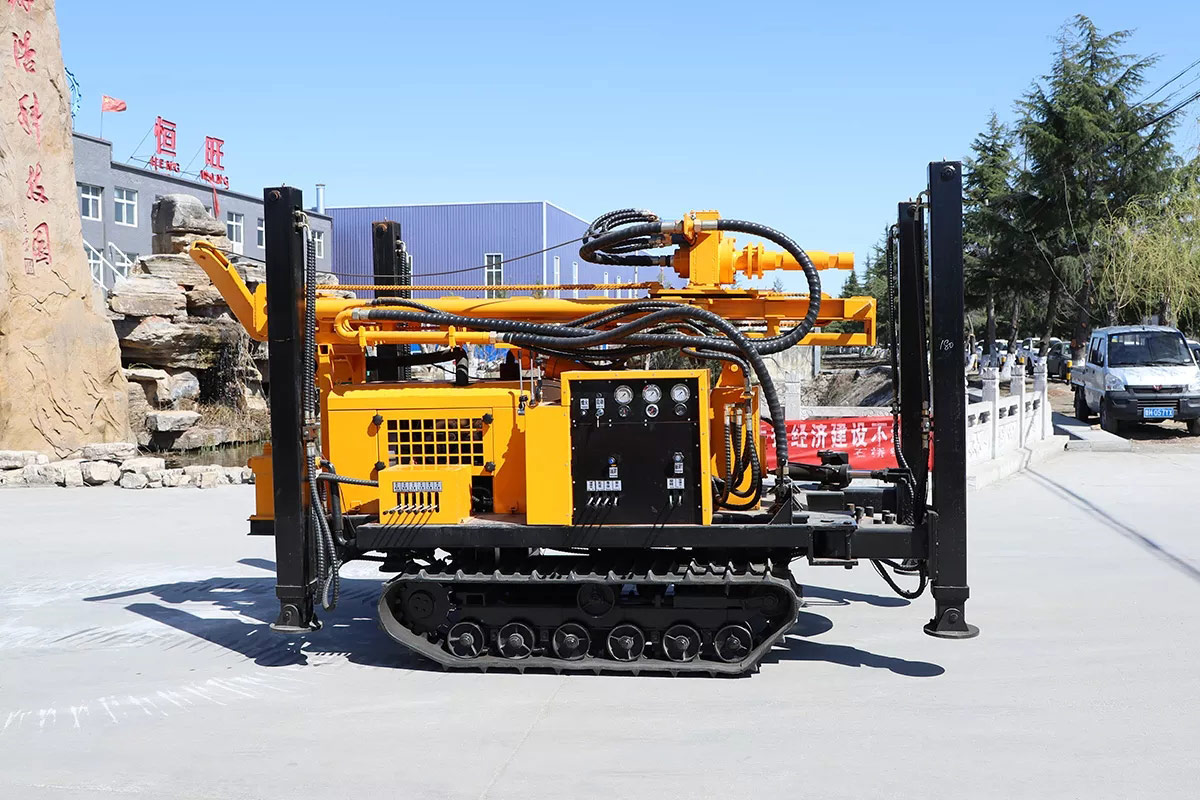

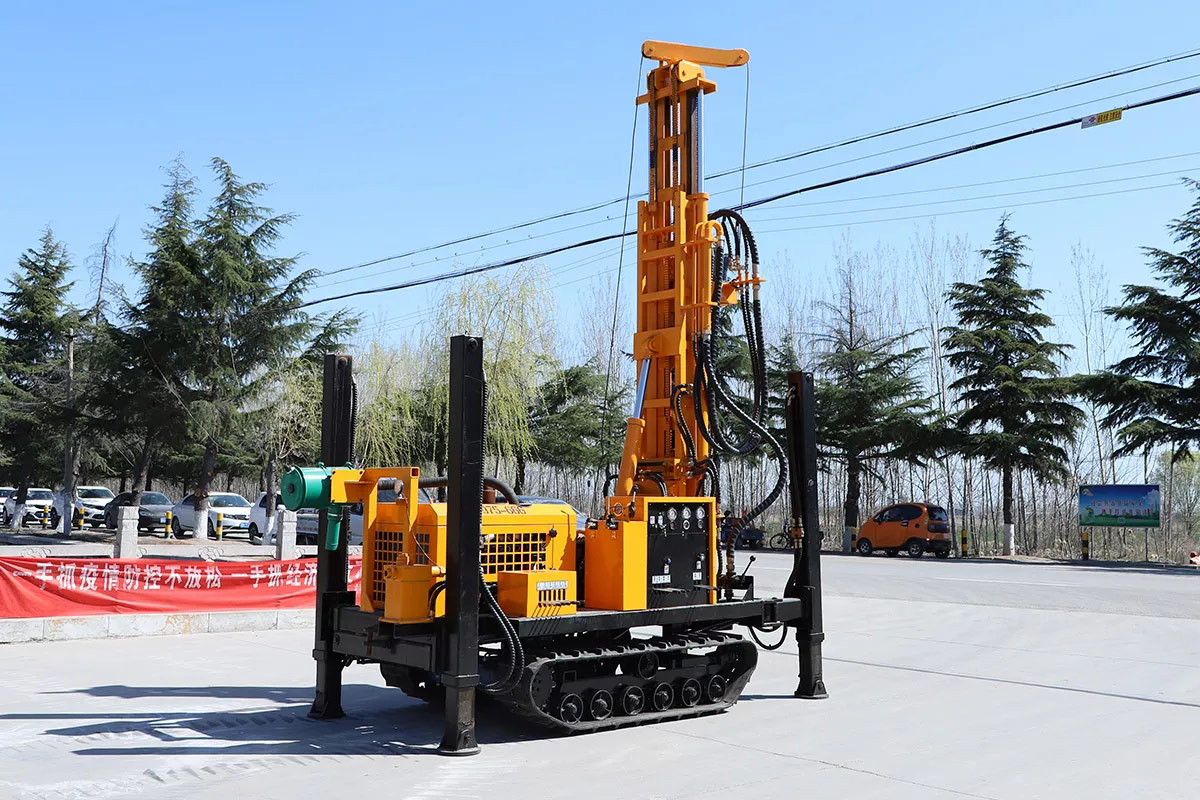

HQZ-180L Pneumatic Drill Rig
-
Drilling depth: 180m
Drilling diameter: 130-254mm
Engine Power: 42Kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<

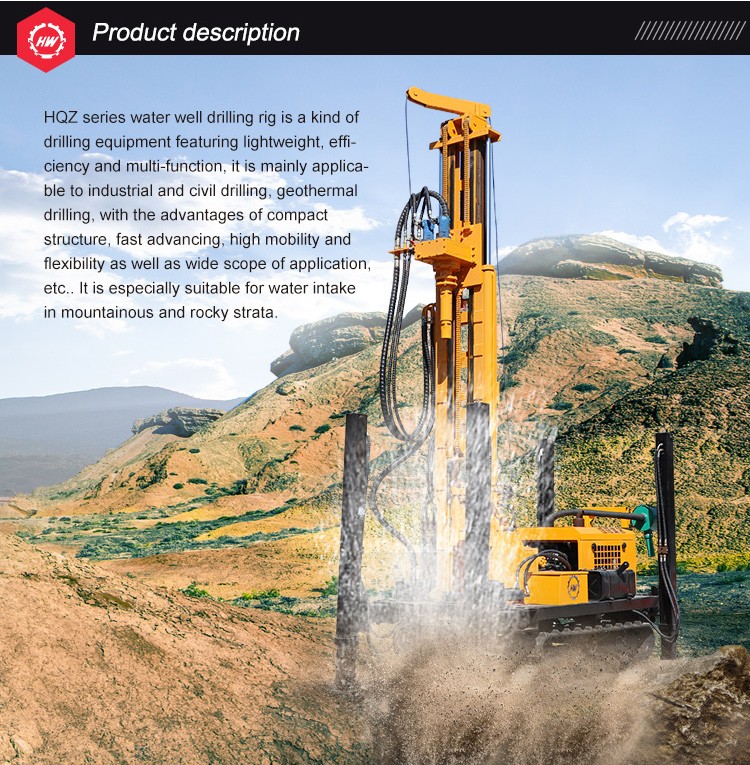

HQZ pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.

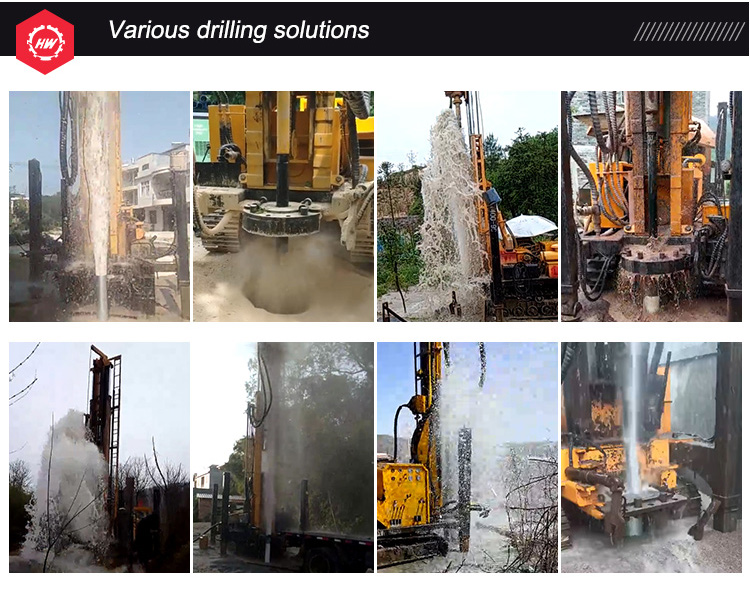

It is suitable for industrial, civil drilling and geothermal drilling projects.
Pneumatic drilling rigs are mainly characterized by strong power, and their efficiency is 10 to 15 times that of ordinary hydraulic water wells.
It usually takes only one day to drill a well.
Main feature:
1. High power, fast drilling speed and low unit fuel consumption;
2. The diameter of the hole is large, up to 245~294mm;
3. Tracked chassis improves off-road performance.
Parameter:
| Model | HQZ180L |
| Drill Mast (m) | 3 |
| Drilling diameter (mm) | 130-254 |
| Drilling depth(m) | 180 |
| one-time advance length (m) | 3.6 |
| Walking Speed (km/h) | 2.5 |
| Gradeability | 30 |
| Engine brand | Yunnei |
| Main motor power | 42kw |
| Working pressure (mpa) | 1.45-2.5 |
| Air consumption (m³/min) | 17-31 |
| Drill pipe diameter (mm) | 76/89 |
| Drill pipe length (m) | 1.5/2.0/3.0 |
| Lifting force (T) | 12 |
| Rotating speed (rpm) | 40-65 |
| Rotary torque (N.m) | 3500-3800 |
| Dimensions | 3500*1700*2250 |
| Machine weight (T) | 4.5 |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
