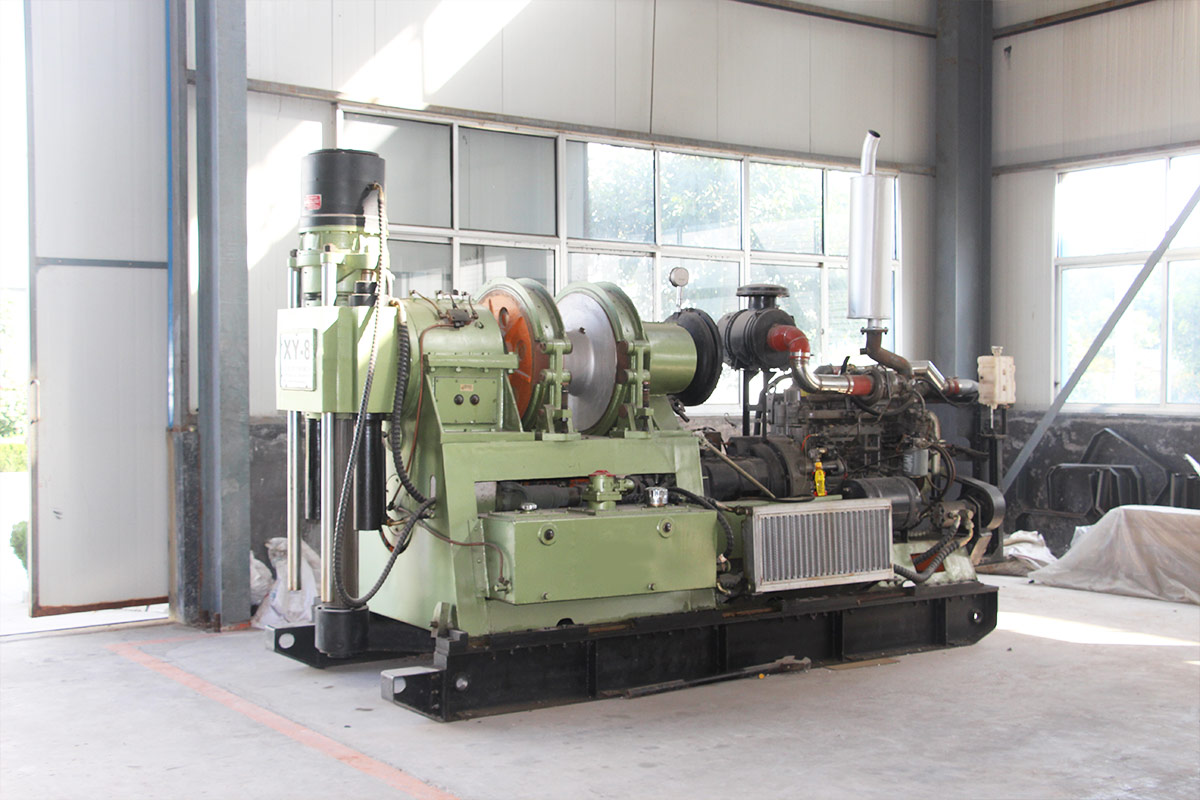

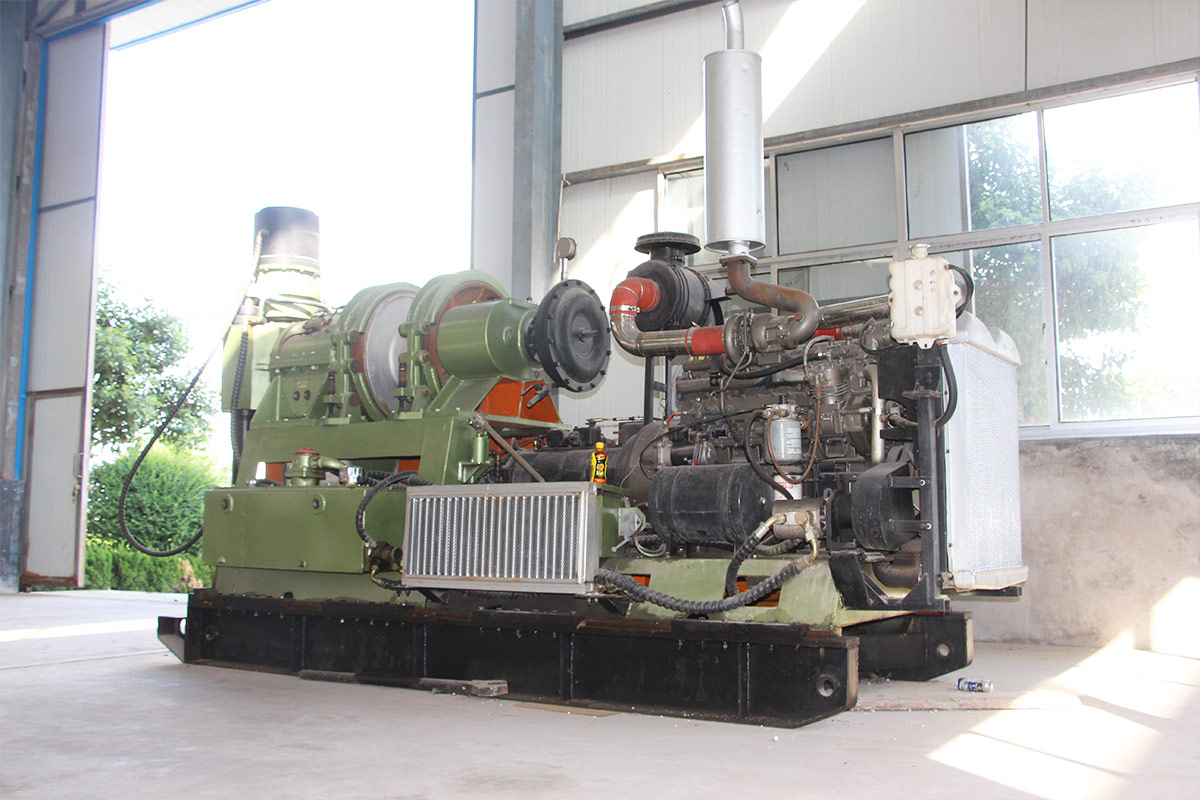

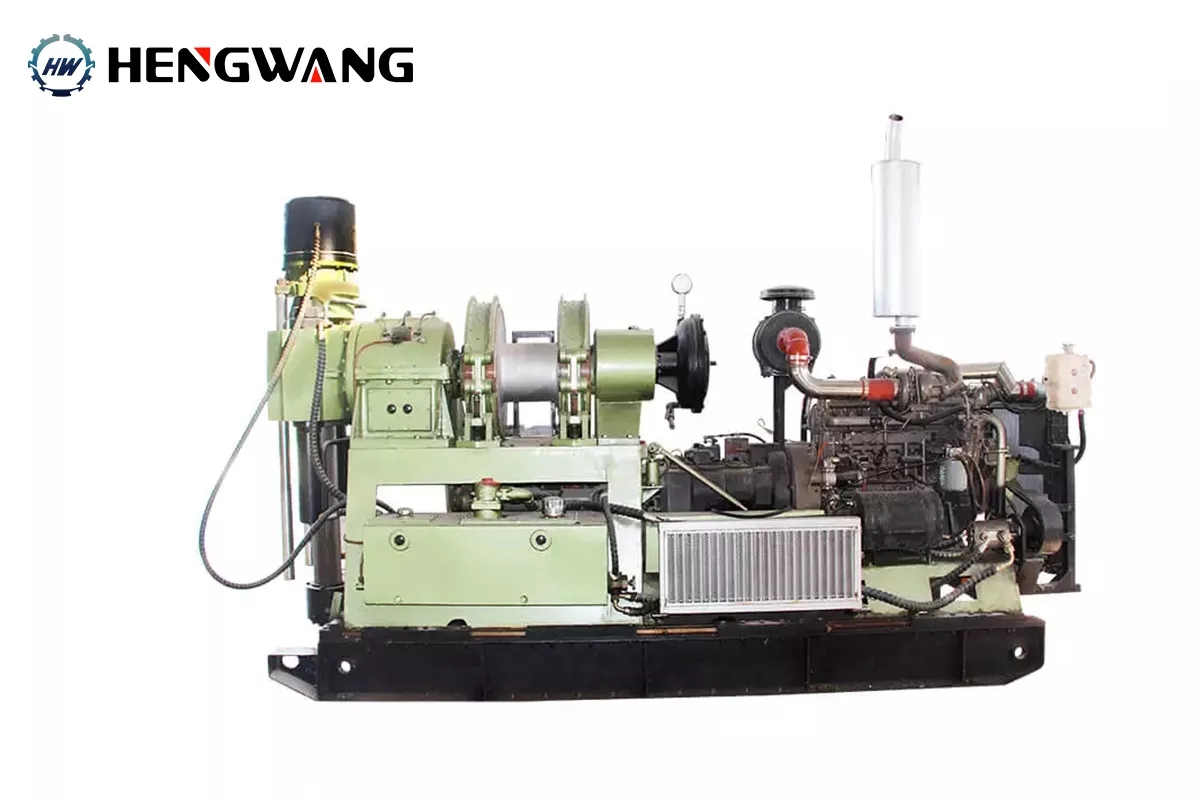

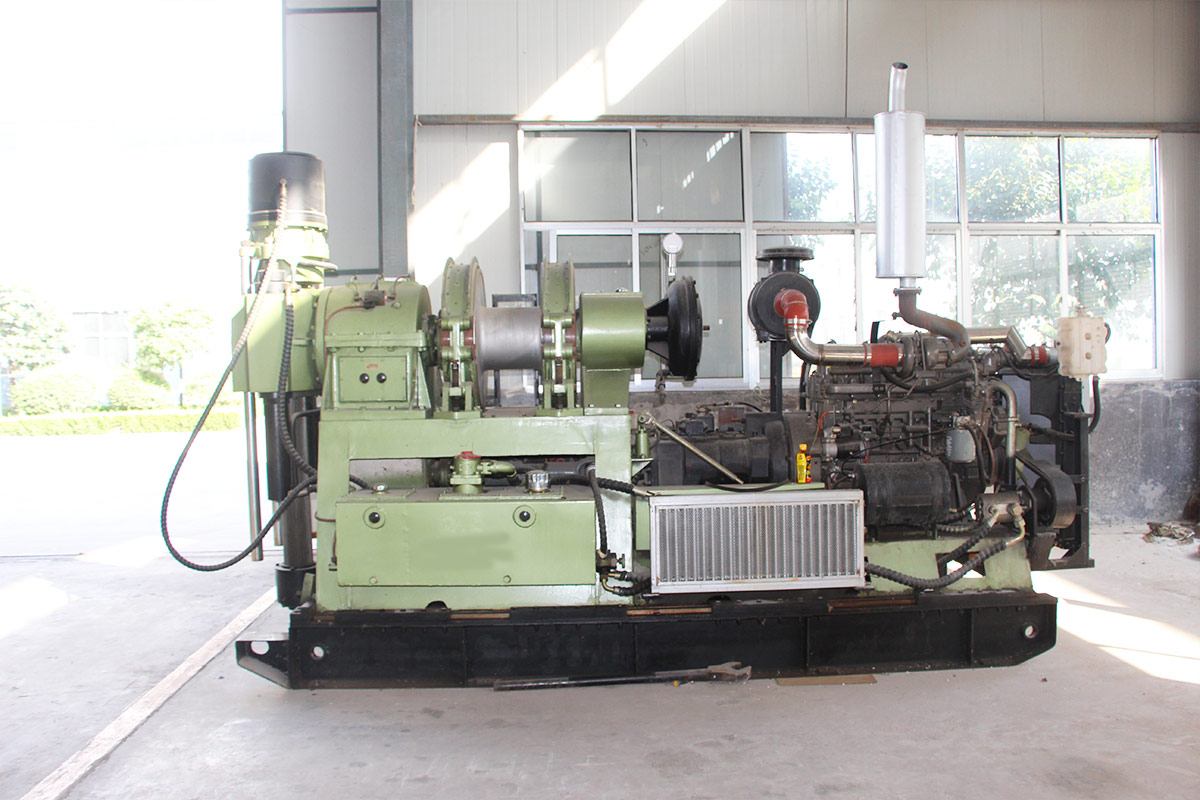

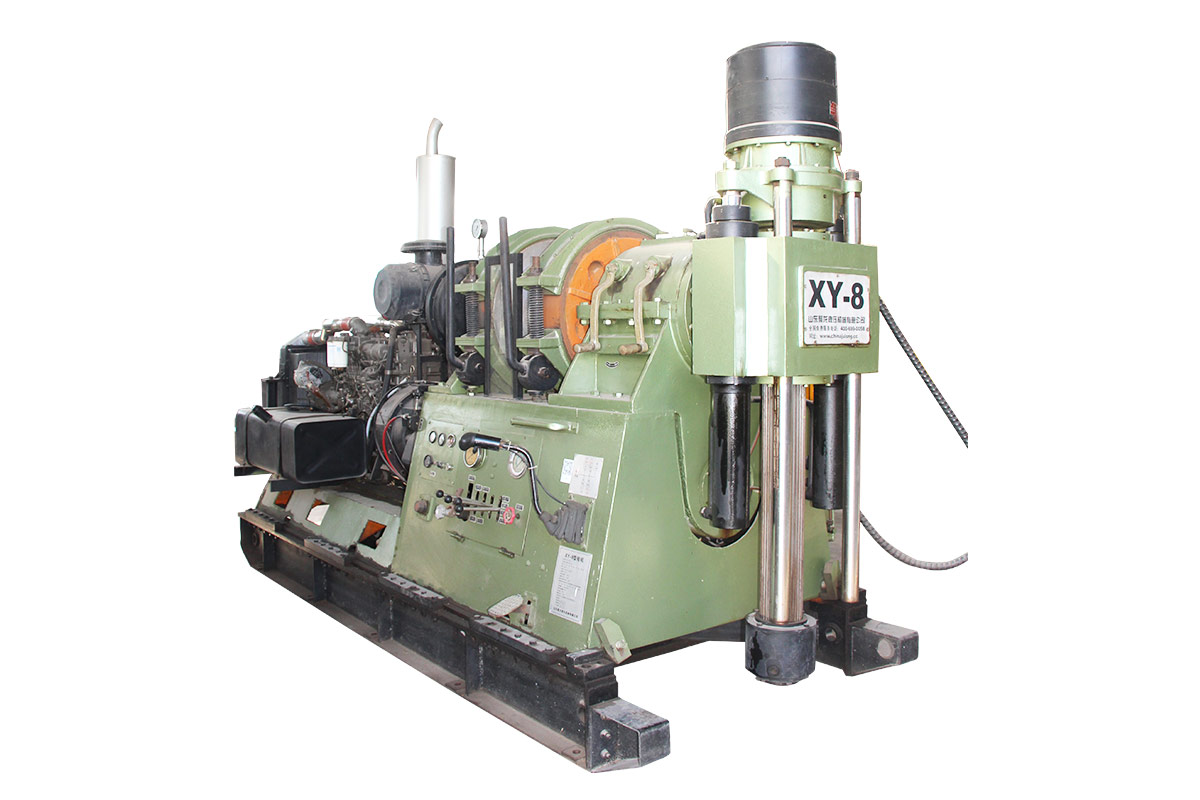

XY-8 Hydraulic Drilling Rig
-
Max.Drill Depth: 3000m
Drill angle: 0-360°
Rated Power: 177kW
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<
XY-8model rig is a kind of full multipurpose and stable performance deep core drilling rig. It is not only suitable for the size of the alloy, diamond-based core drilling, but also can be used for engineering geological surveying and construction, hydropower engineering, highways, railways, ports and other fields of construction.
Main feature:

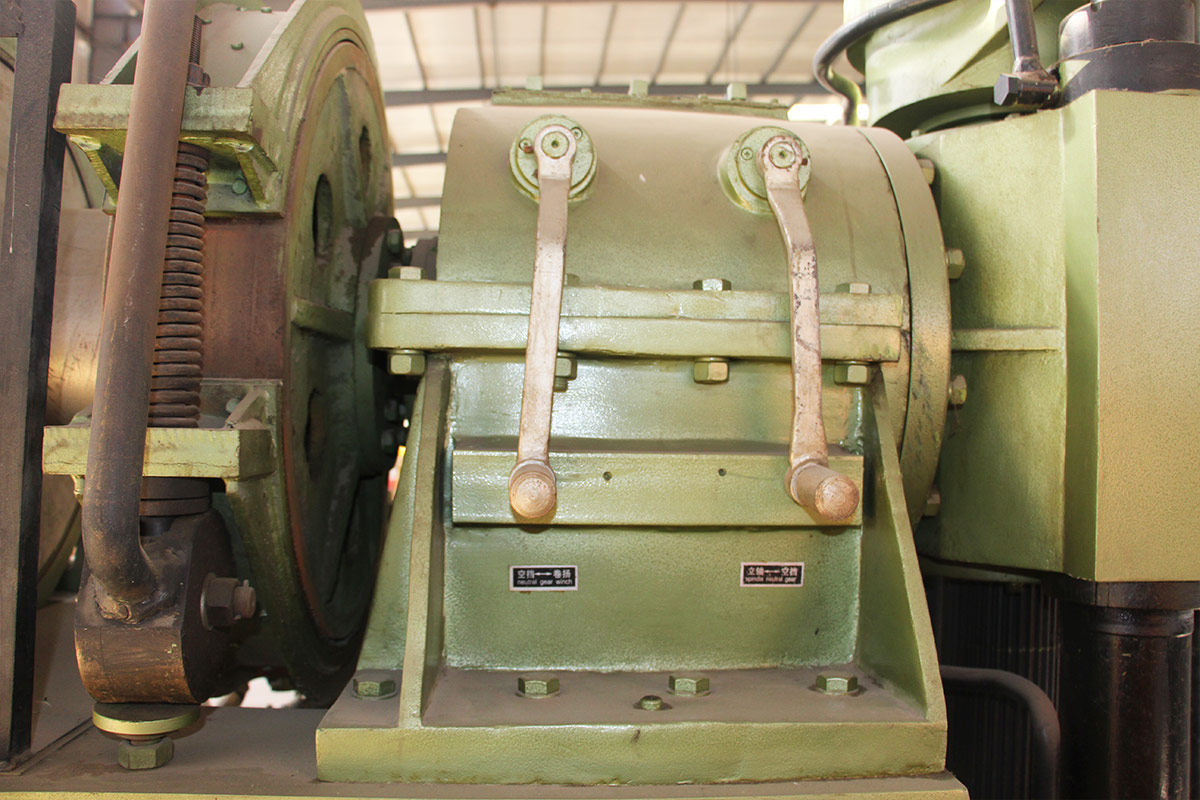

1. Adapt to gearbox and clutch for smooth operation;
2. The single drilling distance is long, and the drilling efficiency is increased by 20%;
3. Equipped with downhole pressure indicator, you can always grasp the drilling conditions;
4. Small size, light weight, easy to transport and low maintenance cost.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us!
XY-8 main technical parameters | |||||||
Drill rod category | Drill rod specifications (mm) | Drilling depth (M) | |||||
Drill pipe | Thickened within the drill pipe | φ50X5.5 Drill pipe | 3000 | ||||
φ60 X 6 Drill pipe | 2500 | ||||||
Cord coring drill pipe | φ71X5 Drill pipe | 2200 | |||||
φ89X5 Drill pipe | 2000 | ||||||
DCDMA钻杆 | Thickened within the drill pipe | BW Drill pipe | 3000 | ||||
NW Drill pipe | 2500 | ||||||
HW Drill pipe | 1800 | ||||||
Cord coring drill pipe | BQ Drill pipe(φ58) | 3000 | |||||
NQ Drill pipe(φ73) | 2500 | ||||||
HQ Drill pipe(φ93) | 1800 | ||||||
Drill angle | 0 〜360° | ||||||
Power unit | |||||||
Electric unit | Y280S-4 | 75kW | 1480r/min | ||||
Diesel | YC6A240-33 | 177kW | 2300r/min | ||||
Rotator | |||||||
Type | Feed with double cylinders oil hydraulic | ||||||
Spindle L. D | 96mm | ||||||
Speed | |||||||
Power speed | 1480r/min | 2300r/min | |||||
Forward speed | 74/106/150/208/300 | 110/157/222/309/445 | |||||
Reserve | 74r/min | 110r/min | |||||
Max. torque of spindle | 12500N•m | ||||||
Spindle stroke | 1000mm | ||||||
Max. lifting force of | 180Kn | ||||||
Max. thrust of spindle | 110kN | ||||||
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
