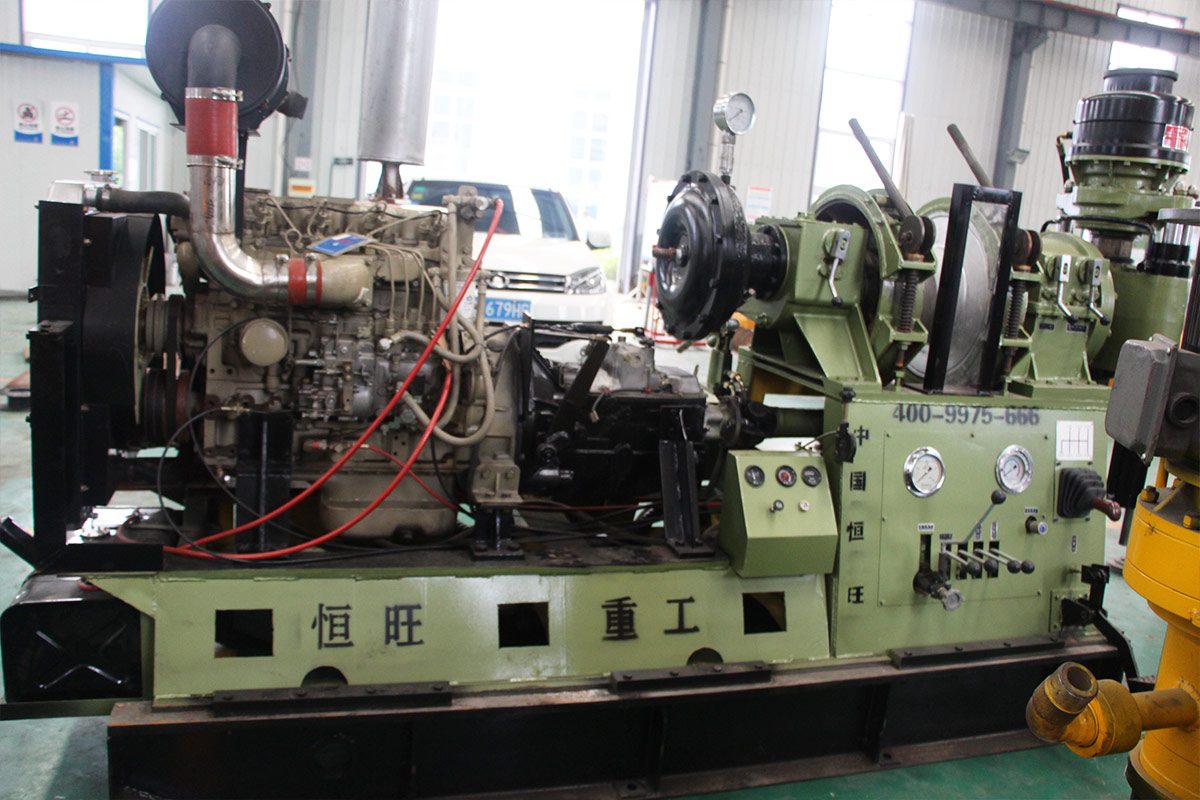

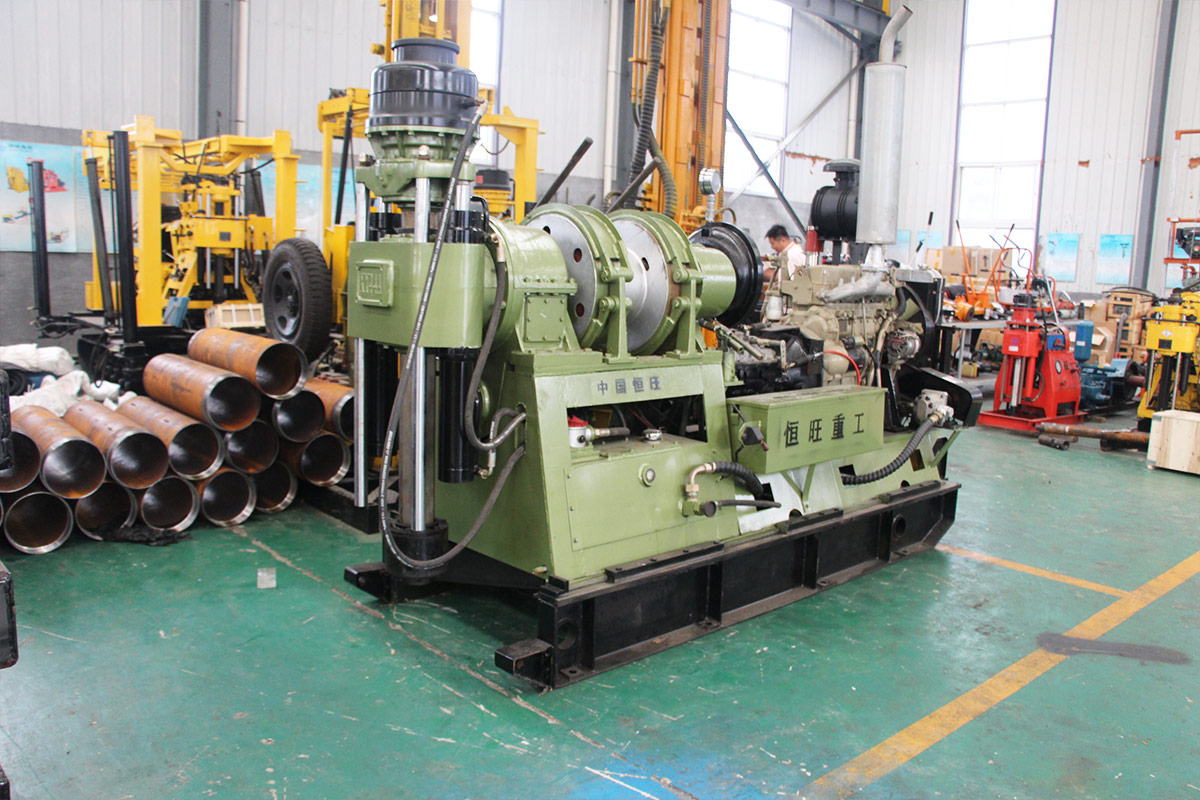

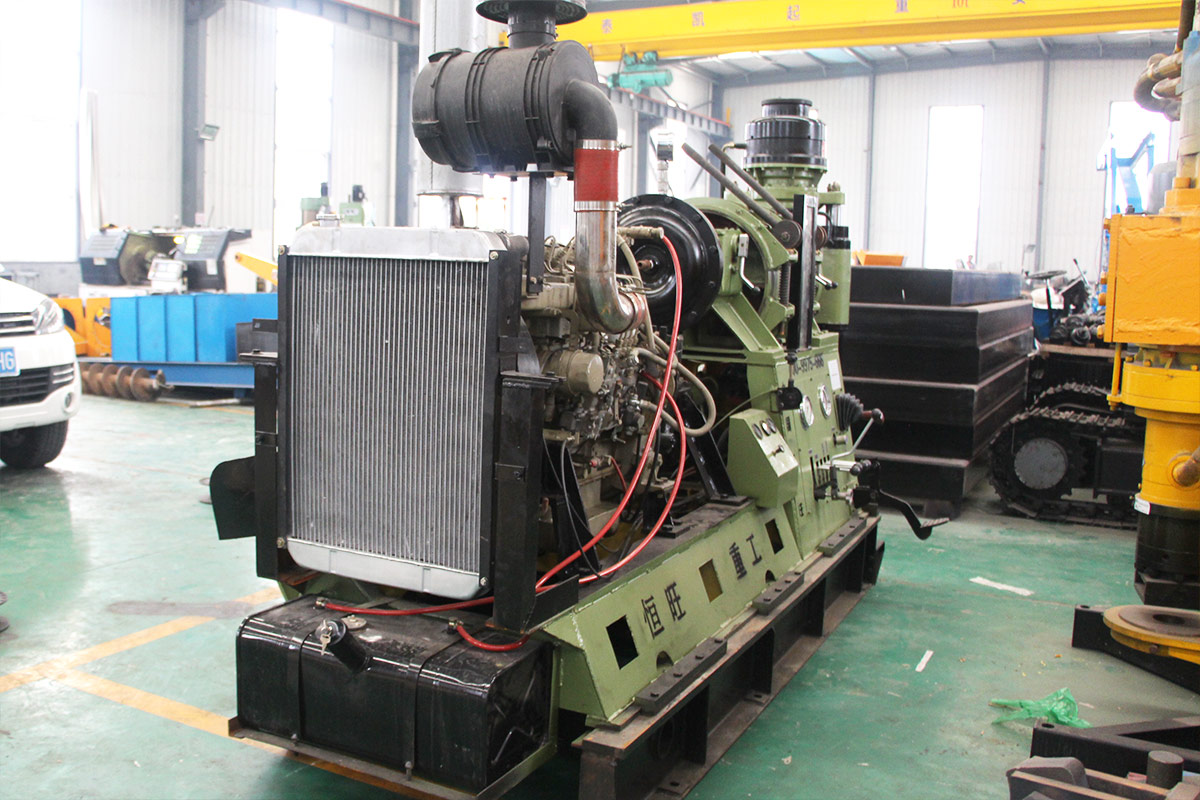

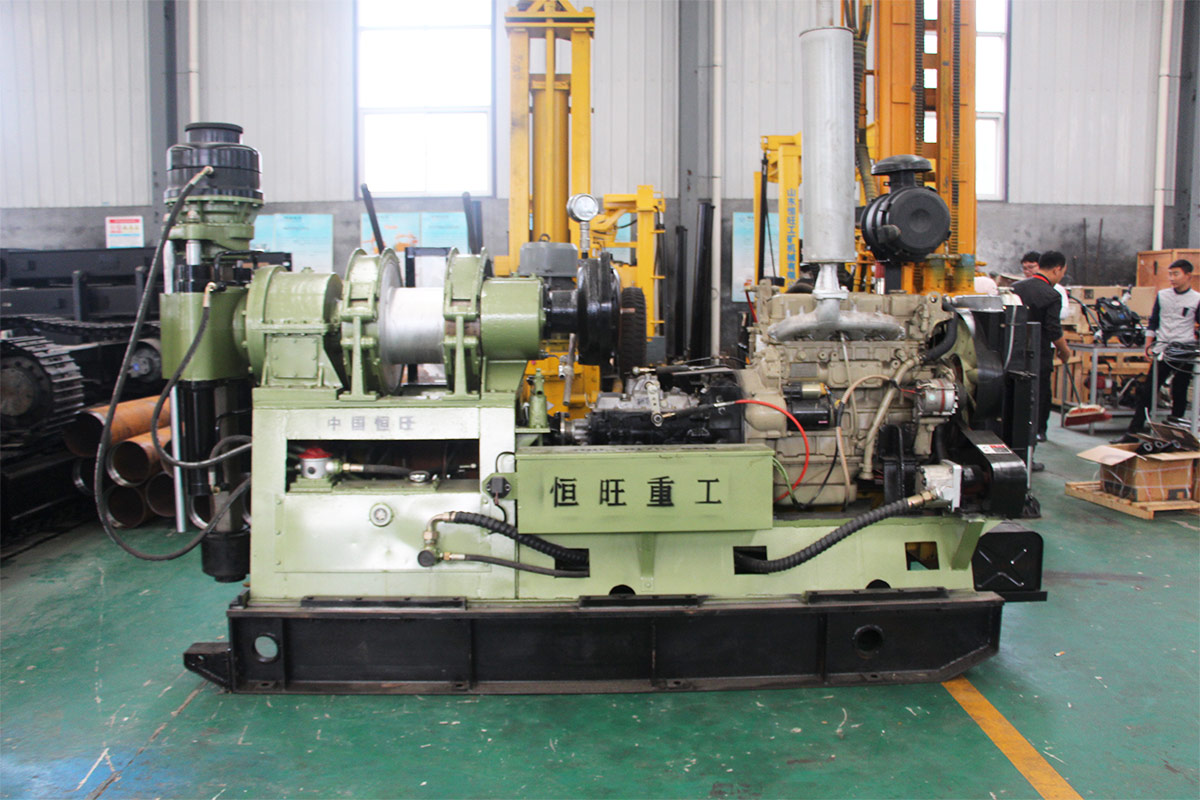

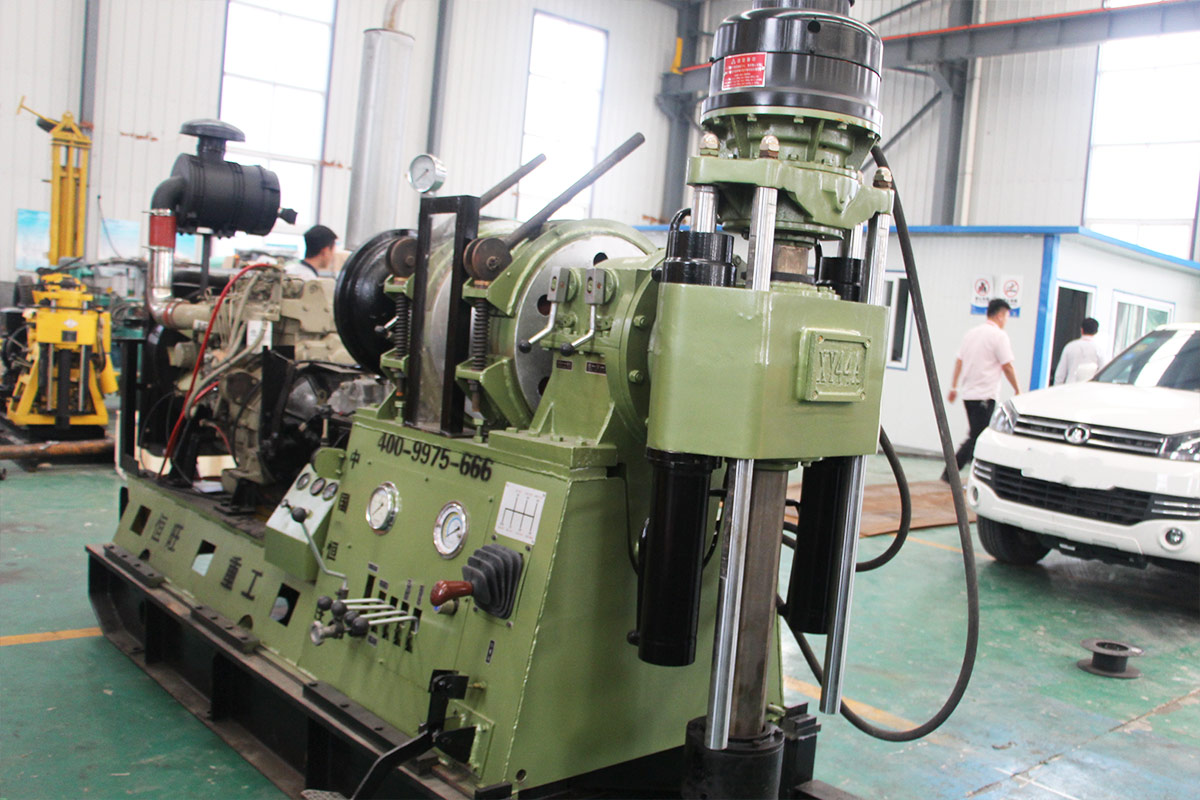

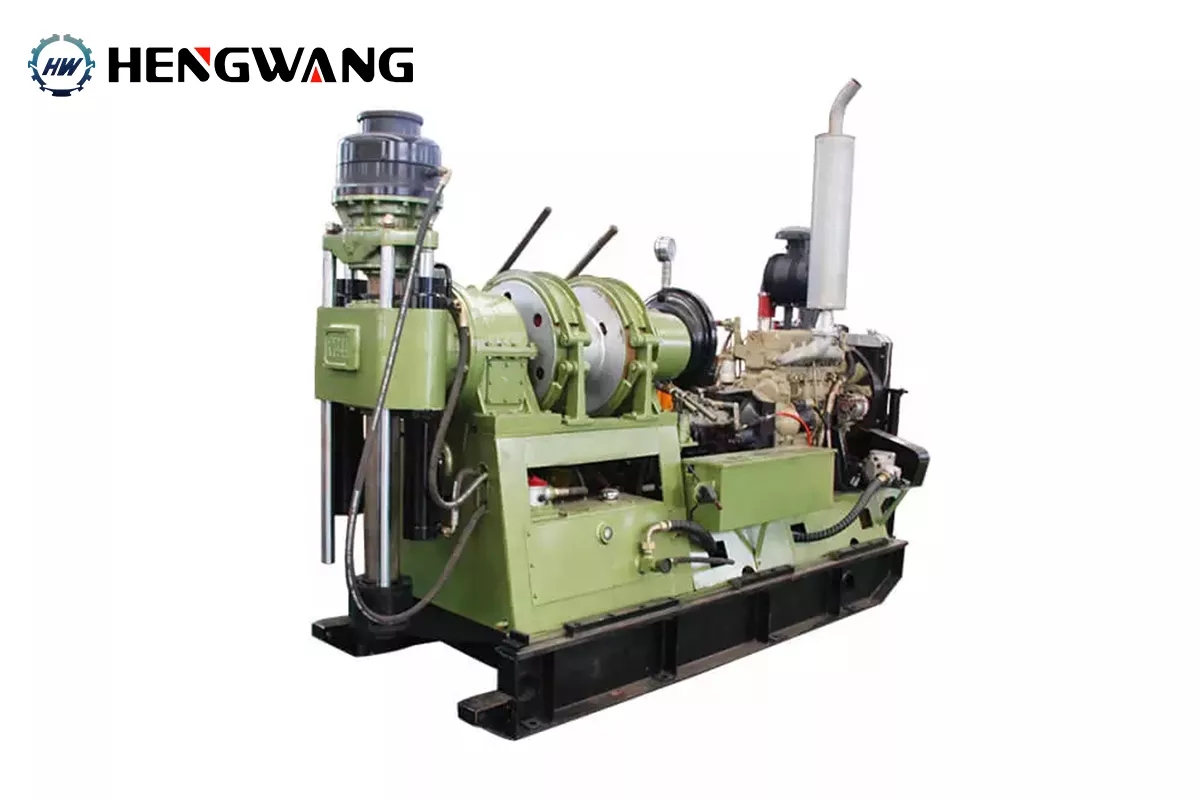

XY-44A Hydraulic Drilling Rig
-
Max.drill depth: 1400m
Drill angel: 0°-360°
Rated Power: 81kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<
XY-44A model rig is a kind of full multipurpose and stable performance deep core drilling rig. It is not only suitable for the size of the alloy, diamond-based core drilling, but also can be used for engineering geological surveying and construction, hydropower engineering, highways, railways, ports and other fields of construction.
Main feature:
1. Adapt to gearbox and clutch for smooth operation;
2. The single drilling distance is long, and the drilling efficiency is increased by 20%;
3. Equipped with downhole pressure indicator, you can always grasp the drilling conditions;
4. Small size, light weight, easy to transport and low maintenance cost.
Parameter
Here are the key specifications for this product model. Want more details? Please contact us!
| XY-44A Main parameters core drilling rig | |||
| Drill rod category | Drill rod specifications (mm) | Drilling depth (m) | |
| Drill rod | Inside and outside flat | 42 | 1400 |
| 50 | 1000 | ||
| 60 | 830 | ||
| Cord coring | 55.5 | 1250 | |
| 71 | 1000 | ||
| 89 | 800 | ||
| DCDMA Drill rod | Cord coring | BQ drill rod | 1300 |
| NQ drill rod | 1000 | ||
| HQ drill rod | 750 | ||
| PQ drill rod | 420 | ||
| outside Thickening type | 60mm | 800 | |
| 73mm | 500 | ||
| 89mm | 300 | ||
| Drill angel | 75°-90° | ||
| Engine | Model | Power | speed |
| Motor | Y225S-4 | 37kW | 1480 r/min |
| Diesel engine | CA4110 | 81kW | 2800 r/min |
| Revolver | |||
| Type: Double hydraulic cylinder into the mechanical rotary | |||
| Spindle diameter (mm) | φ93 | ||
| Spindle speed (diesel engine) | |||
| Forward (r/min) | 60/90/166/272/379/481/183/296/514/835/1164/1476 | ||
| Reverse(r/min) | 63/198 | ||
| Spindle maximum torque (N·m) | 8000 | ||
| Vertical axis travel (mm) | 600 | ||
| largest lifting force of the vertical axis (kN) | 125 | ||
| Maximum pressure of the vertical axis (kN) | 90 | ||
| hoist | |||
| Type: planetary gear, handbrake | |||
| Rope diameter | φ18.5mm | ||
| Reel wire rope capacity | 95m (seven Winding) | ||
| Single rope maximum lifting force | 45kN | ||
| Rope lift speed | |||
| Reel linear speed (m/s) (third floor) | 0. 7-2. 68m/s | ||
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
