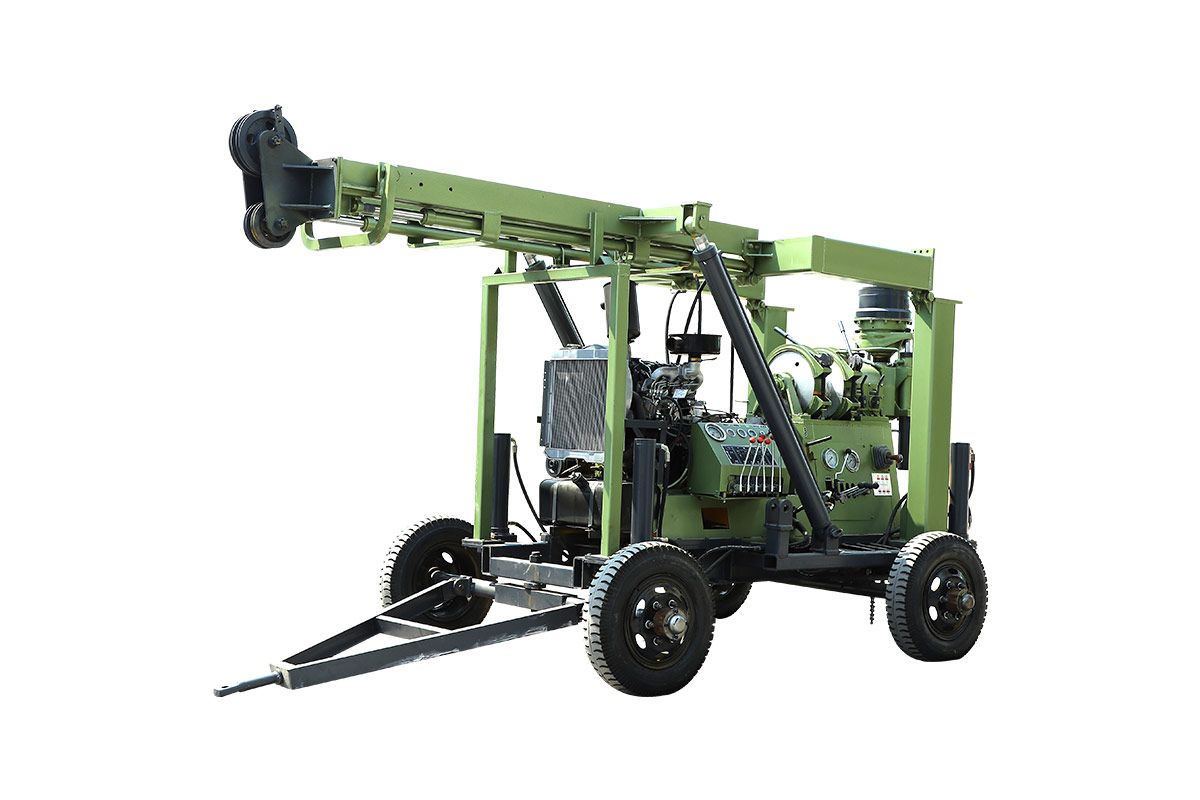

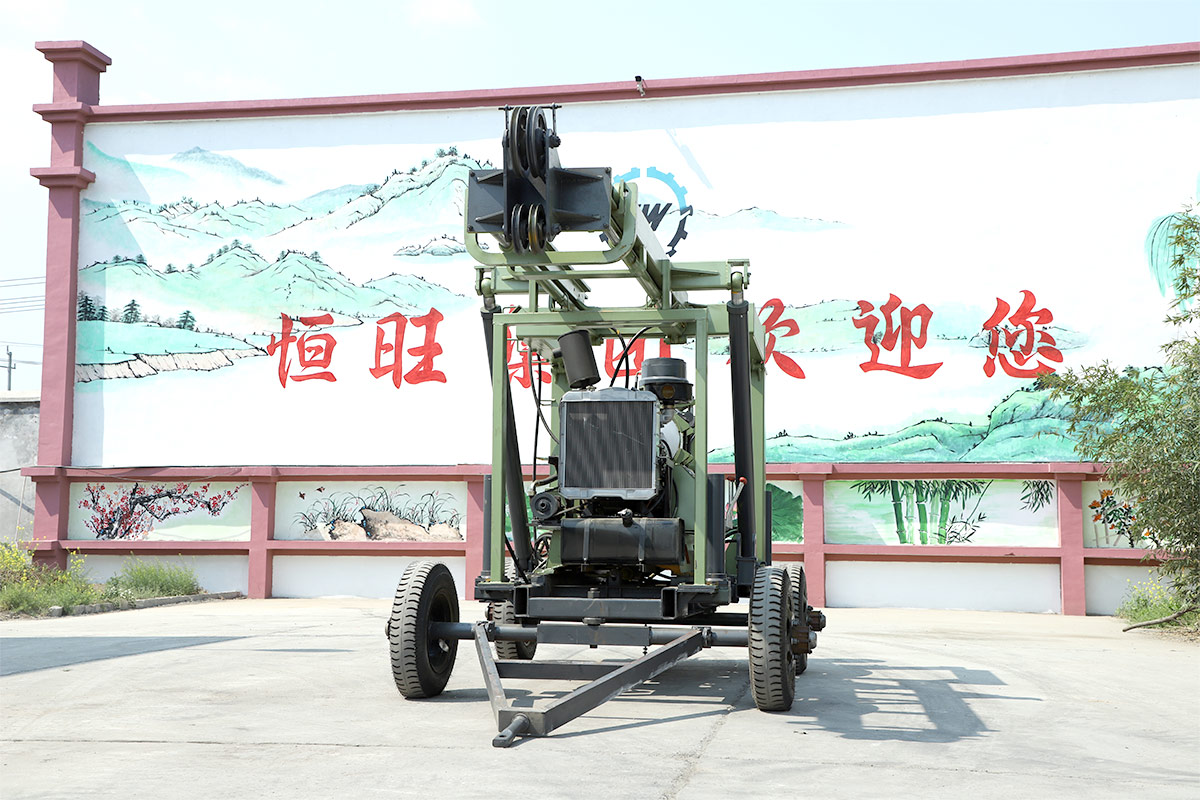

XY-3T Hydraulic Drilling Rig
    Drilling depth: 600m
    Drilling diameter: 75-325mm
    Rated Power: 39Kw
Back to list

Crazy Engineering Day Sale, submit form to get discounts and coupons on your order

>>> Product Details <<<

XY-3 series drilling rig is a medium depth core drilling machine, the machine is Spindle core drilling rig mainly used for diamond drilling and able to meet the needs of various drilling Process.

It can match the corresponding electric motor or diesel engine.

The structure of the machine is simple, easy dismantling, easy to operate.


Main feature:

1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;

2. Huixin Machinery is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;

3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.


Parameter:

Here are the key specifications for this product model. Want more details? Please contact us!



(Whole machine parameters)

Model

XY-3T

Drilling depth (m)

600

Open hole dia. (mm)

325

End hole dia. (mm)

75

Drill angle (°)

90-75

Matching power (kW)

YUNNEI YN27/39

Weight (kg)

3600

Dimension (L*W*H) (m)

2. 9*2. 56^3. 3

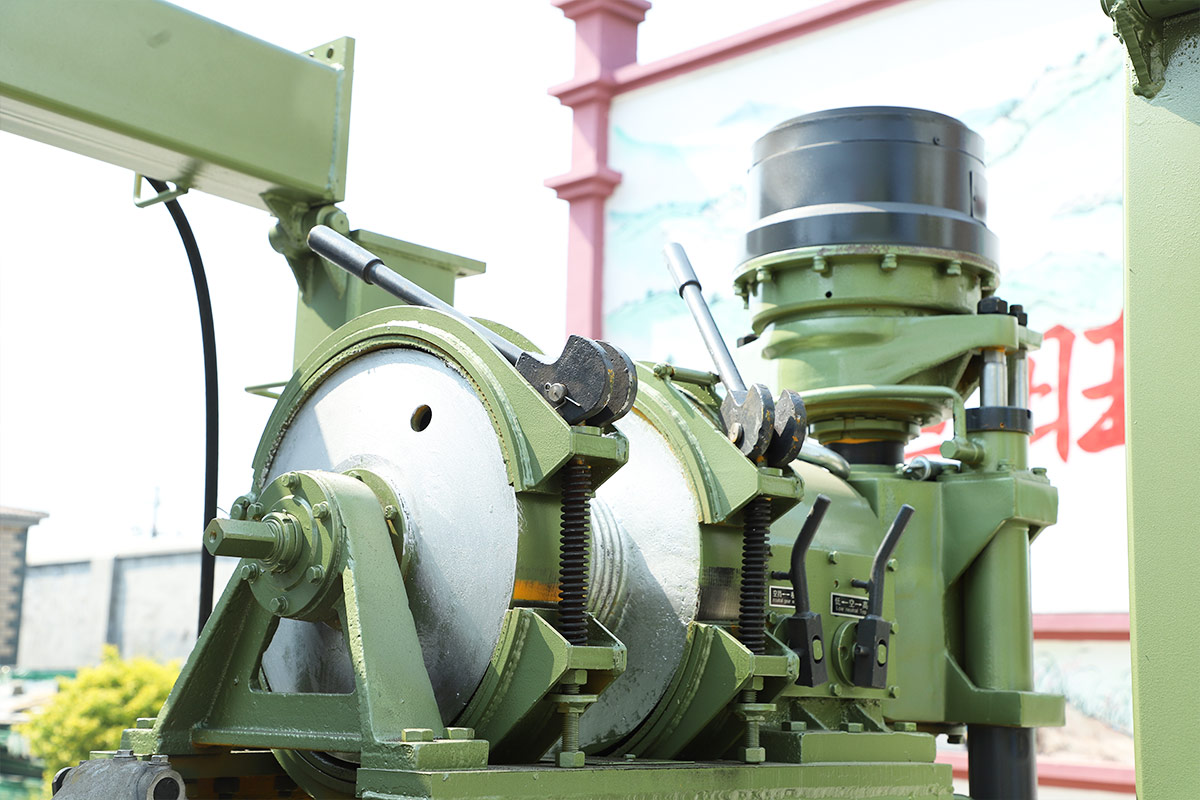

(Spindle)

Speed (r/min)

32-1057

Stroke (mm)

600

(Winch)

Single rope lift force (kg)

3000

Single rope lift speed (m/s)

0. 3-1. 9

Wire rope dia. (mm)

Φ12.5

Wire rope capacity (m)

65

(Drill Tower)

Rated load (ton)

18

Effective height (m)

6.5

Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
