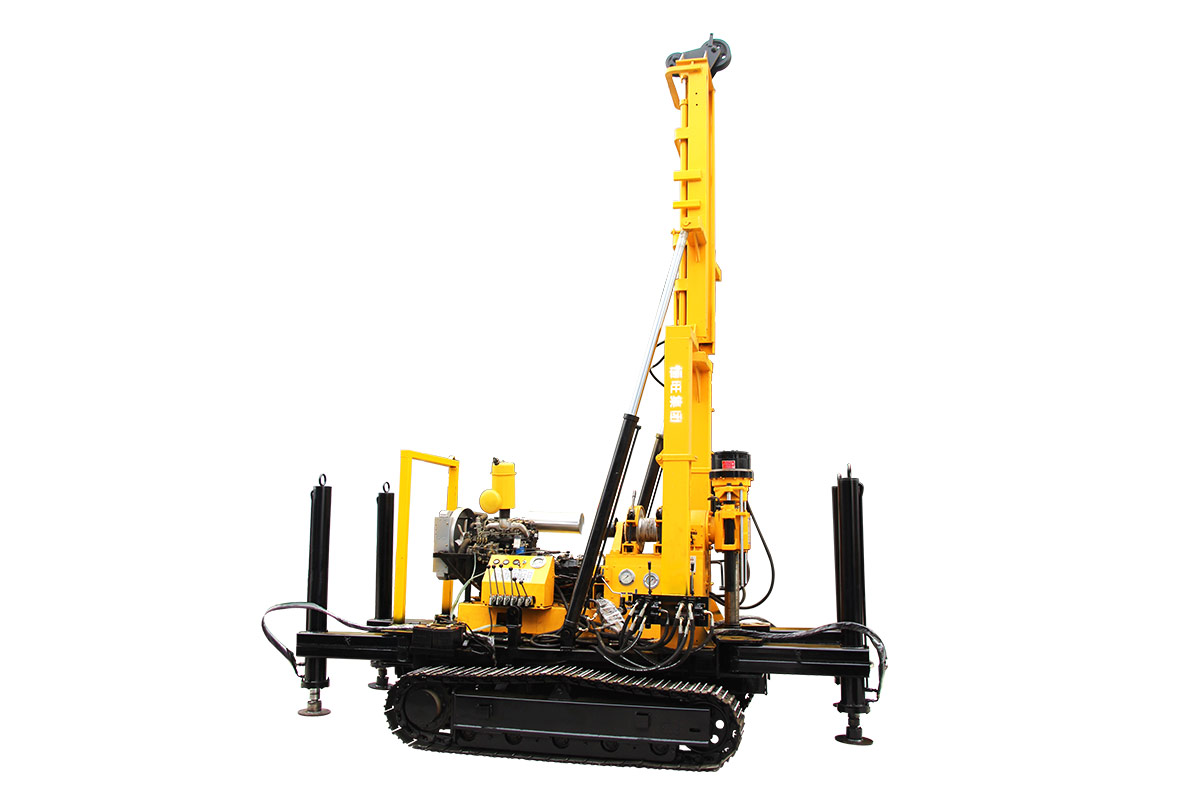

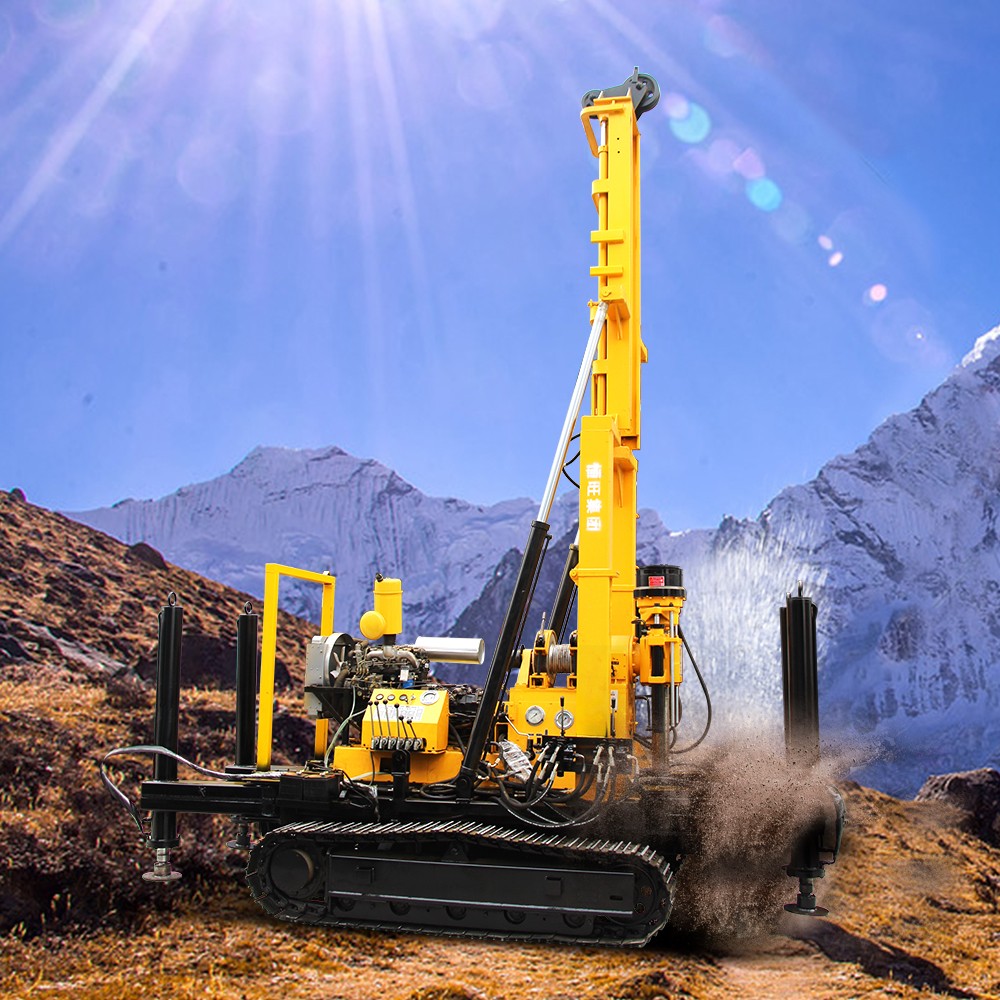

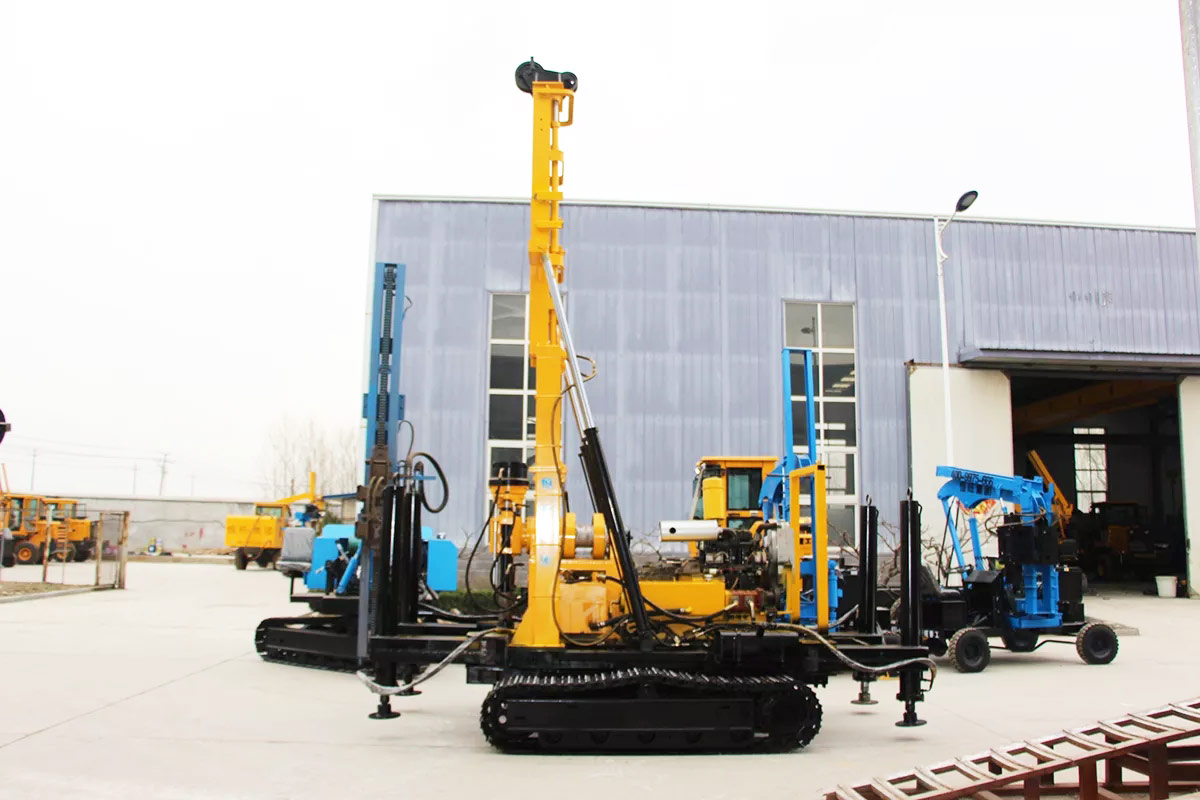

XY-3L Hydraulic Drilling Rig
-
Drilling depth: 600m
Drilling diameter: 75-325mm
Rated Power: 65Kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<
XY-3 series drilling rig is a medium depth core drilling machine, the machine is Spindle core drilling rig mainly used for diamond drilling and able to meet the needs of various drilling Process.
It can match the corresponding electric motor or diesel engine.
The structure of the machine is simple, easy dismantling, easy to operate.
Main feature:

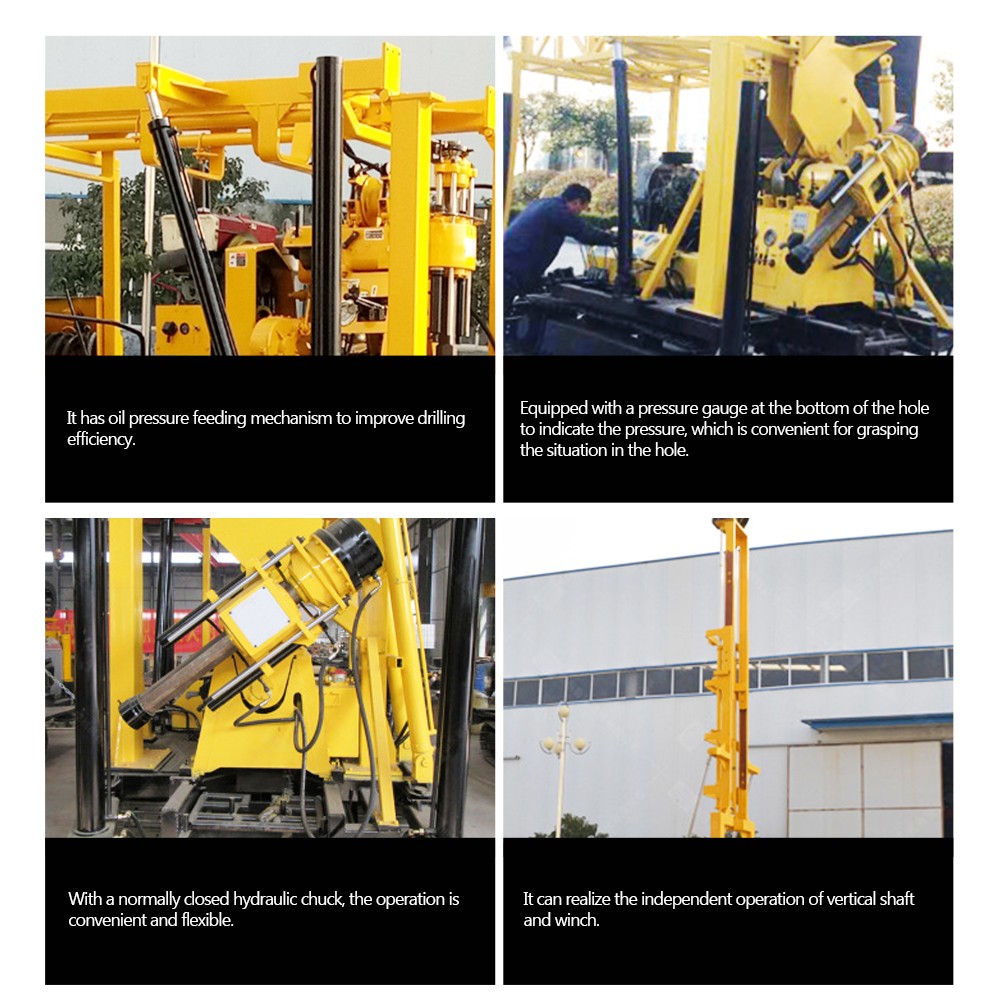

1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Huixin Machinery is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us!
| Model | XY-3L |
Drilling depth (m) | 600 | |
Open hole dia. (mm) | 325 | |
End hole dia. (mm) | 75 | |
Drill angle (°) | 90-75 | |
Matching power (kW) | YUNNEI YN33GBZ/65 | |
Weight (kg) | 6200 | |
Dimension (L*W*H) (m) | 4. 5*2*2. 7 | |
| Speed (r/min) | 32-1057 |
Stroke (mm) | 600 | |
(Winch) | Single rope lift force (kg) | 4500 |
Single rope lift speed (m/s) | 0.3-1.9 | |
Wire rope dia. (mm) | Φ12.5 | |
Wire rope capacity (m) | 65 | |

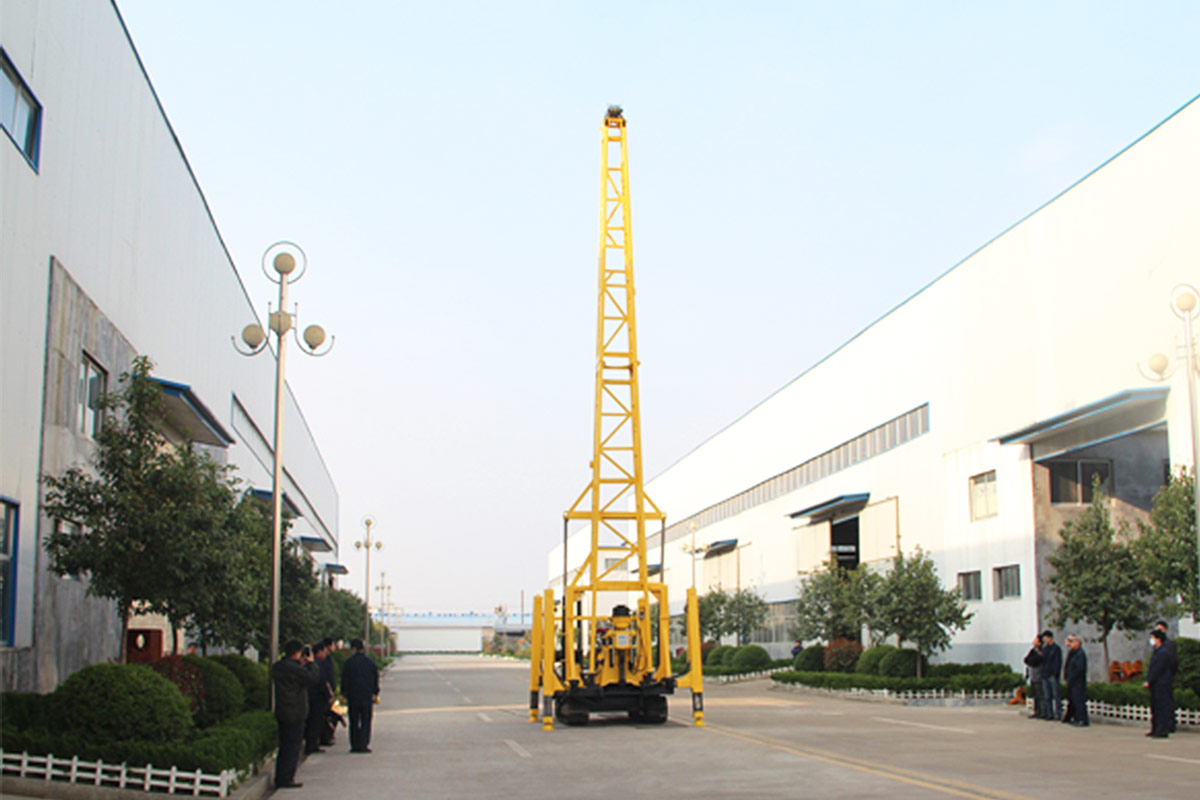

(Drill Tower) | Rated load (ton) | 18 |
Effective height (m) | 6.5 |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
