HW230S Hydraulic Drilling Rig
-
Drilling depth: 230m
Drilling diameter: 75-300mm
Rated Power: 15Kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<

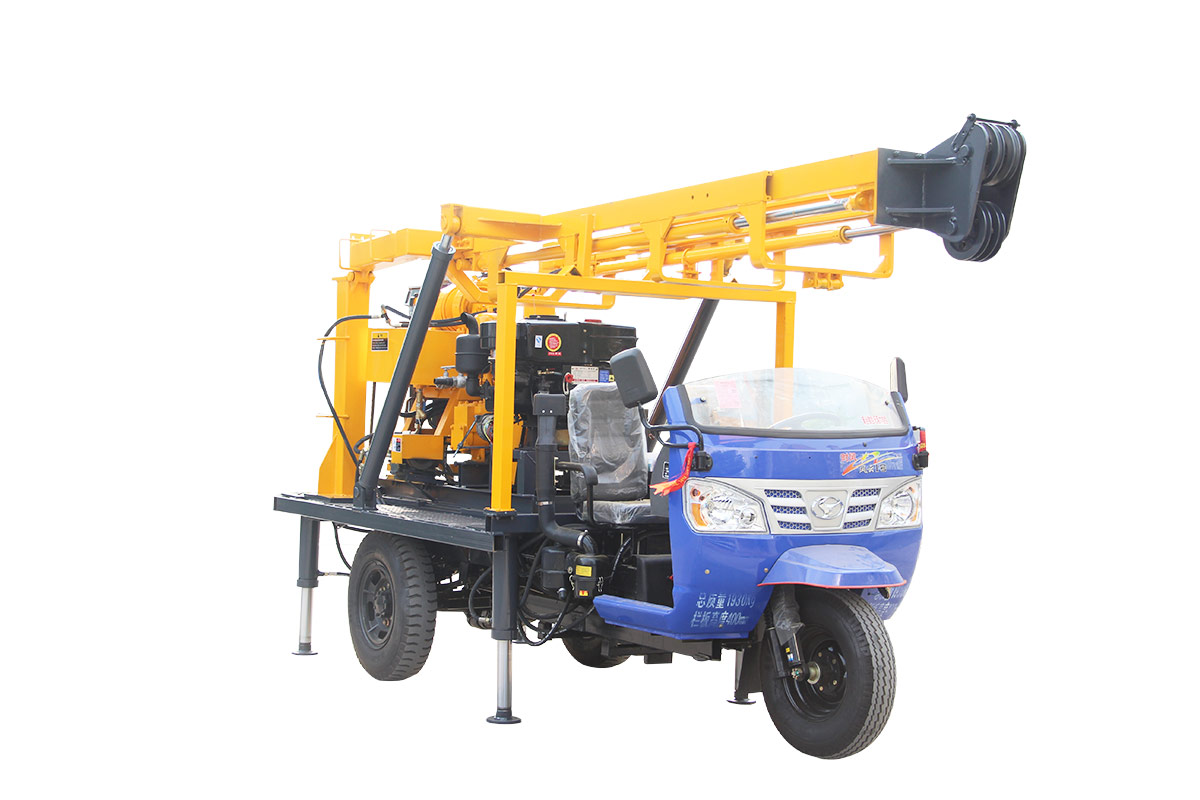

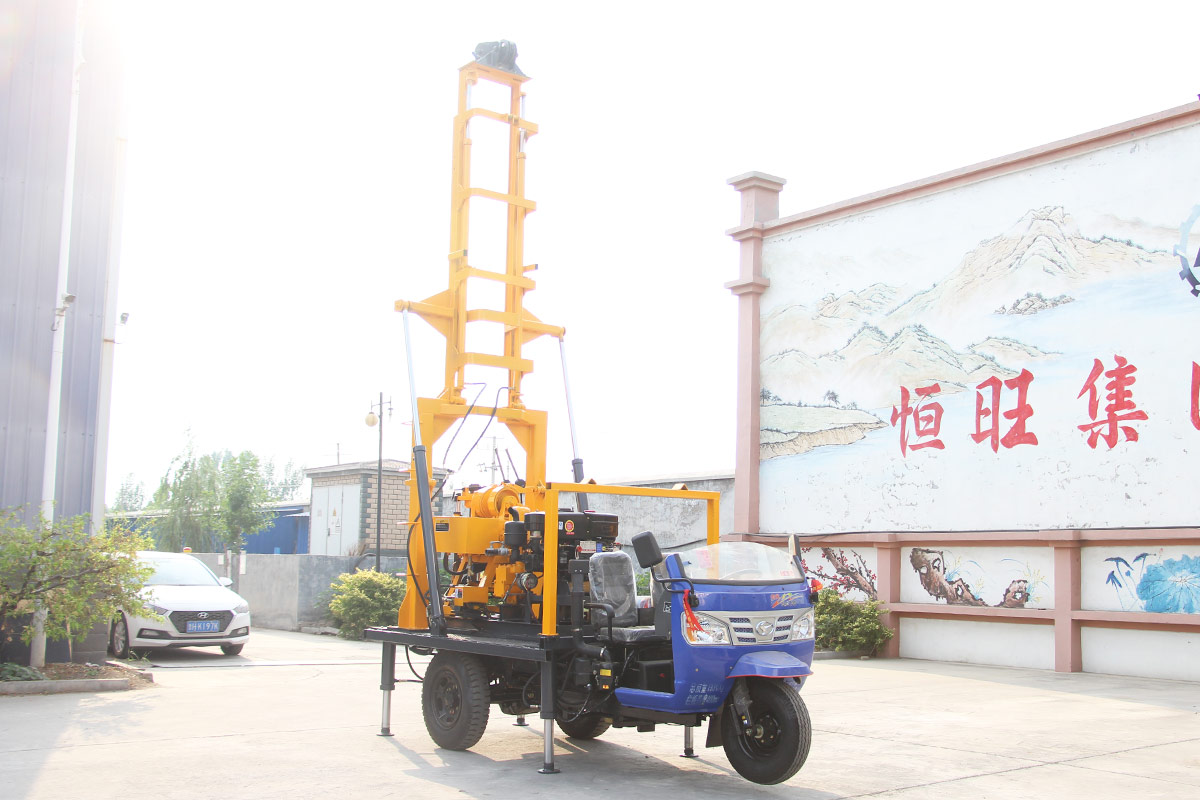

Tricycle drilling rig is designed to meet the needs of high speed, high efficiency and high mobility in field drilling. The machine is reasonable in structure, simple in operation, convenient in maintenance and transportation, and can be hoisted without crane after being transported to the working site. It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, various structural inspection holes on concrete, river embankments, subgrade grouting hole and direct grouting , civil water wells and ground temperature central air conditioning.
Main Features:
1. Equipped with BW-160 or BW-250 mud pump, high pressure ,big flow , it ensures to reach drilling depth and diameter.
2. Drilling rig self-equipped with mobile devices, drilling rig can be achieved before and after the host itself to facilitate the operation of the wellhead.

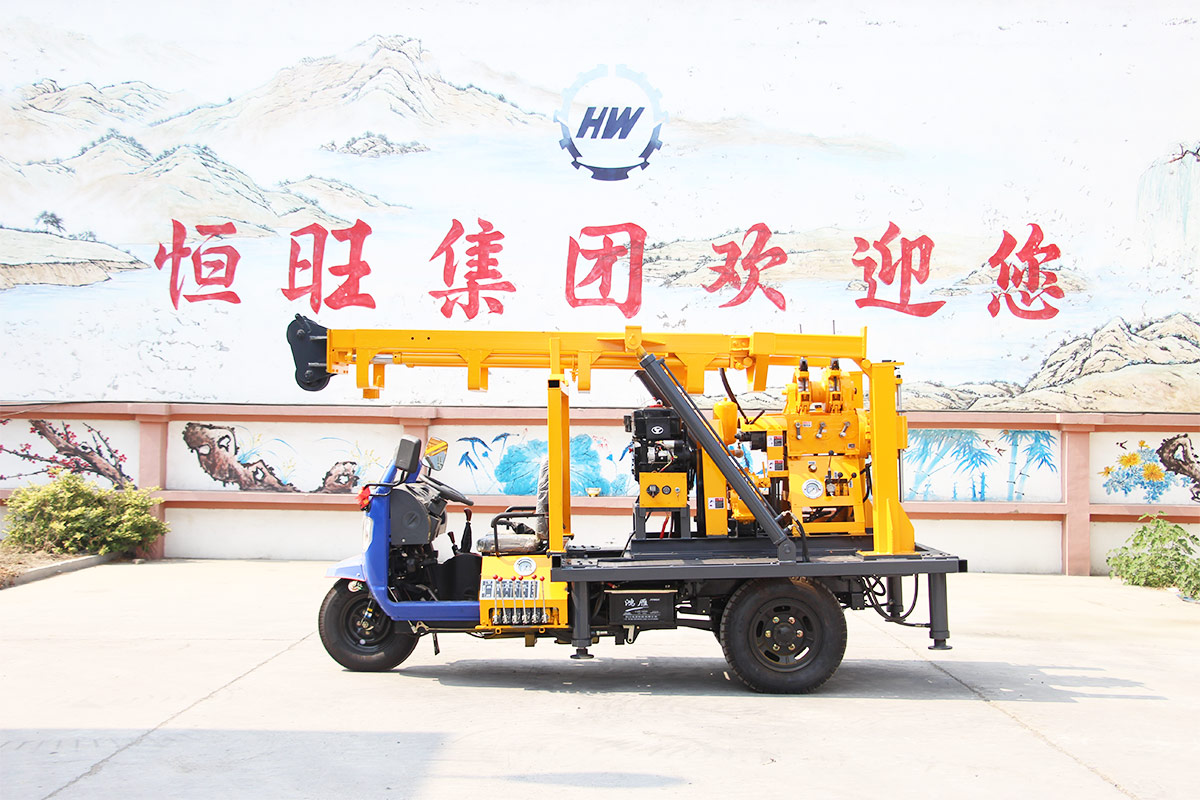

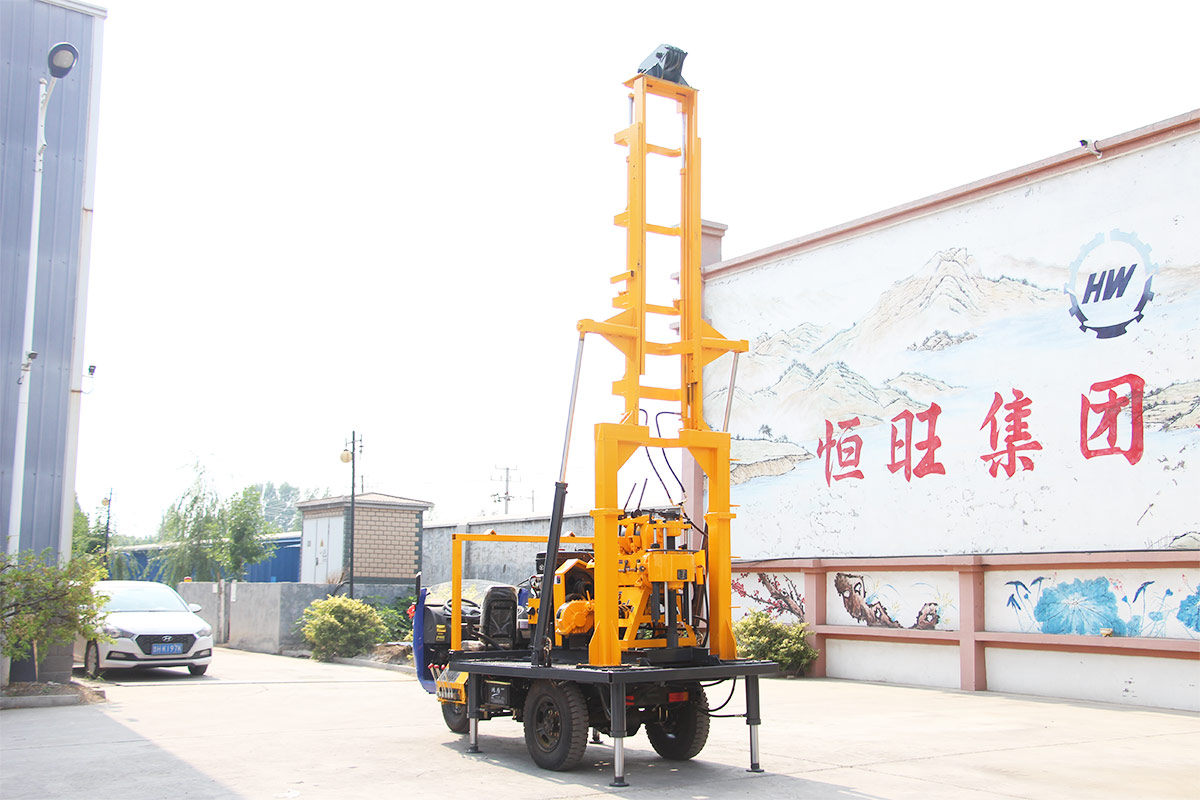

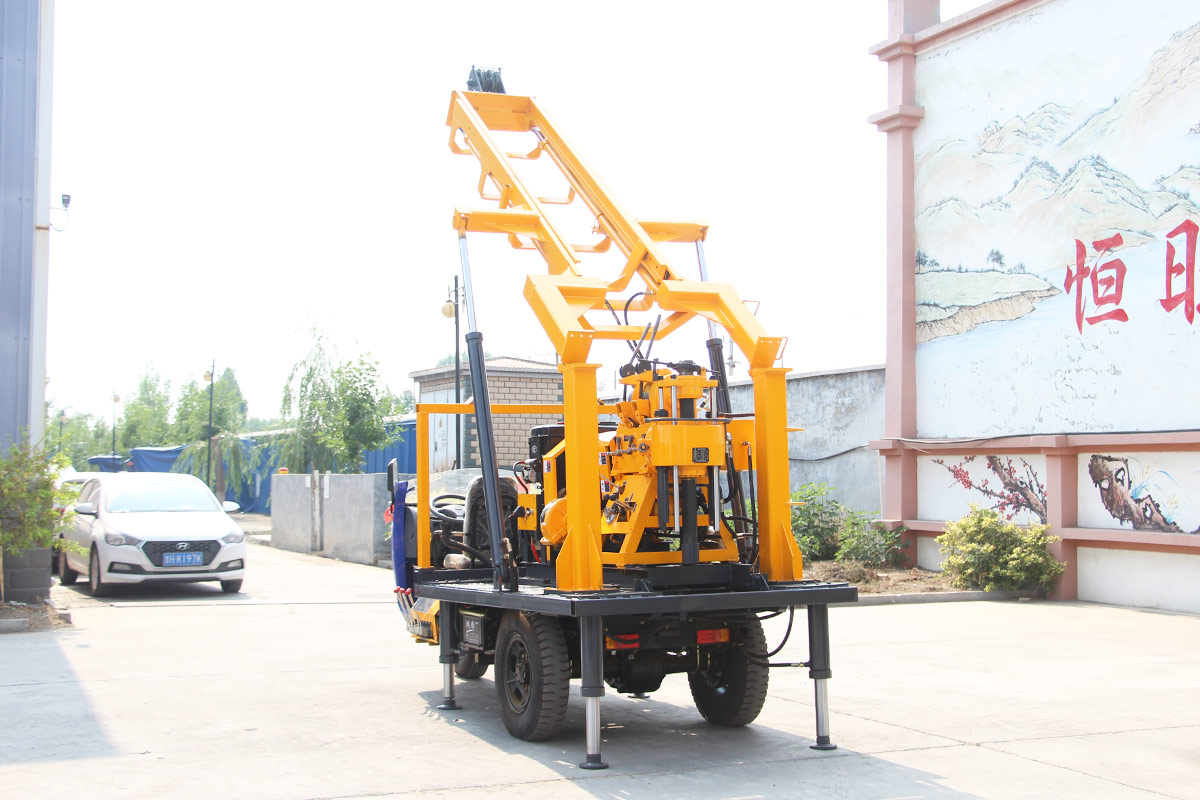

3. Drilling tower is hydraulic landing manual folding tower, easy to operate, safe and convenient.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us!
Whole machine parameters | Model | HW-230S |
Drilling depth(m) | 230 | |
Open hole dia. (mm) | 500(Soil), 273(Rocks) | |
End hole dia. (mm) | 75 | |
Drill rod dia. (mm) | 42, 50, 60 | |
drill angle (°) | 90-75 | |
Matching power (kW) | 15 | |
Weight (kg) | 3000 | |
Dimension (L*W*H) (m) | 4*1. 7*2. 3 | |

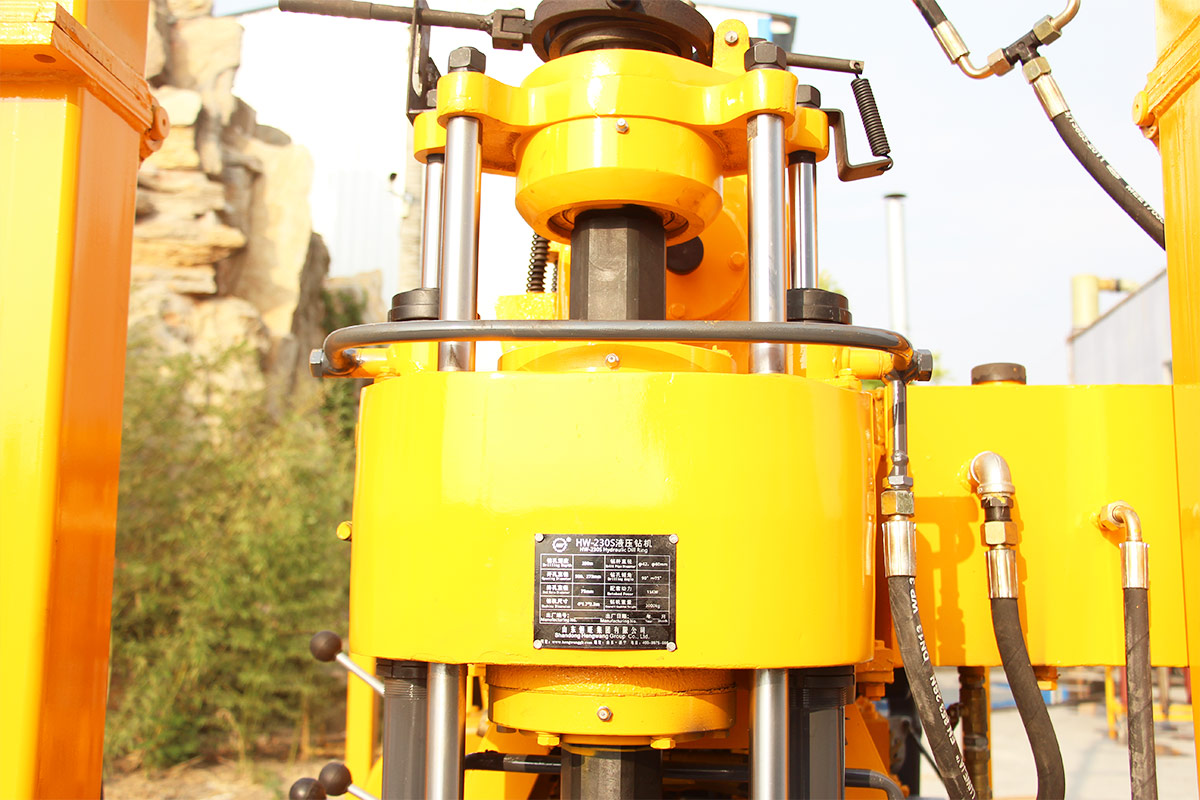

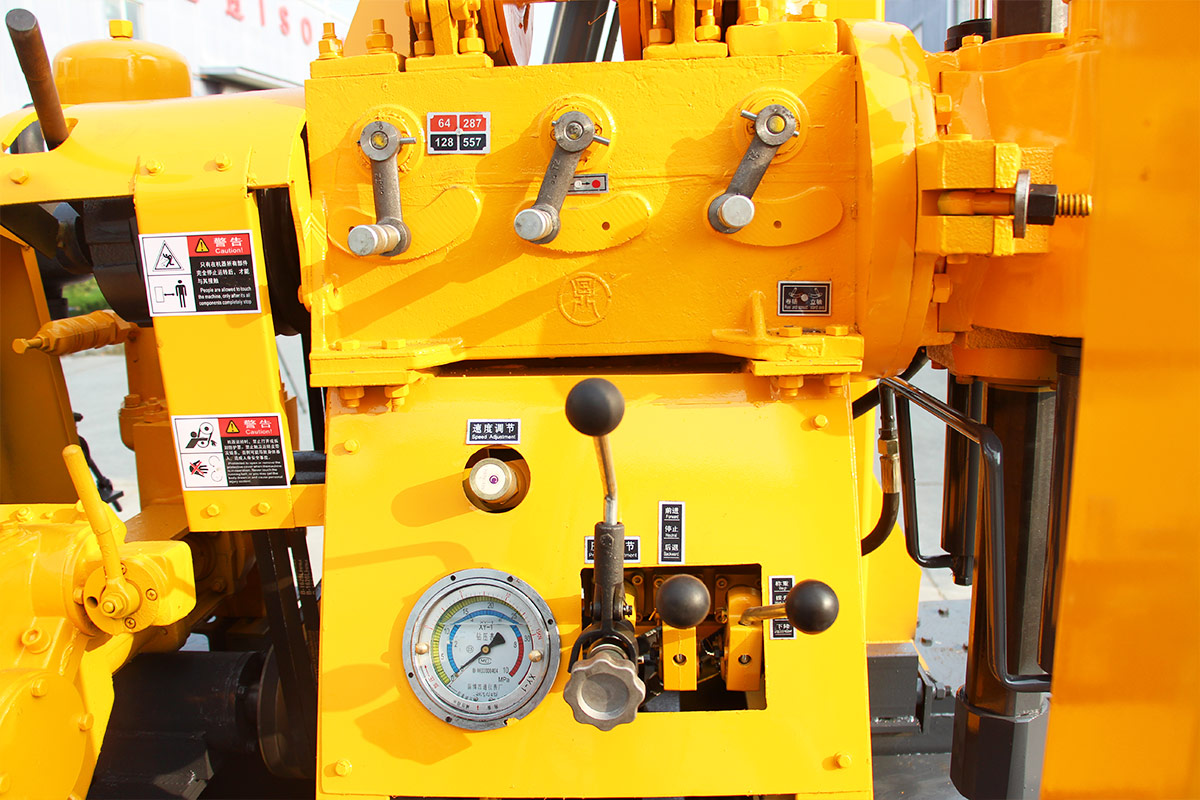

Spindle | Speed (r/min) | 64/128/287/557 |
Stroke (mm) | 450 | |
Tricycle chassis | Model | wuzheng |
Emission standard | GB19756-2005 (Ⅱ) | |
Rated power (kW) | 18. 3 | |
Rated speed (r/min) | 2200 | |
Drill Tower | Rated load (ton) | 18 |
Effective height (m) | 6.5 | |
Mud pump | Flow (L/min) | 160 |
Max. pressure (Mpa) | 1.3 | |
reciprocal times /mi n | 165 | |
Hose | Inlet hose dia. (mm) | 51 |
Outlet hose dia. (mm) | 32 |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
