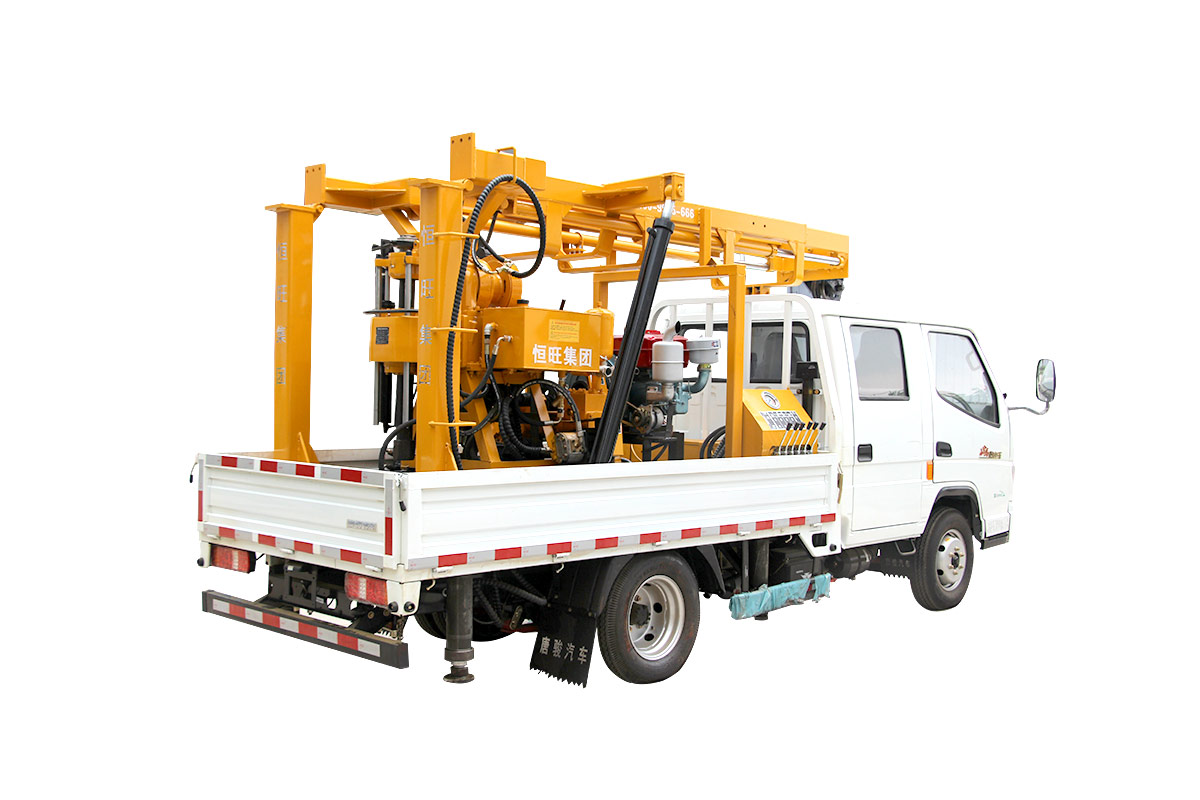

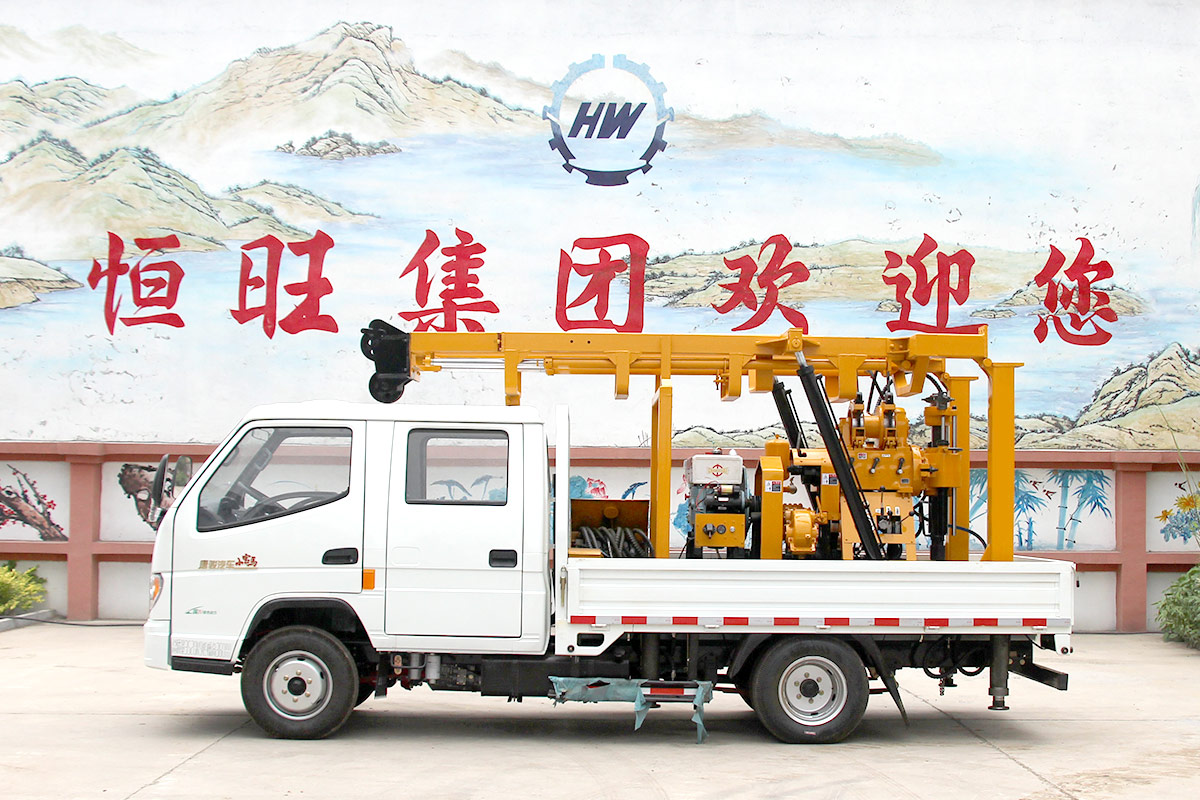

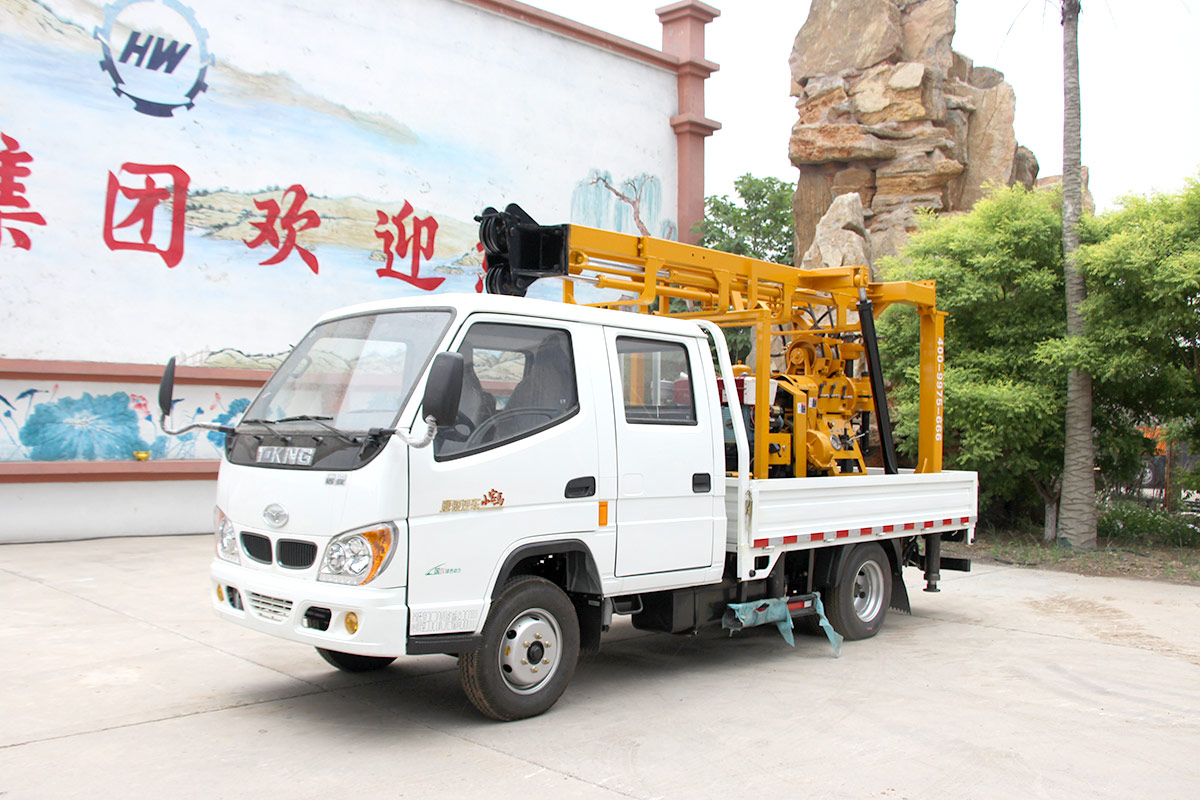

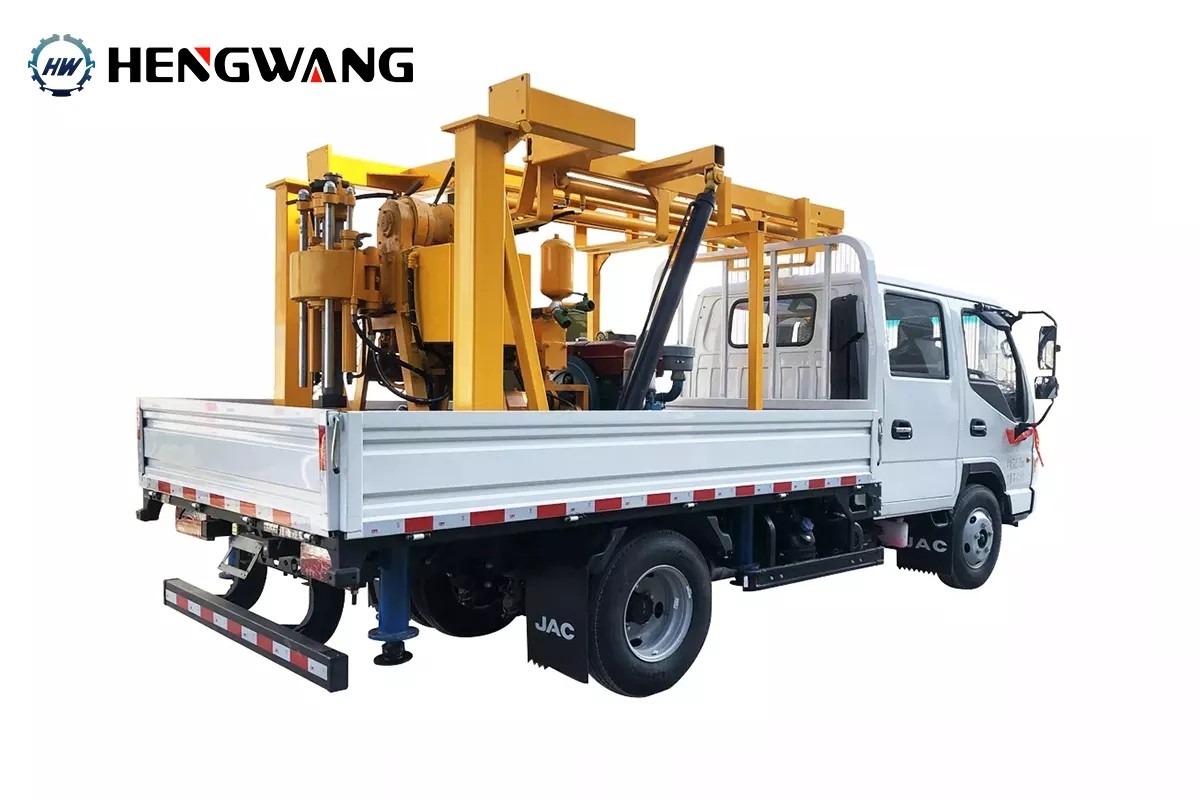

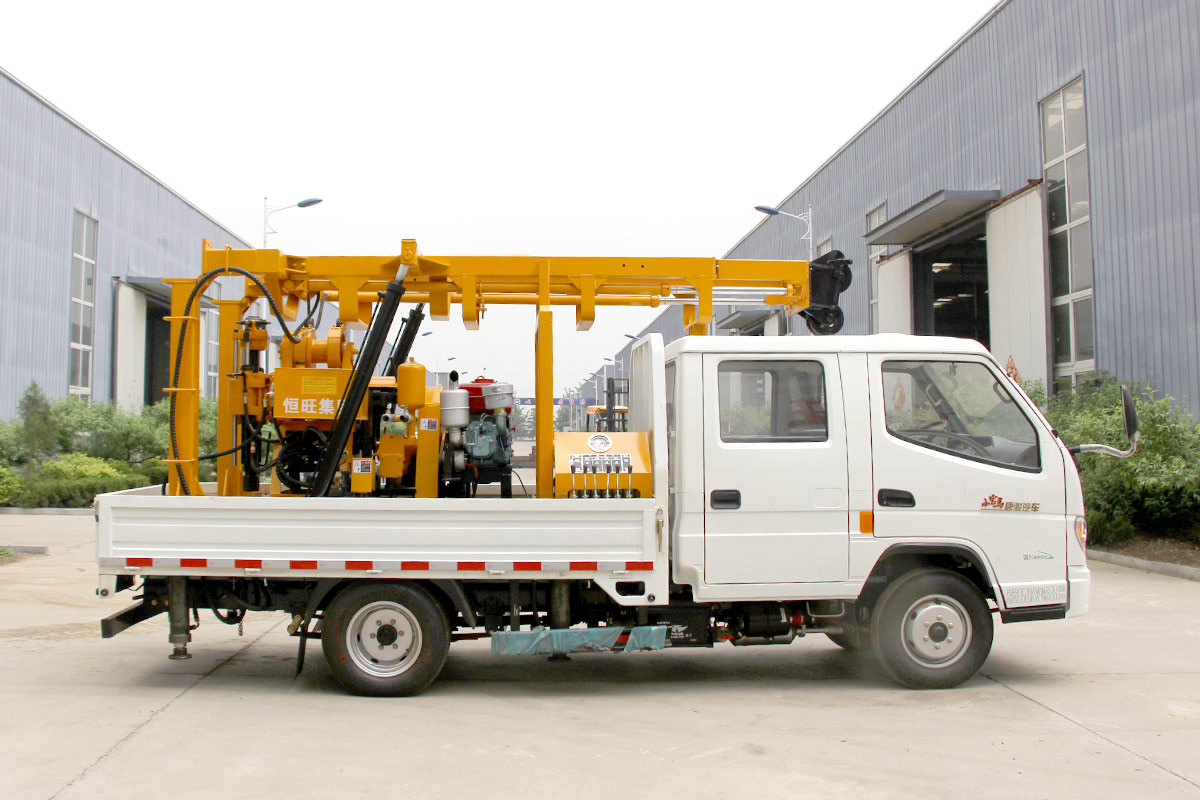

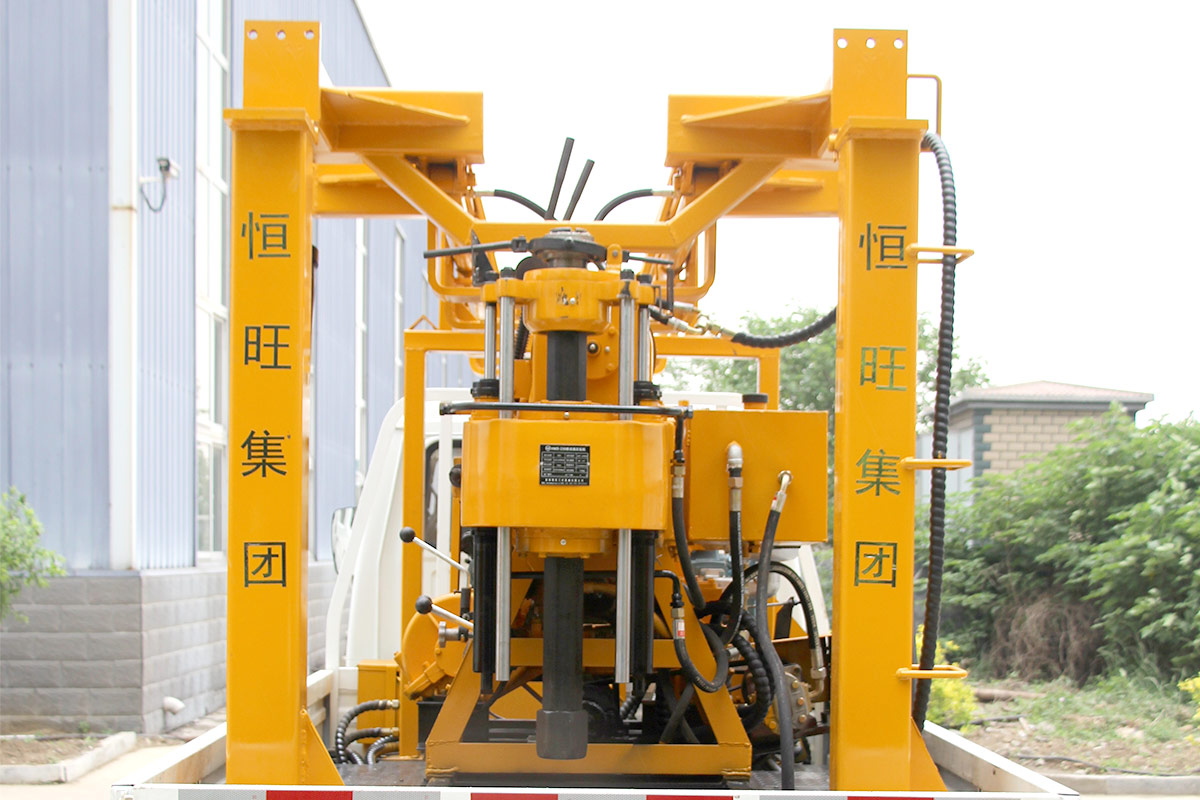

HW230C Hydraulic Drilling Rig
-
Drilling depth: 230mm
Drilling diameter: 75-300mm
Rated power: 14.7Kw
HW230C drilling rig is designed to meet the needs of high speed, high efficiency and high mobility in field drilling.
The machine is reasonable in structure, simple in operation, convenient in maintenance and transportation, and can be hoisted without crane after being transported to the working site.
It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, various structural inspection holes on concrete, river embankments, subgrade grouting hole and direct grouting , civil water wells and ground temperature central air conditioning.
Main Features:
1. Equipped with BW-160 or BW-250 mud pump, high pressure ,big flow , it ensures to reach drilling depth and diameter.
2. Drilling rig self-equipped with mobile devices, drilling rig can be achieved before and after the host itself to facilitate the operation of the wellhead.

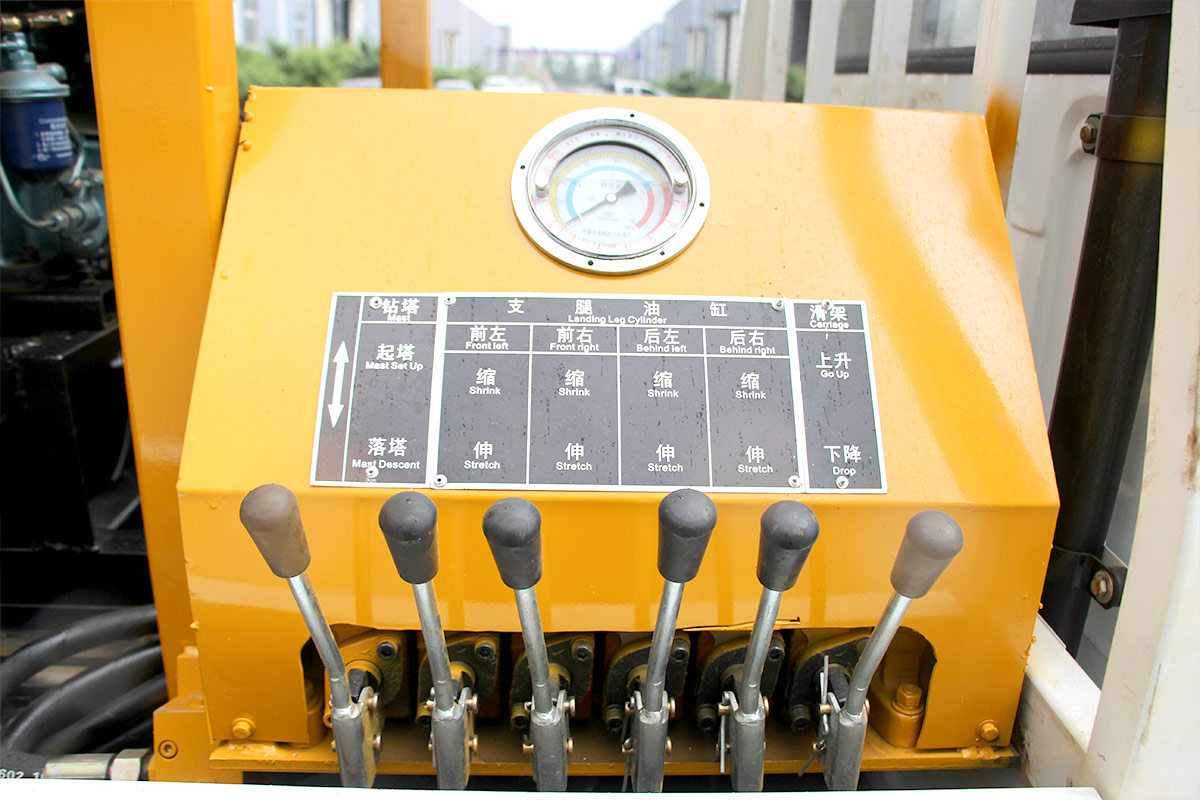

3. Drilling tower is hydraulic landing manual folding tower, easy to operate, safe and convenient.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us!
| Model | HW-230C | |
| Drilling depth (m) | 30-230 | |
| Drilling hole dia. (mm) | 300-75 | |
| Drilling angle (°) | 90-75 | |
| Spindle speed (r/min) | 64 -557 | |
| Spindle stroke (mm) | 450 | |
| Max winch lift capacity (kg) | 1600 | |
| Main winch steel wire capacity (m) | 35 | |
| Reel lifting speed (m/s) | 0. 12-0. 95 | |
| steel wire dia. (mm) | 12. 5 | |
| Drilling tower height (mm) | 6500 | |
| Weight without engine (kg) | 970 | |
| Diesel engine | ZS11 15 | |
| Rated power 14. 7kw/2200rpm | ||
| Mud pump | BW-160 | |

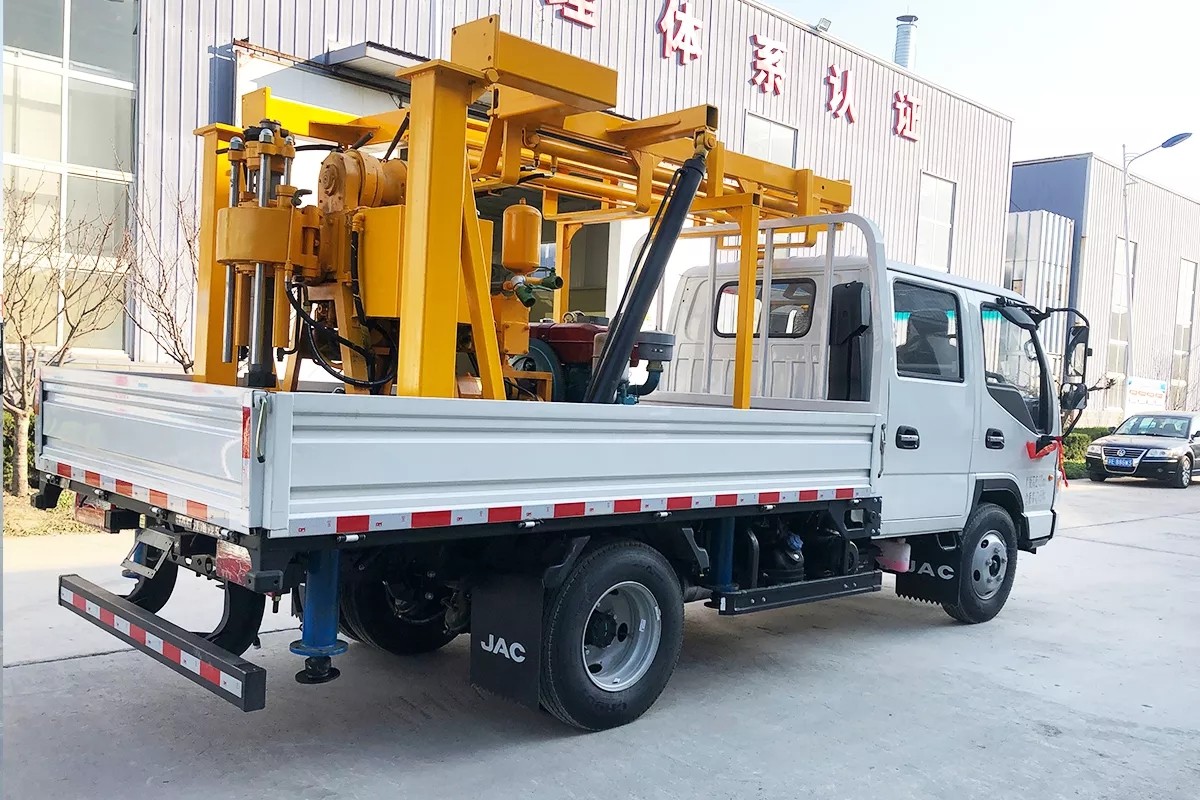

| vehicle chassis | Mode I | Tangjun Jinlika double-column bar light truck |
| Drive type | 4*2 | |
| Model | Quanchai 4B2-95C40 | |
| Diesel engine | Emission standard | GB3847-2005, GB17691-2005 |
| Rated power (kW) | 70 | |
