HW190S Hydraulic Drilling Rig
    Drilling depth: 190m
    Drilling diameter: 75-300mm
    Rated Power: 13.2Kw
Back to list

Crazy Engineering Day Sale, submit form to get discounts and coupons on your order

>>> Product Details <<<

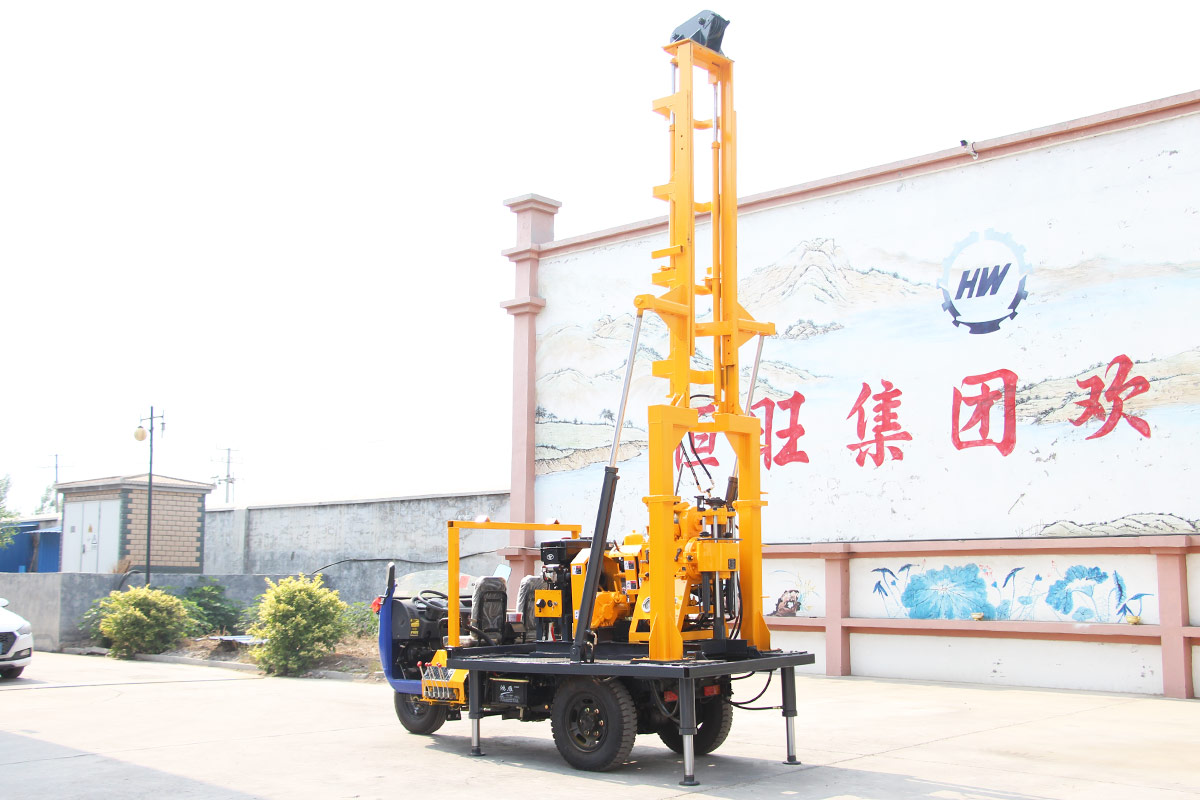

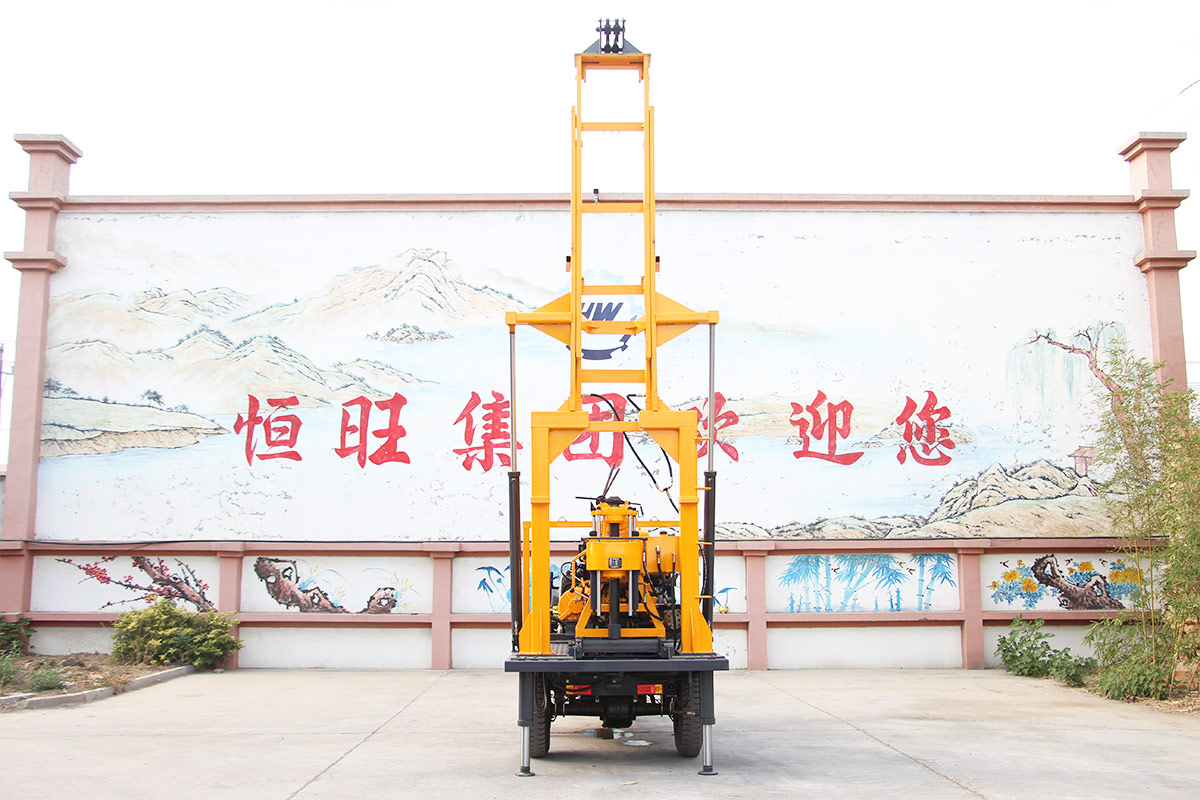

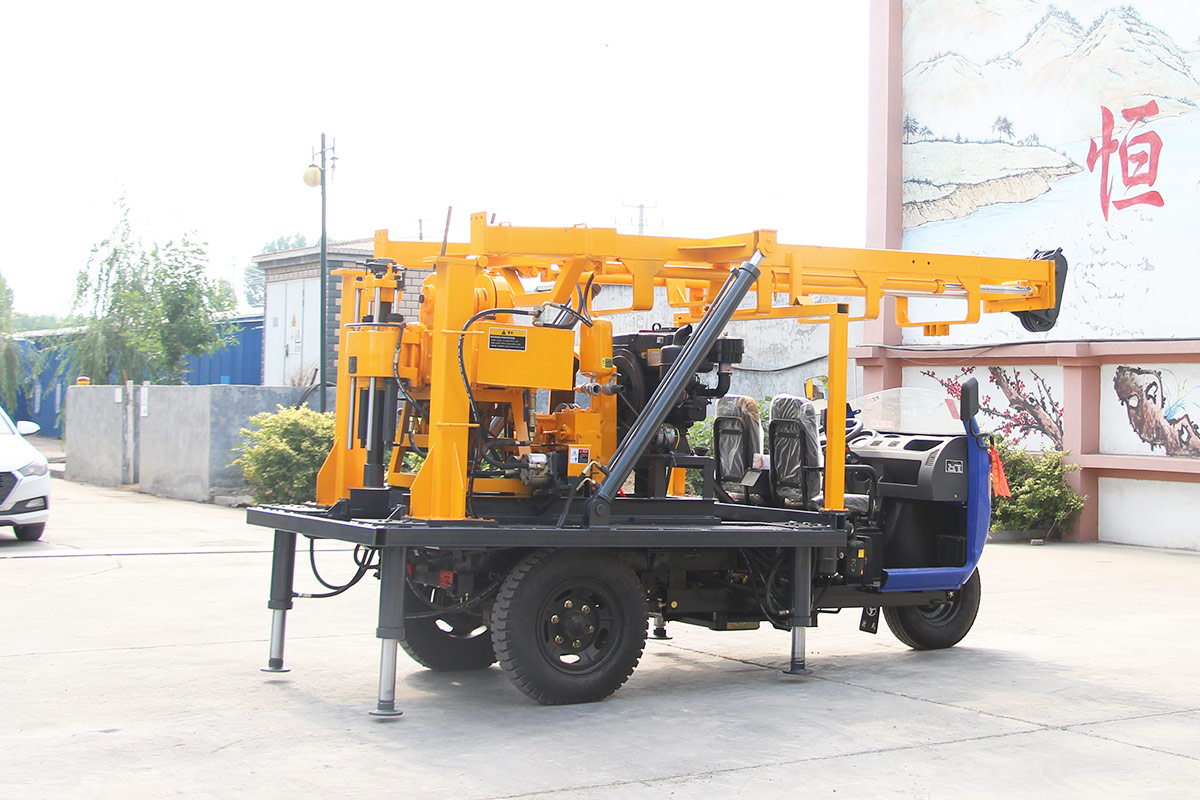

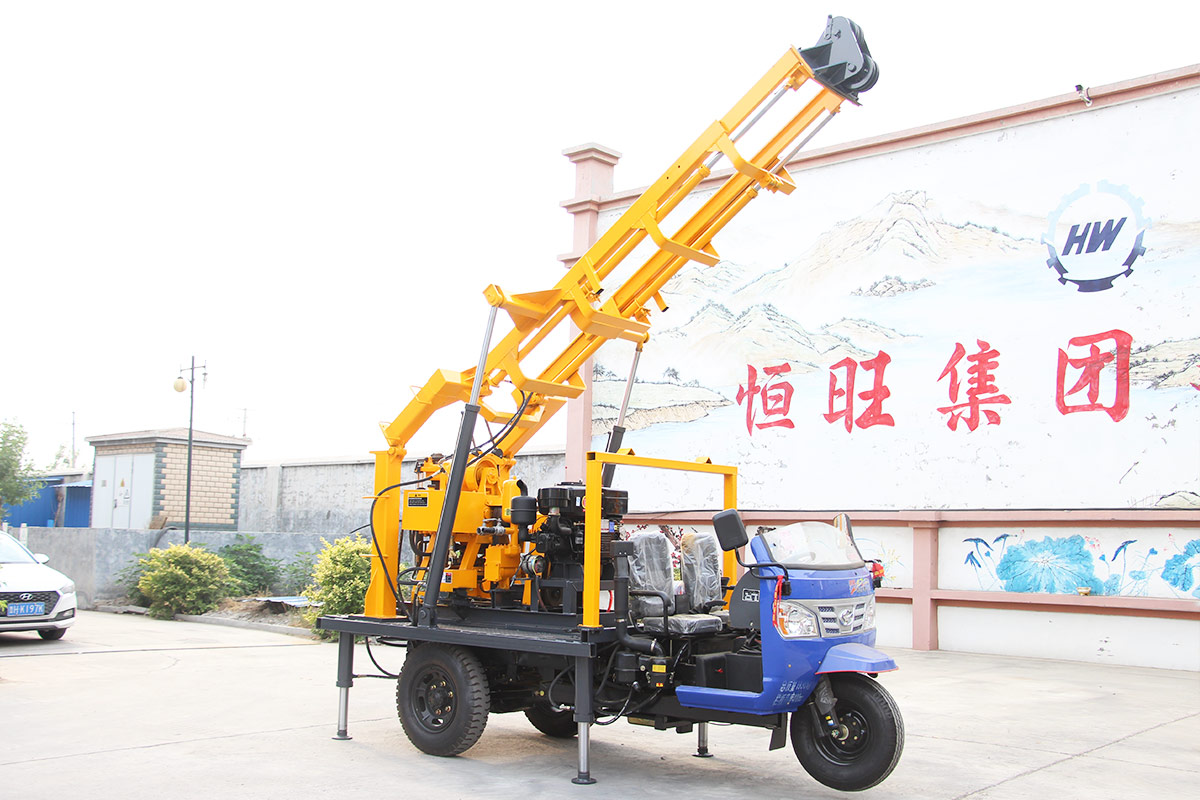

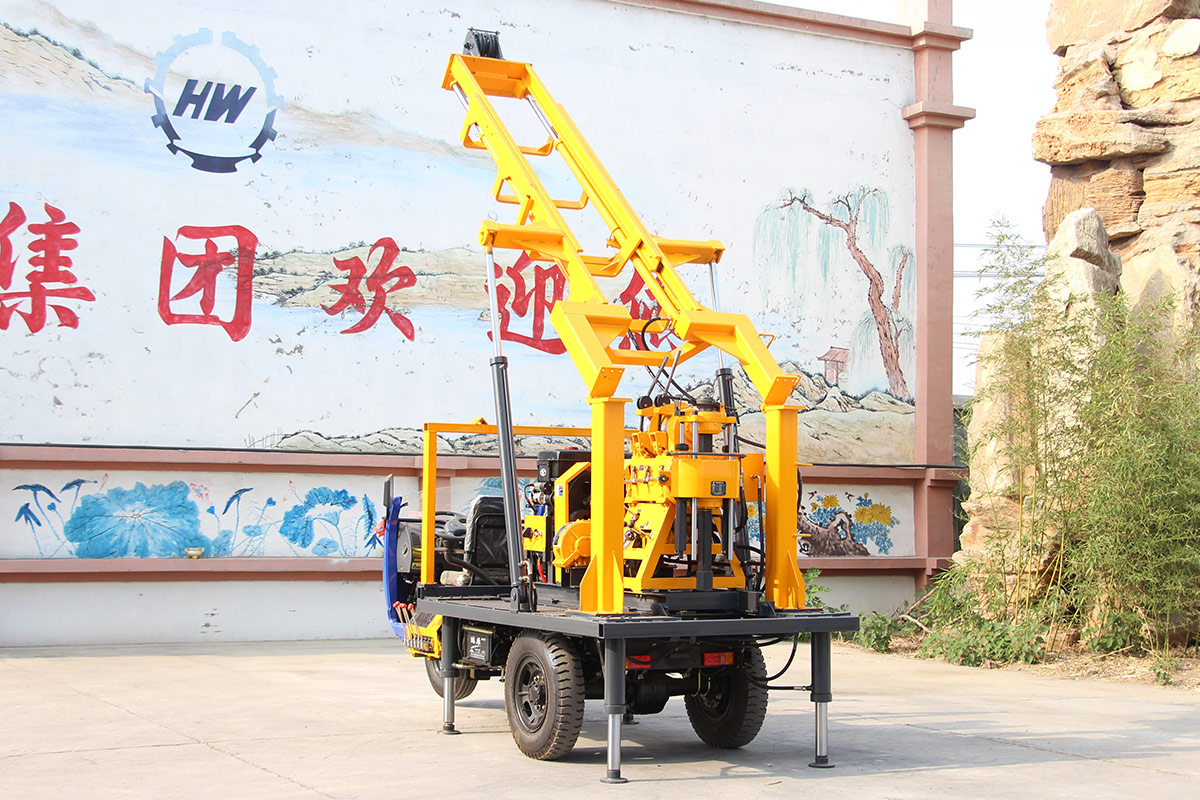

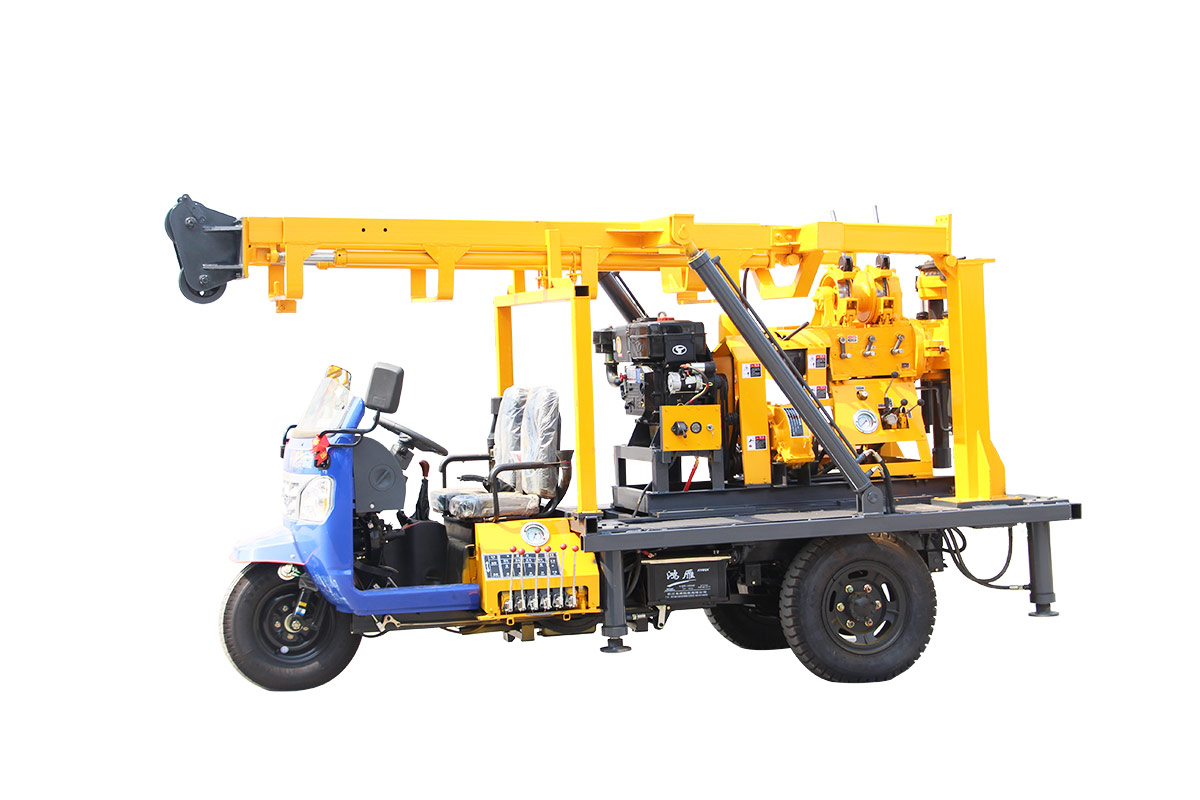

Tricycle drilling rig is designed to meet the needs of high speed, high efficiency and high mobility in field drilling. The machine is reasonable in structure, simple in operation, convenient in maintenance and transportation, and can be hoisted without crane after being transported to the working site. It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, various structural inspection holes on concrete, river embankments, subgrade grouting hole and direct grouting , civil water wells and ground temperature central air conditioning.

Main Features:

1. Equipped with BW-160 or BW-250 mud pump, high pressure ,big flow , it ensures to reach drilling depth and diameter.

2. Drilling rig self-equipped with mobile devices, drilling rig can be achieved before and after the host itself to facilitate the operation of the wellhead.

3. Drilling tower is hydraulic landing manual folding tower, easy to operate, safe and convenient.


Parameter

Here are the key specifications for this product model. Want more details? Please contact us!

Whole machine parameters

Model

HW-190S

Drilling depth (m)

190

Open hole dia. (mm)

500 (Soil), 220 (Rocks)

End hole dia. (mm)

75

Drill rod dia. (mm)

42, 50

drill angle (°)

90-75

Matching power (kW)

13.2

Weight (kg)

2800

Dimension (L*W*H) (m)

4*1. 7*2. 3

Spindle

Speed (r/min)

130/300/480/730/830/1045

Stroke (mm)

450

Tricycle chassis

Model

wuzheng
7YP-1475D1

Emission standard

GB19756-2005 (Ⅱ)

Rated power (kW)

18. 3

Rated speed (r/min)

2200

Drill Tower

Rated load (ton)

18

Effective height (m)

6.5

Mud pump

Flow (L/min)

160

Max. pressure (Mpa)

1.3

reciprocal times /mi n

165

Hose

Inlet hose dia. (mm)

51

Outlet hose dia. (mm)

32

Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
