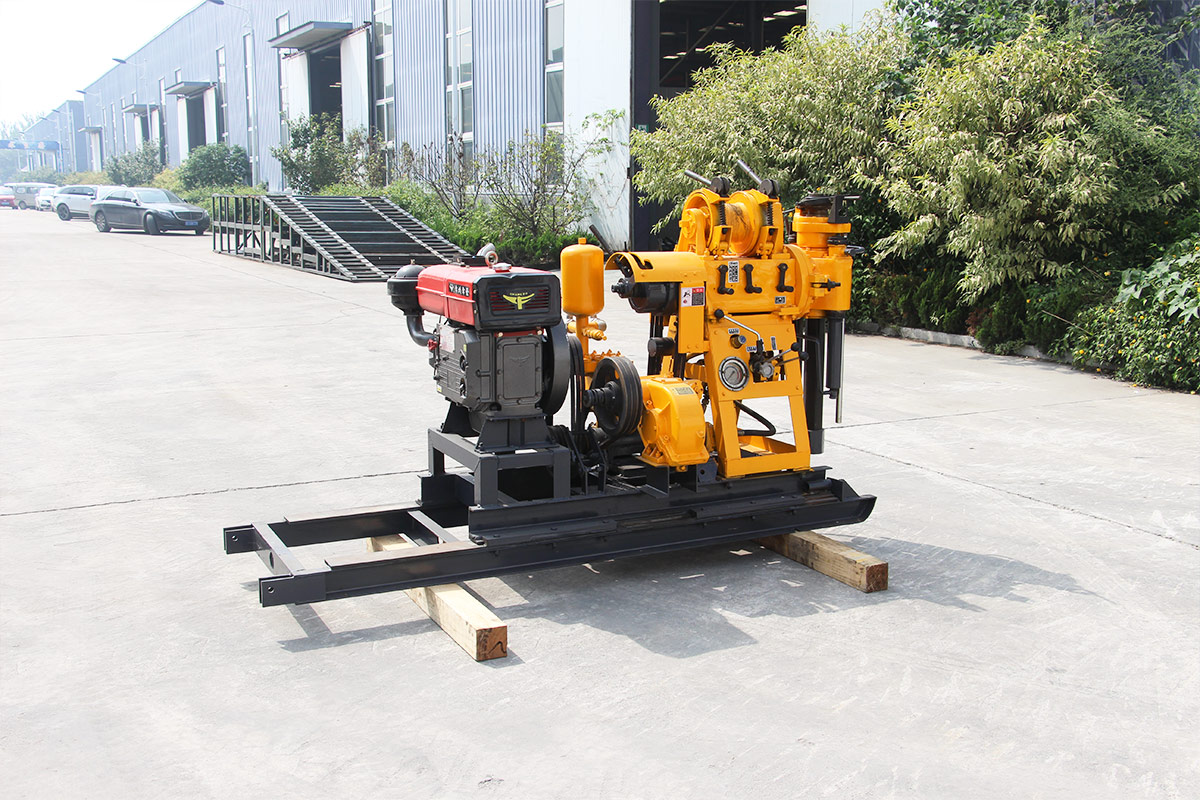

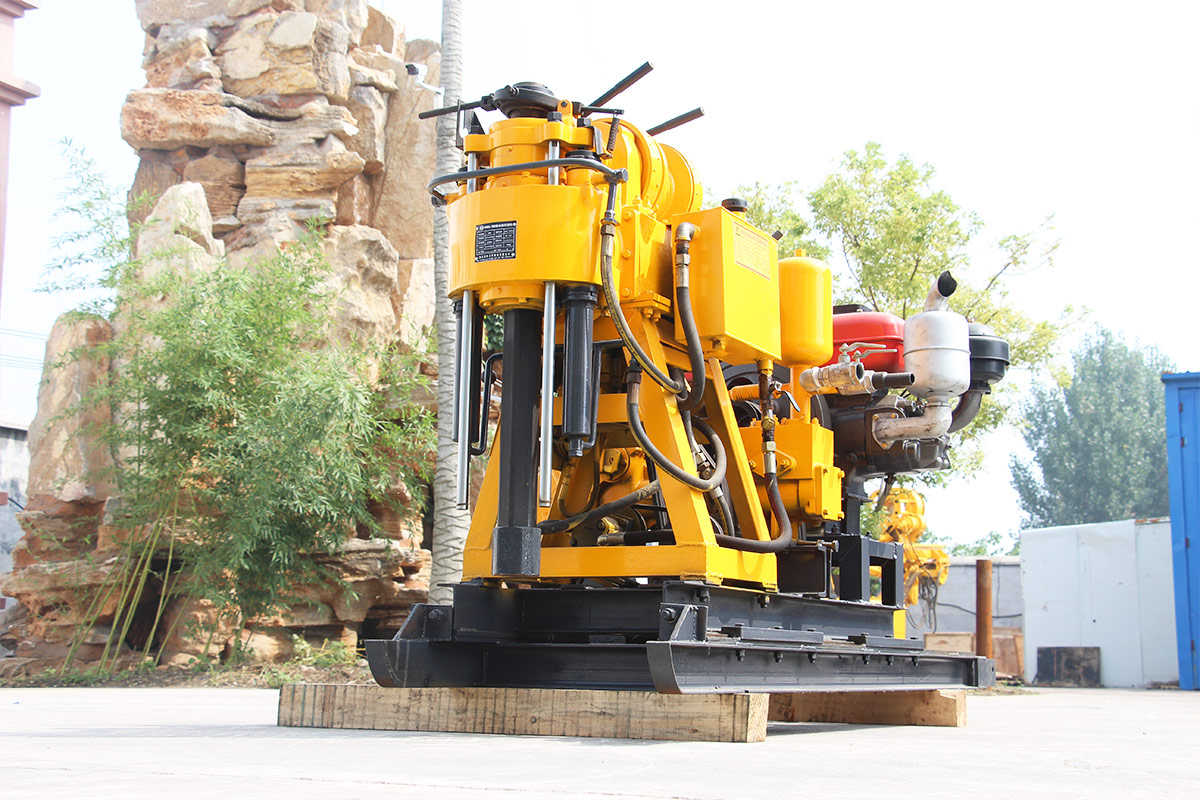

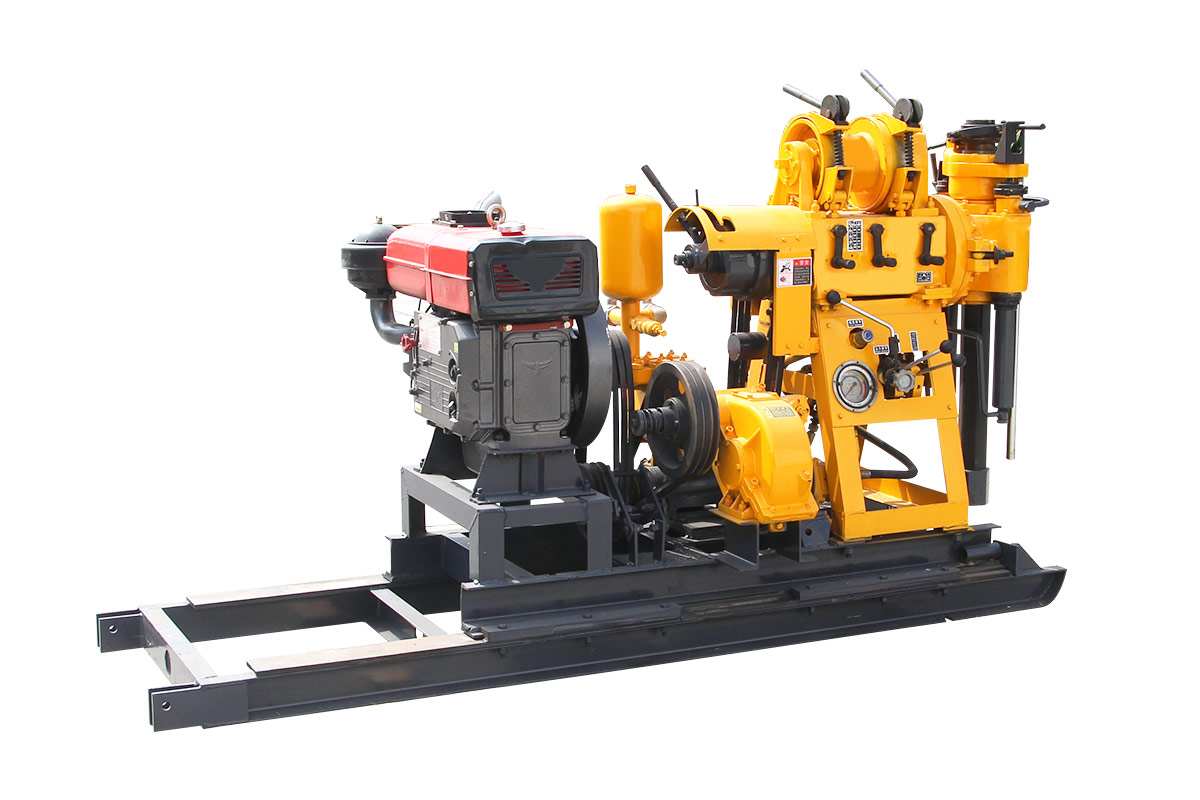

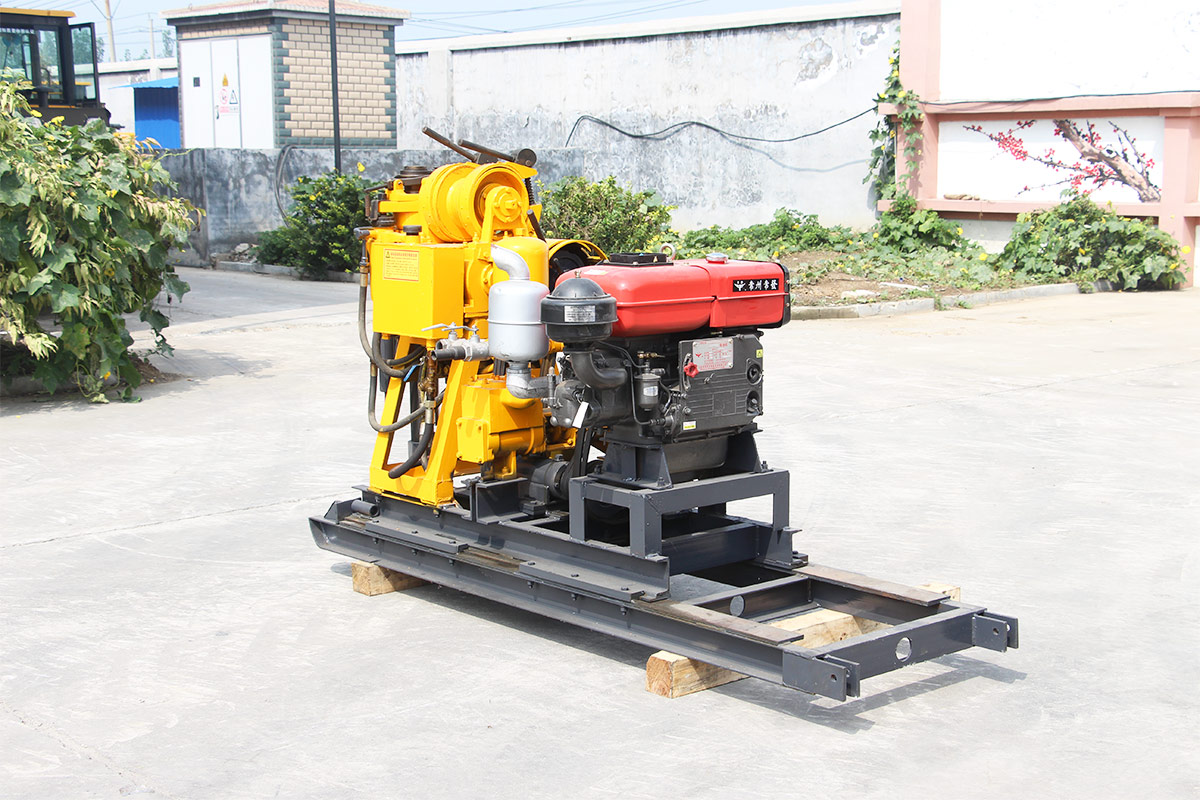

HW-190YY Hydraulic Drilling Rig
-
Drilling depth: 190m
Drilling diameter: 75-300mm
Rated Power: 13.2kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<
Huixin Machinery launched HW-190 full hydraulic drilling rig, which is a drilling rig equipment that can meet various construction needs.
It is mainly suitable for drilling wells in industry and agriculture, as well as the preliminary exploration work of mining projects such as gold mines, coal mines, and rare earth mines.
Designed to improve efficiency and reduce fuel consumption.
Main feature:
1. Adopt hydraulic automatic drilling mechanism to improve drilling efficiency and reduce labor intensity;
2. Huixin Machinery is specially designed for the perfect match between the engine and the hydraulic system, which improves performance and reduces fuel consumption by 7%;
3. The fuselage design is compact and lightweight, which can work in plains and mountainous areas with less damage to vegetation.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us!
Machine specification | Model(YY type configuration moving slipway) | HW-190/190YY |
Drilling depth(m) | 190 | |
open hole dia. (mm) | 500(Soil), 220(Rocks) | |
End hole dia. (mm) | 75 | |
Drill rod dia. (mm) | 42, 50 | |
drill angle (°) | 90-75 | |

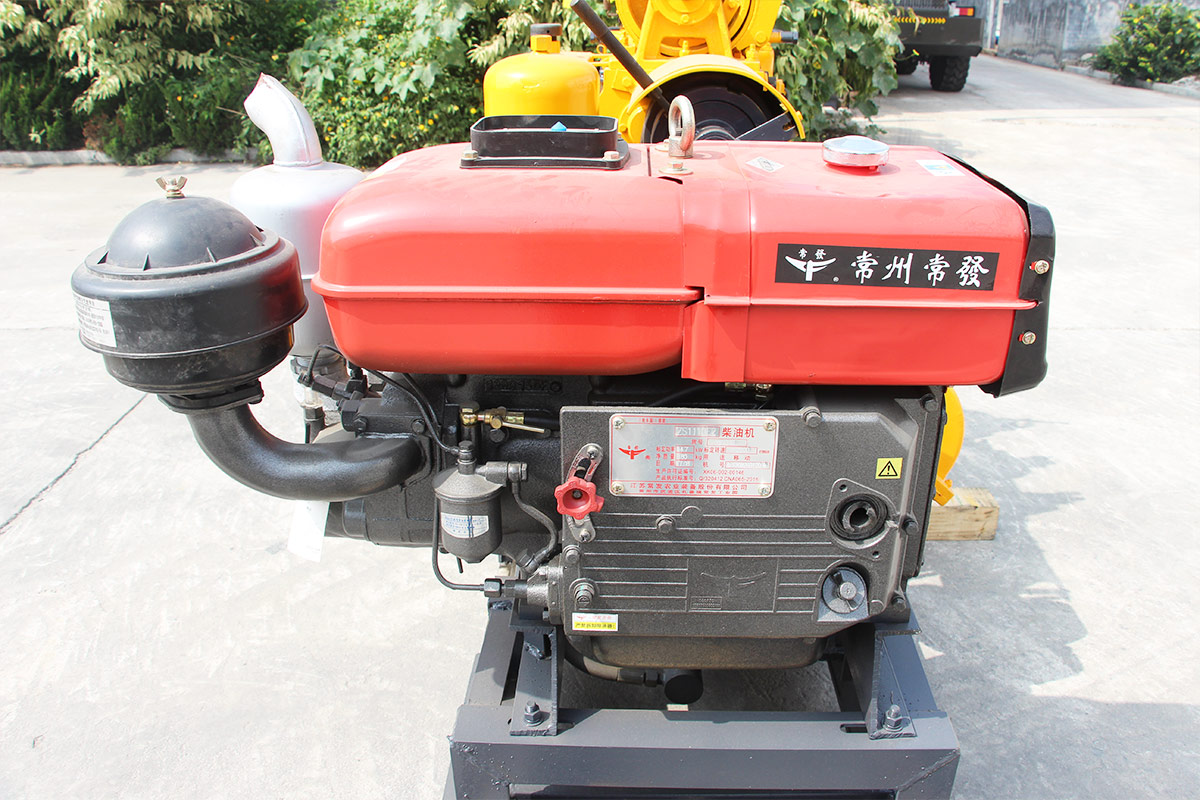

Matching engine power (kW) | 13.2 | |
Weight without engine (kg) | 620/750 | |
Machine Dimension L*W*H (m) | 2. 4*0. 8*1. 4 | |

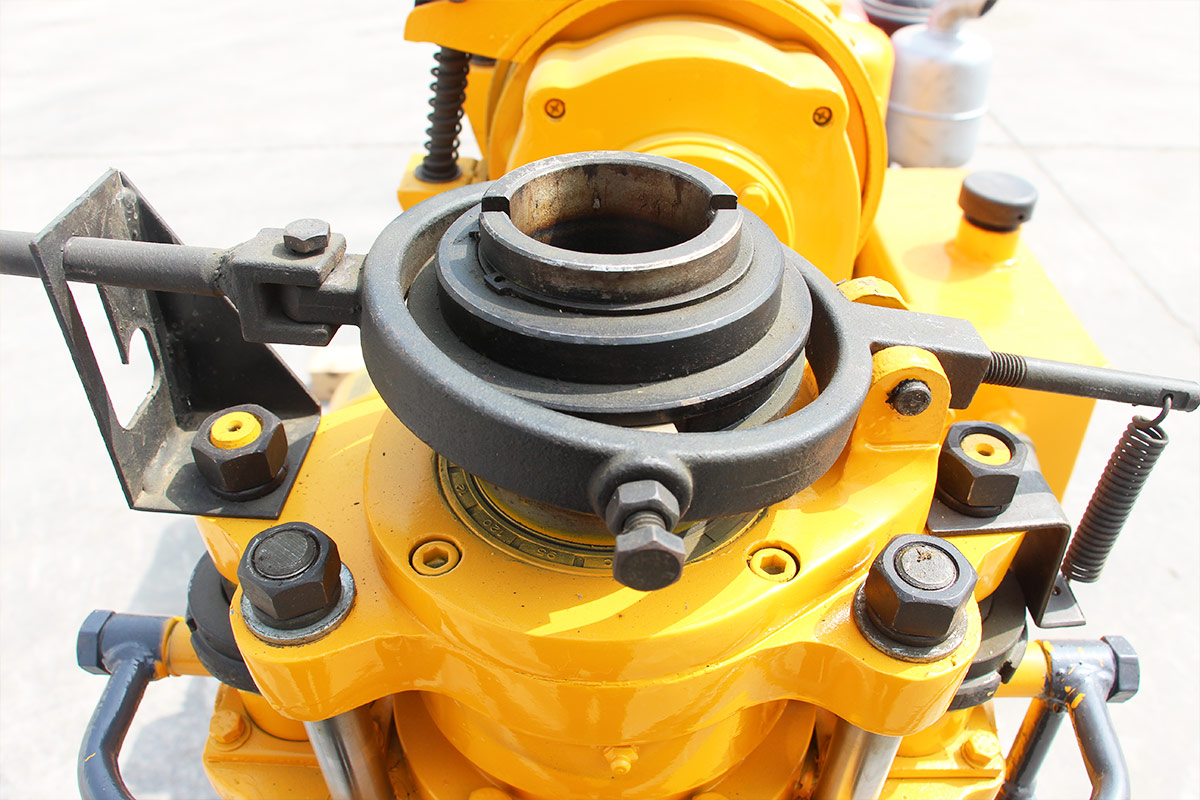

Spindle | speed (r/min) | 130/300/480/730/830/1045 |
Stroke (mm) | 450 | |
Winch | Single rope lift force (kg) | 2100 |
Single rope lift speed (m/s) | 0. 35-2. 23 | |
Rope dia. (mm) | φ9.3 | |
Rope capacity(m) | 27 | |
Drill Mast | Rated load (ton) | 18 |
Height (m) | 6.5 | |
Mud pump | Flow (L/Min) | 95 |
Max. pressure (MPa) | 1.2 | |
back and forth times/min | 93 | |
Hose | Inlet hose dia. (mm) | 51 |
Outlet hose dia. (mm) | 32 |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
