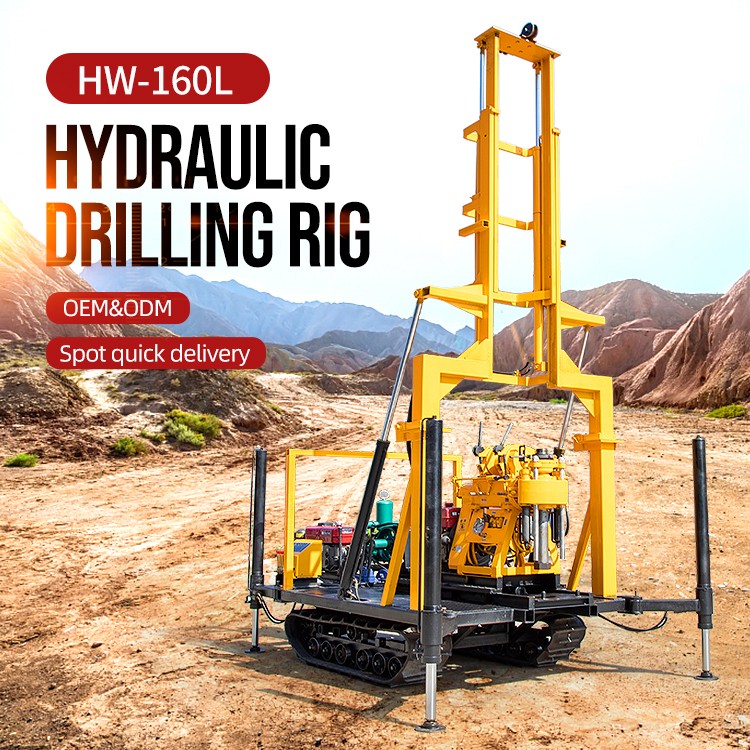

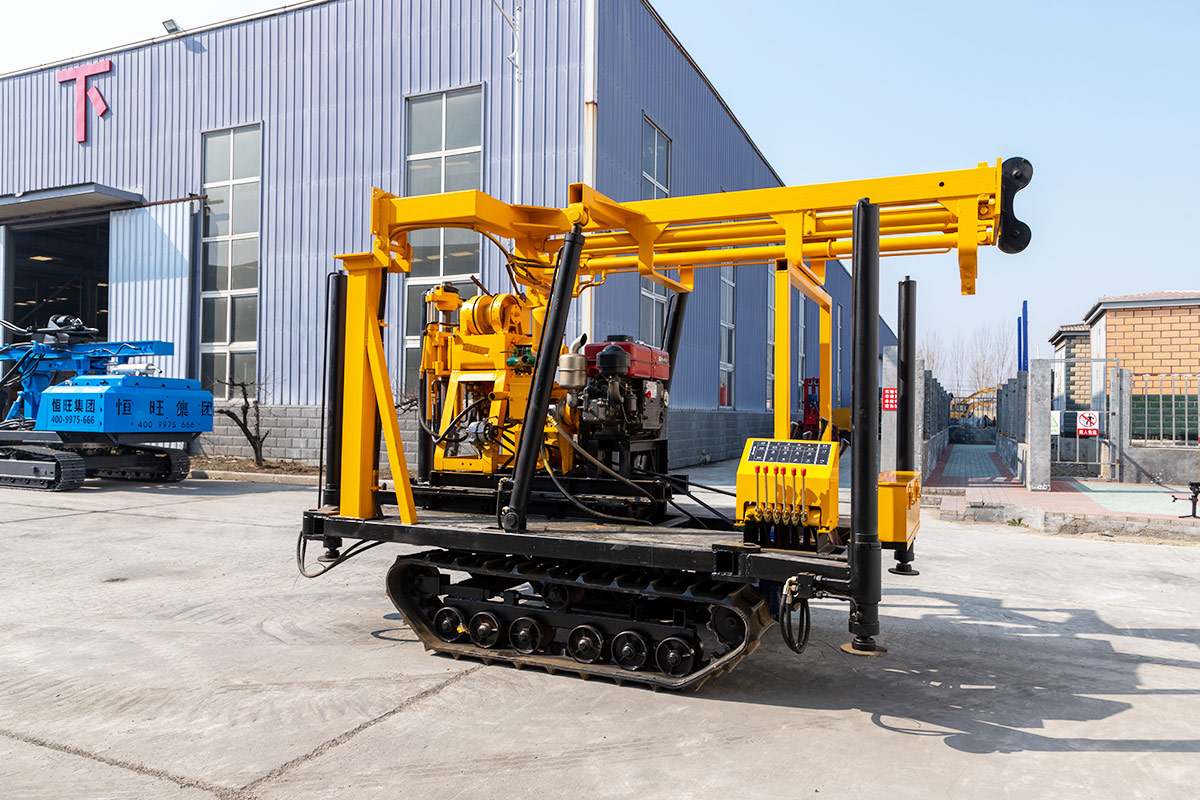

HW-160L Hydraulic Drilling Rig
-
Drilling diameter: 75-325mm
Drilling depth: 160m
Rated Power: 13.2Kw
Crazy Engineering Day Sale, submit form to get discounts and coupons on your order
>>> Product Details <<<

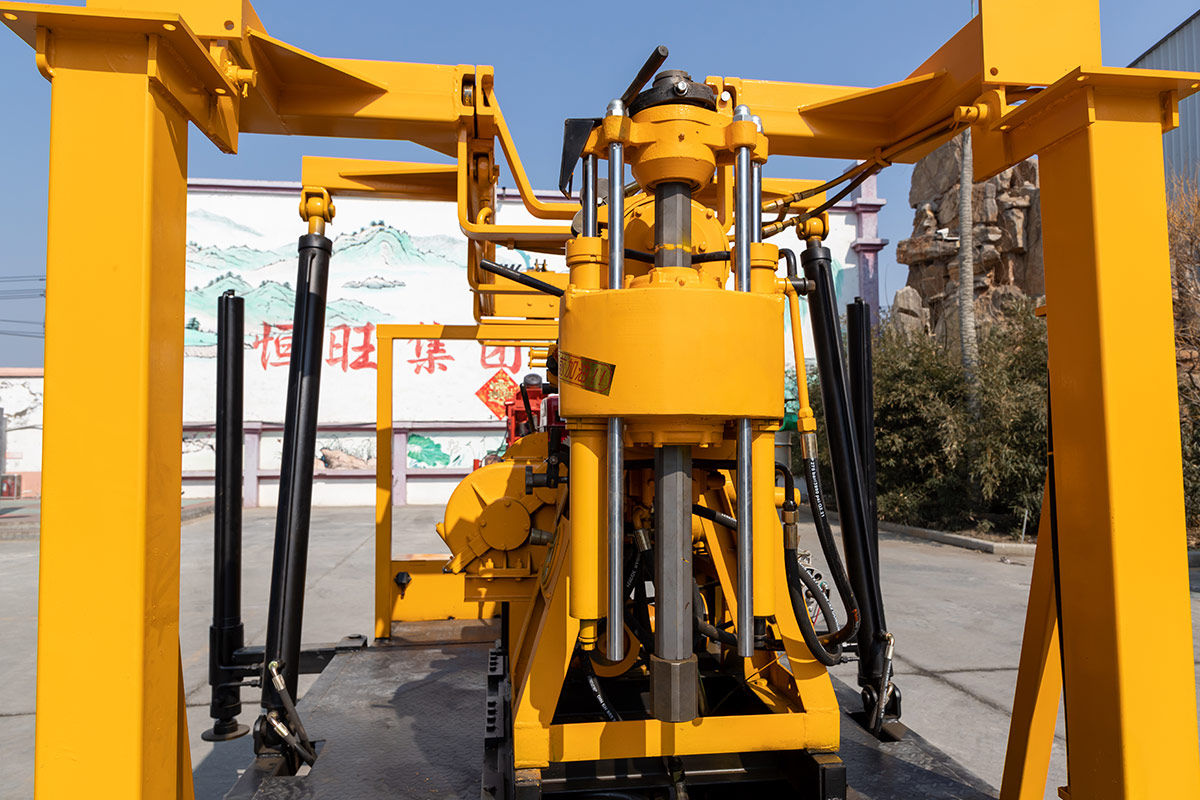

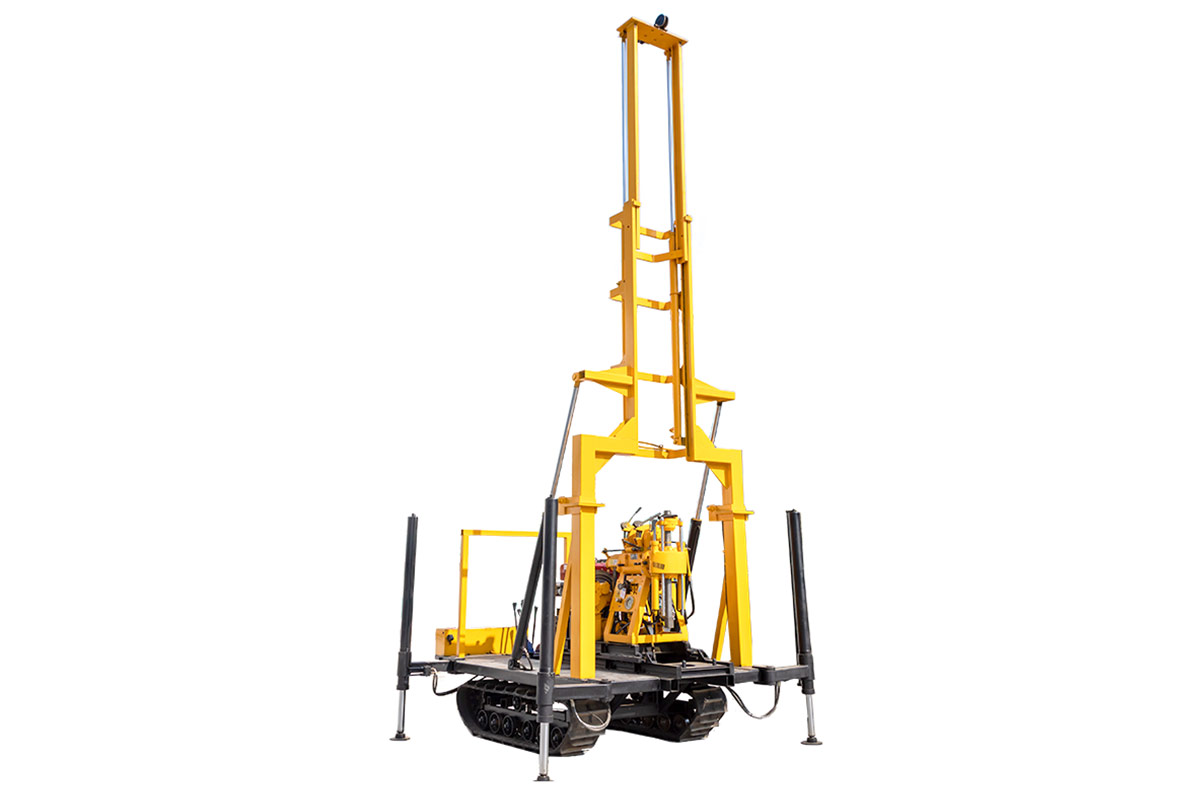

1. This drilling rig use the automatic telescopic drilling tower, supported by two high strength cylinder.and a set of Hydraulic valve control the drilling tower up and down. The operation is saving of time and labor, safety and reliable, to maximize create the benefits for users.

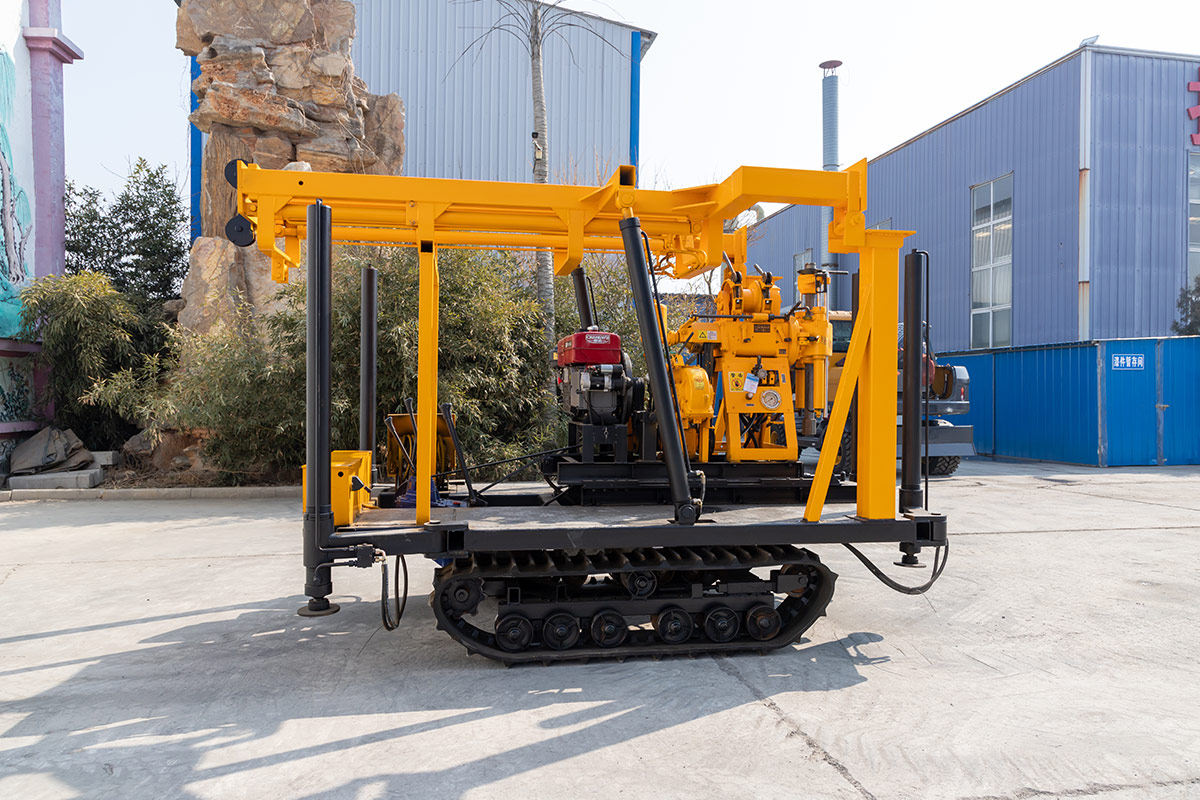

2. The Chassis use the Rubber tracks, Lighter weight can reduce the voice from the vehicle moving, and reduce the vehicle body vibration, then can reduce the fuel consumption. it can walk on the city road and dosen't hurt the road.
3. The Chassis comes with hydraulic legs, can use for rig leveling, loading and unloading, it can also can be used as ancillary support when machine working4, 24Ve1ectric-start diesel engine reduces the operator's labor intensity.

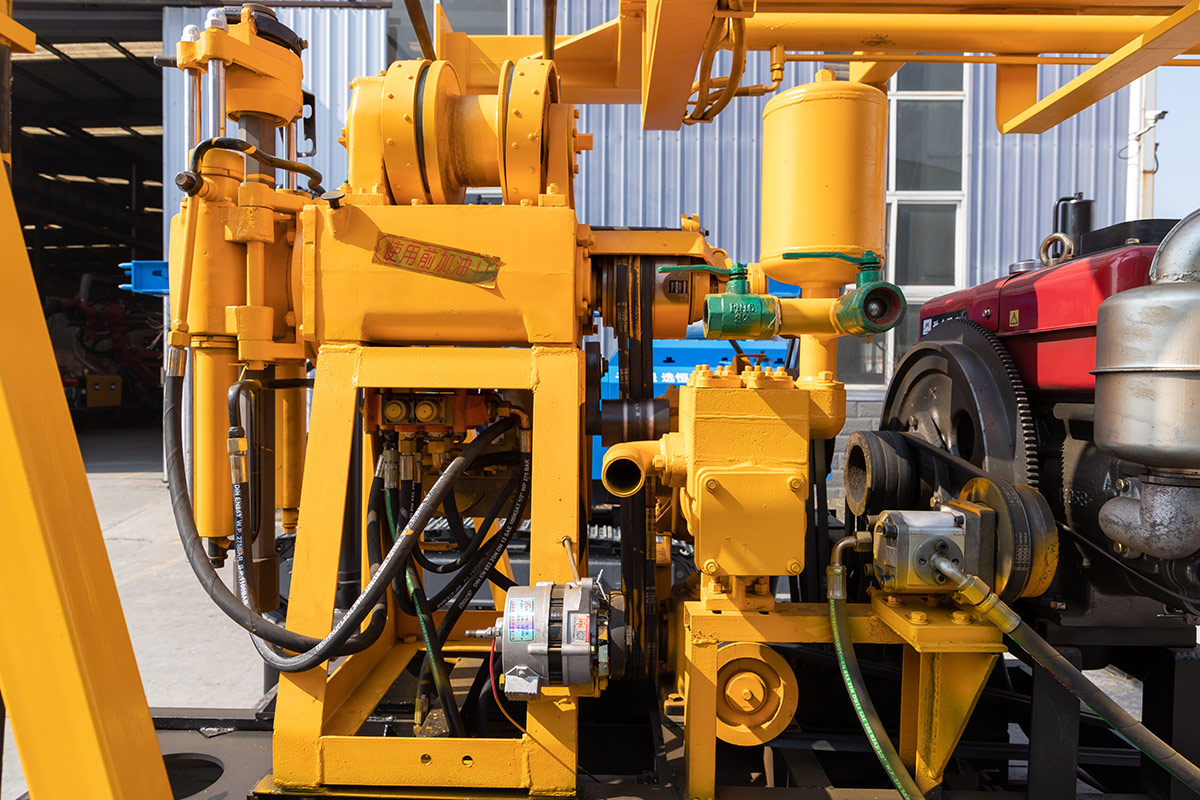

4. It use the 24v electric start diesel engine, reducing the operator's labor intensity, especially in the cold season, when diesel engine difficult to start, it showed a great advantage.

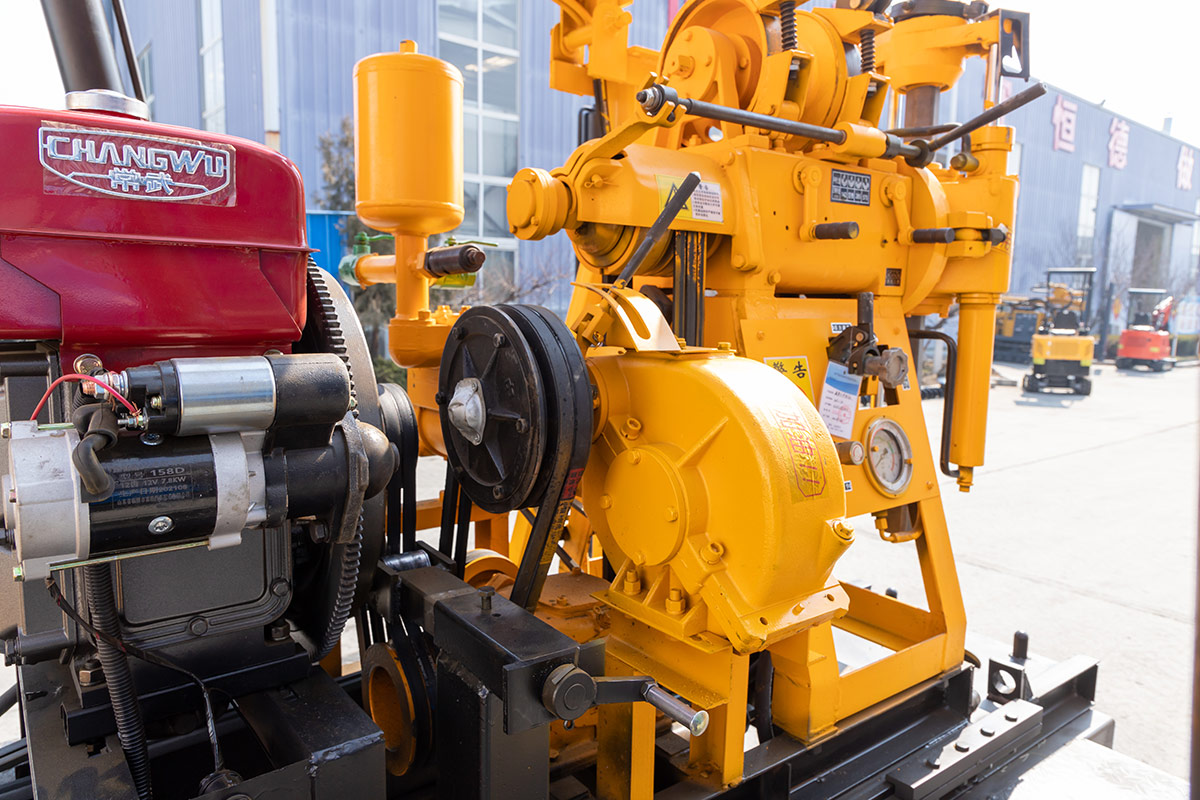

5. The machine supporting Bw-160 mud pump, the flow and lift of pump is big, and easy maintenance, the spare parts can easy purchase in all over the country.
6. Customer can choose to add the screw pipe machine (75-168mm), Improve work efficiency and reduce labor costs.
7. We have model HW-160L/HW-190L/HW-230L can choose.
| Model | HW-160L | |
Drilling depth (m) | 160 | ||
Open hole dia. (mm) | 500, 220 | ||
End hole dia. (mm) | 75 | ||
Drill rod dia. (mm) | 42, 50 | ||
drill angle (°) | 90-75 | ||
Matching engine power (kW) | 13.2 | ||
Weight without power (kg) | 3350 | ||
Dimension L*W*H (m) | 3.8*1.95*2. 7 | ||
(Spindle) | Speed (r/min) | 142/285/570 | |
Stroke (mm) | 450 | ||
| Crawler size (mm) | 350*90*48 | |
Climbing angle (°) | 20° | ||
Moving speed (km/h) | 10 | ||
Hydraulic leg valid height (mm) | 1300 | ||
(Drill tower) | Rated load (ton) | 18 | |
Height (m) | 6.5 | ||
(Mud pump) | Flow (L/min) | 160 | |
Max. pressure (MPa) | 1.3 | ||
Reciprocating times/min | 165 | ||
Inlet hose dia. (mm) | 51 | ||
Outlet hose dia. (mm) | 32 | ||
Hengwang Group hydraulic water well drilling rig is a professional water well drilling equipment, mainly used for industrial drilling, low temperature drilling and agricultural drilling. Wireline coring rigs can be used for geological exploration as well as SPT soil testing.
Submit the form for more parameters and quotes.
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
