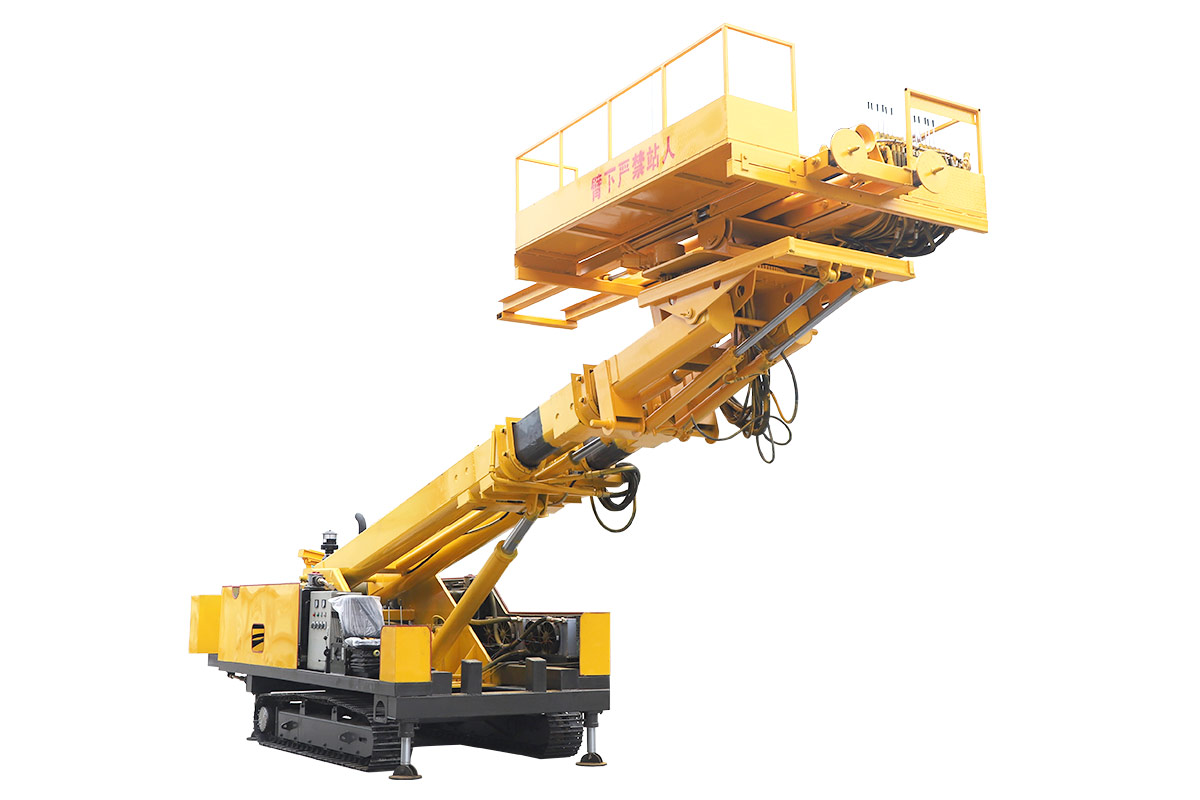

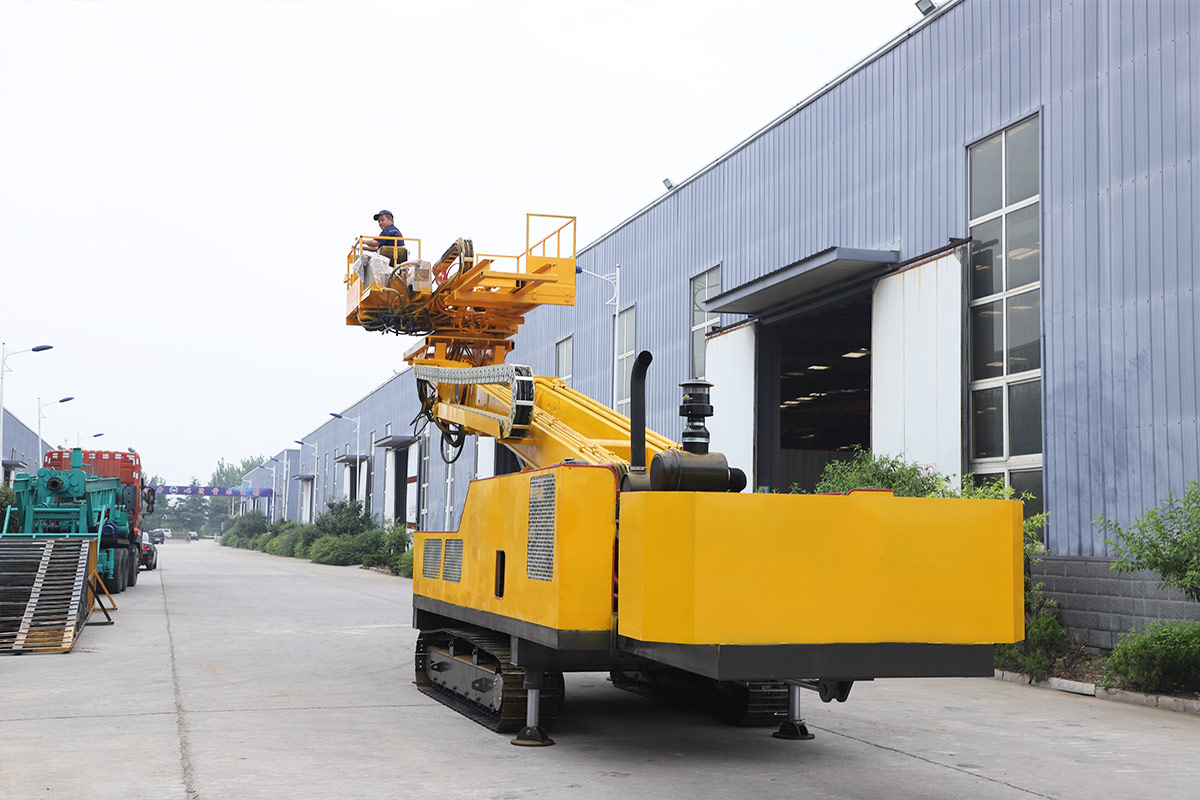

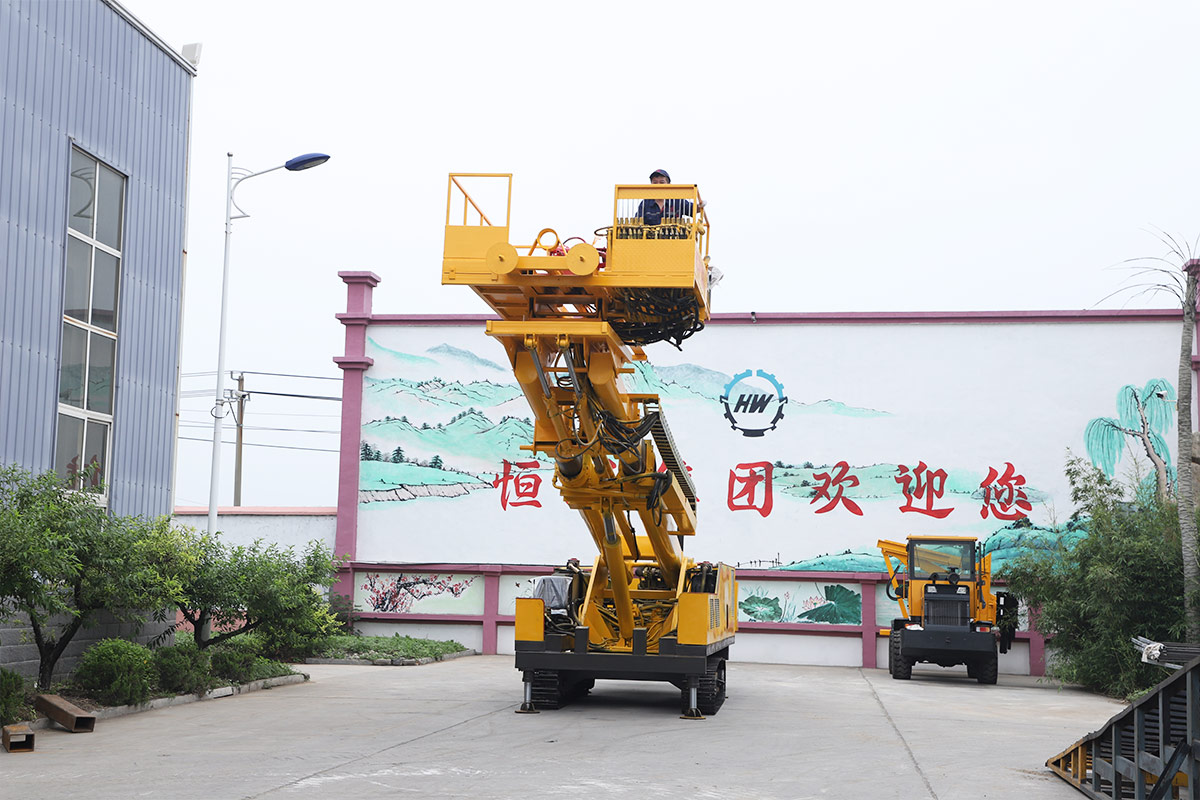

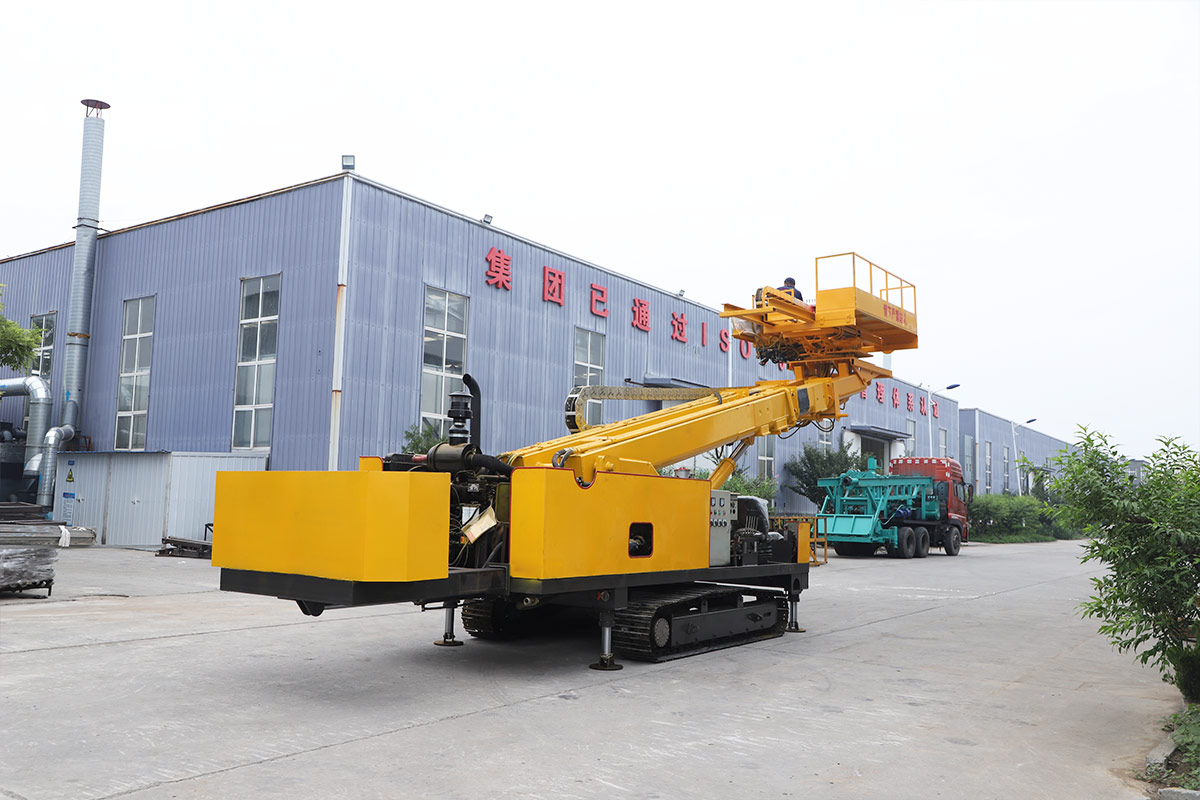

12m Crawler Rock Drilling Machine
-
Drill diameter: 0～300mm
Drill depth (m): 0-40m
Drilling angle: 0-90
The crawler rock drill is a new, efficient and fast mechanized hydraulic drilling equipment independently developed and manufactured by our company. The drilling speed is fast, the movement is convenient, and it can drill soil and rocks. It is suitable for foundation pit slope protection and other environments. According to the customer's construction environment, different heights of the drilling rig can be customized.
The drilling rig adopts full hydraulic control mode and crawler walking device, which has the characteristics of high efficiency, specificity, and fast reaming speed.
Features:

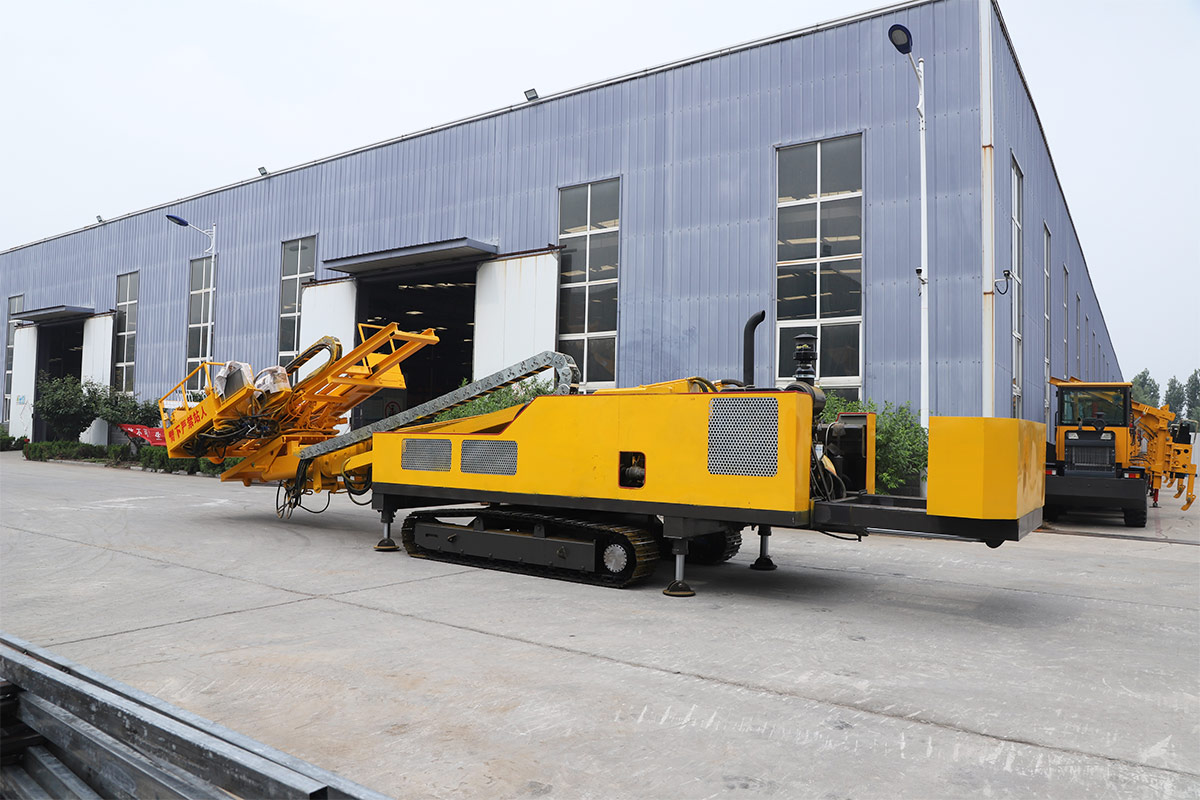

1. It adopts crawler walking device, which can move and operate in harsh construction environment, and has strong climbing abilit;

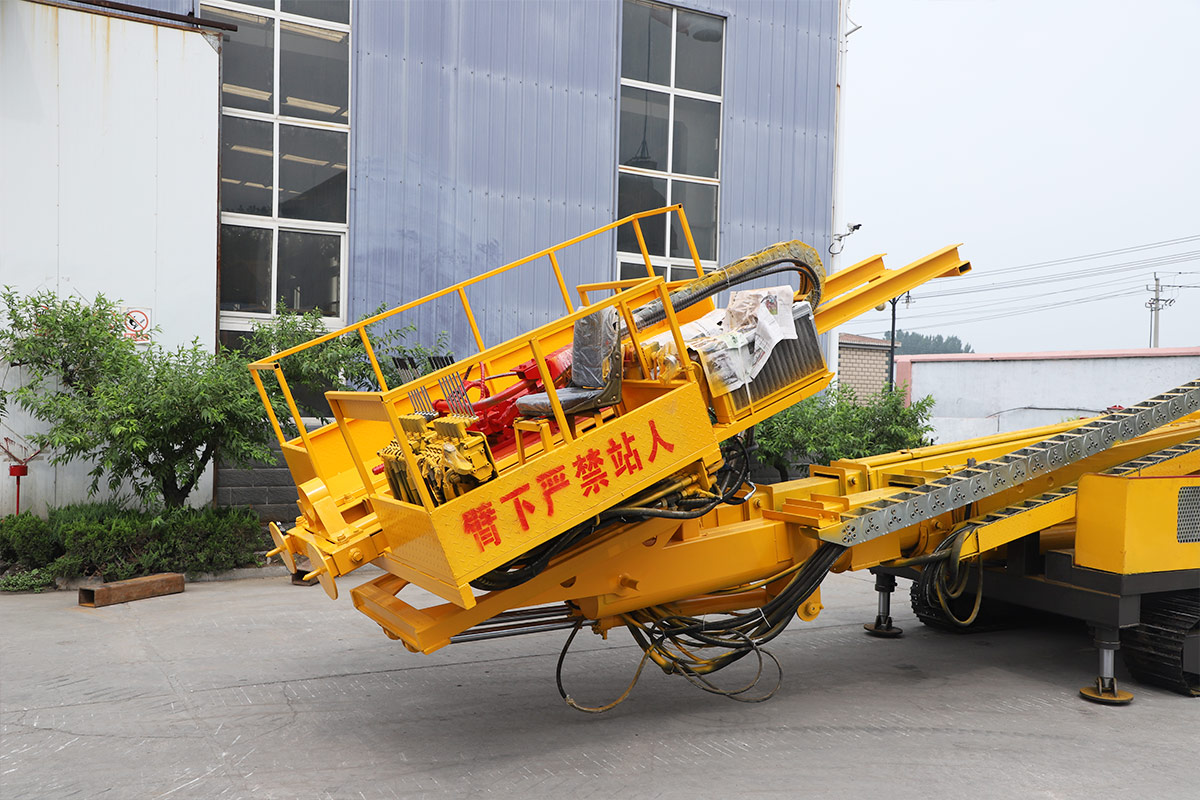

2. Impact drill power head, operating up and down the working area, convenient for construction and working condition exploration;
3. Hydraulic valve control, convenient operation, multi-function control box, can realize the start and emergency stop of the drilling rig.
Main technical parameters | |
Height (m) | 12 |
Track (mm) | 3500*2300 |
Track shoe width (mm) | 400 |
Turn down (°) | 360° |
Big arm | Double big arms three sections |
Motor power (kw) | 78 |

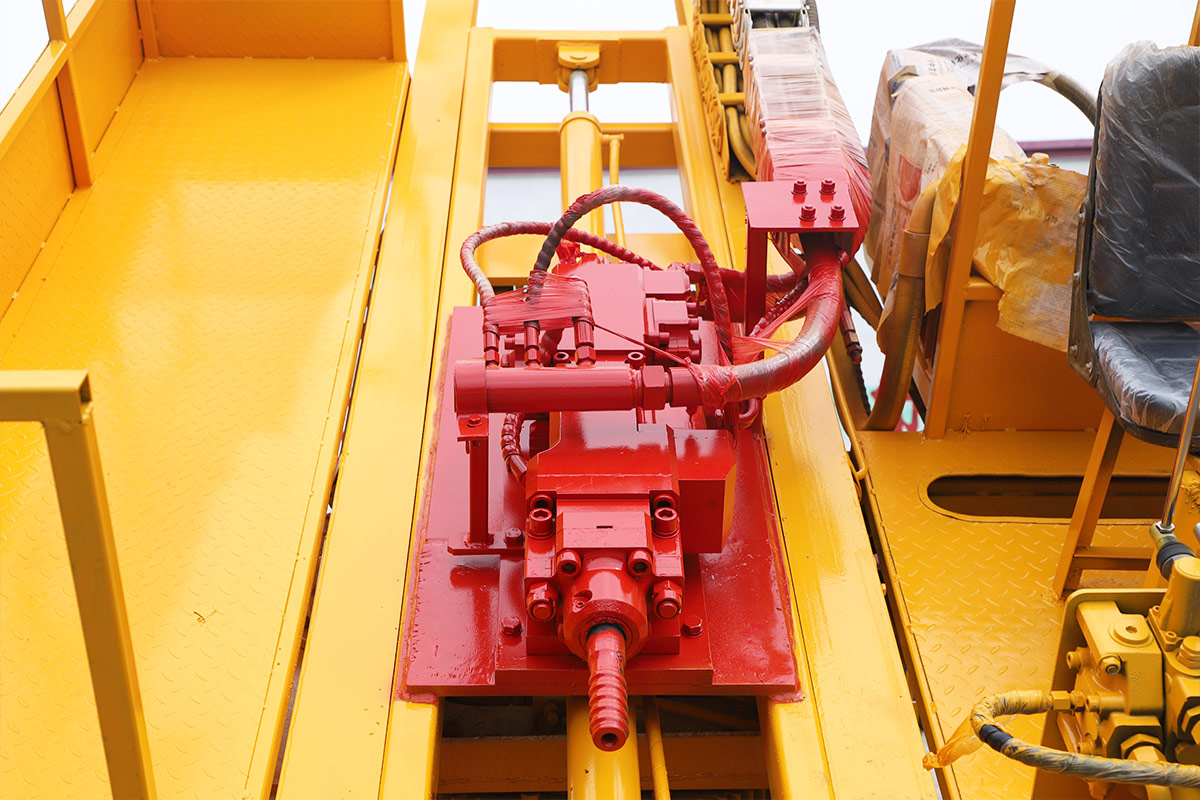

Power head model | Double hydraulic power head |
Reducer torque (N m) | 4500-7000 |
Drilling angle | Can drill flat holes / drill oblique holes / drill vertical holes |
Oil pump | 63/63/32 |
Oil pressure (Mpa) | 25 |
Drilling diameter (mm) | 0-300 |
Depth (m) | 0-40 |
