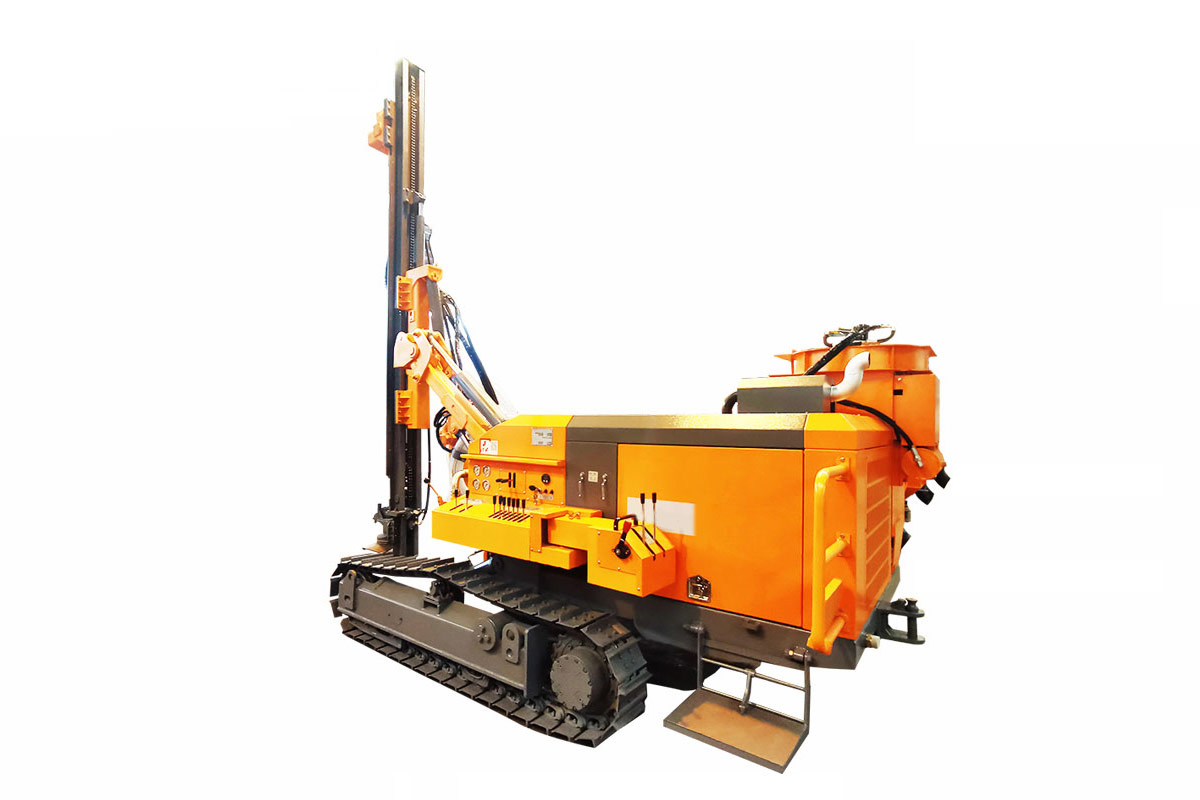

HW925 Separated DTH Surface Drill Rig
-
Rated Power: 58KW
Drill Depth: 30m
Drill Diameter: 110-138 mm
Features:
1. The own rotation unit driven by double cycloid motor for more powerful rotation and less drill tools jamming.
2. Standard equipped with plunger piston motor for greater climbility and more reliable quality.
3. Standard equipped with box type tramming beam and international standard construction machinery tramming tracks.
4. Equipped with the own developed dry dust collection system for high efficiency & more eco-friendly.
Parameter
Here are the key specifications for this product model. Want more details? Please contact us!
| Model | HW925 | HW925-1 |
| Engine | YUNCHAI | YUCHAI |
| Power (KW) | 58 | 73.5 |
| Drilling diameter (mm) | φ110-140 | φ110-140 |
| Maximum working torque (N.m) | 3200 | 3200 |
| Rotation speed (rpm) | 0-120 | 0-120 |
| Propulsion (kN) | 20 | 20 |
| Lifting force (kN) | 45 | 45 |
| Walking speed (km/h) | 3 | 3 |
| Shipping Dimensions (mm) | 5700*2324*2550 | 5700*2324*2550 |
| Dust collection method | Dry dust collection |
