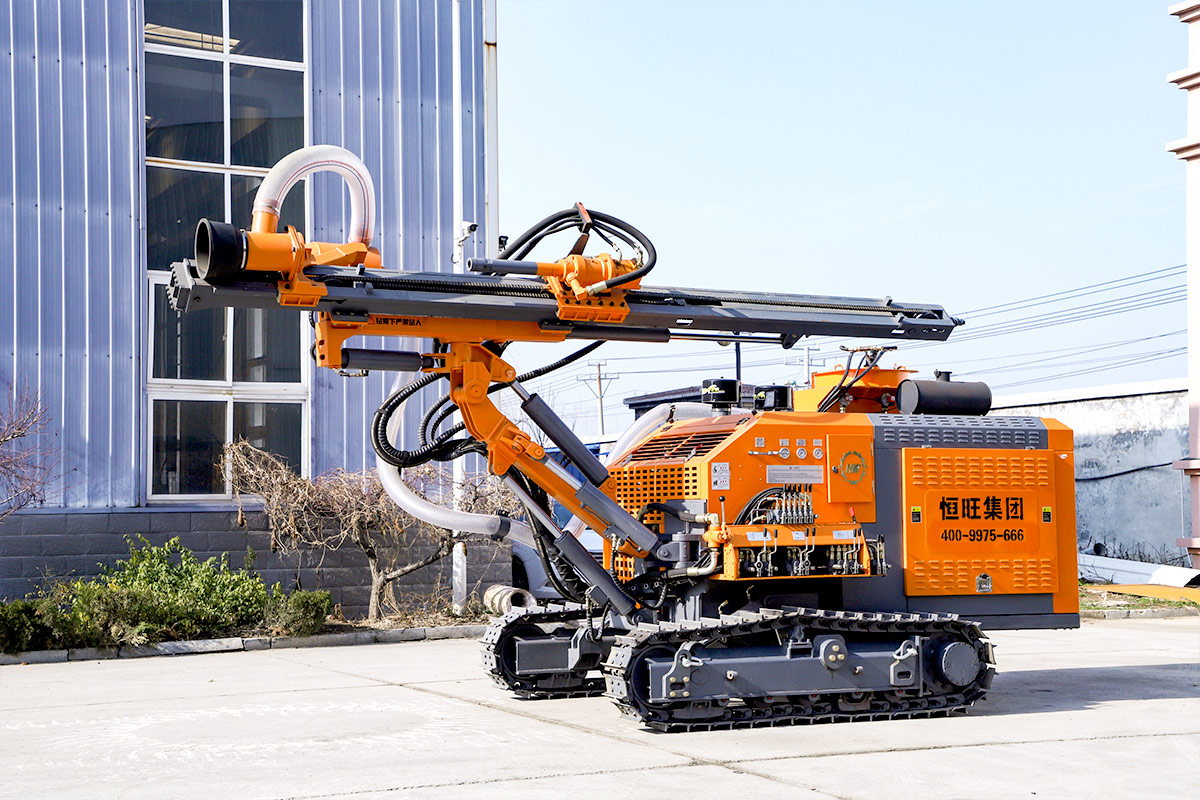

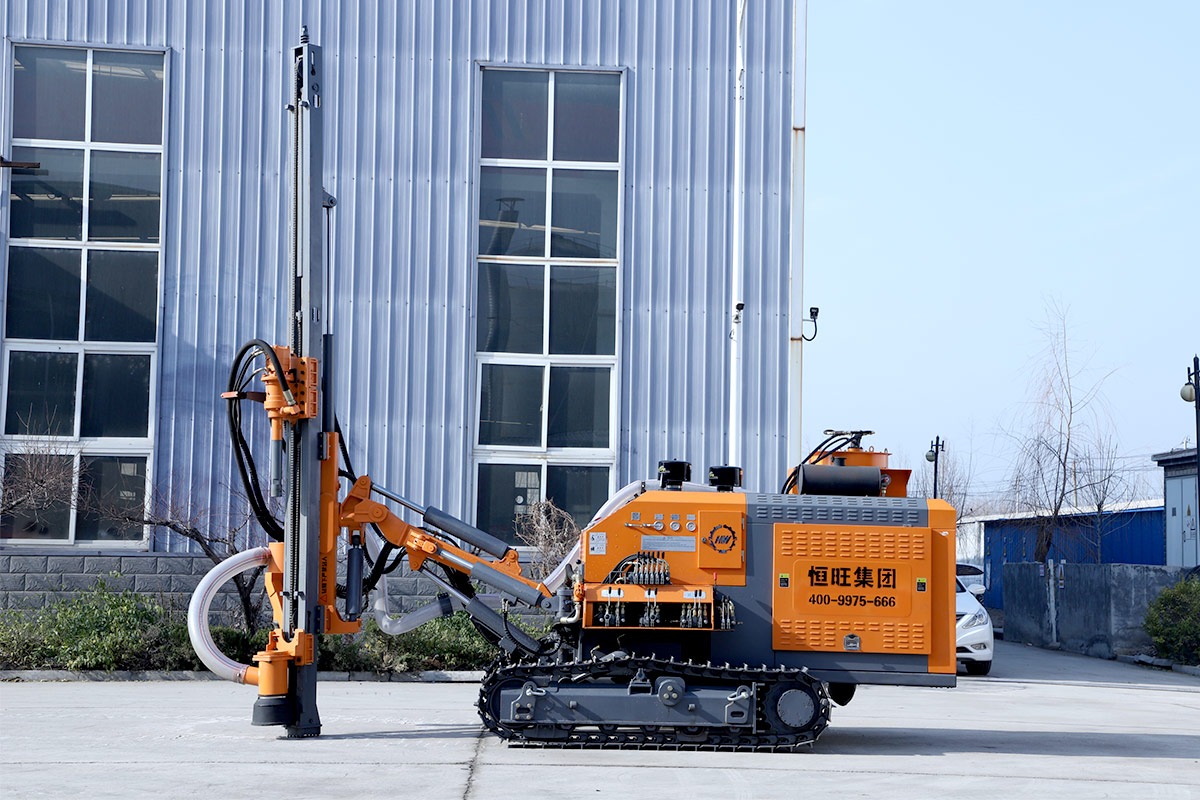

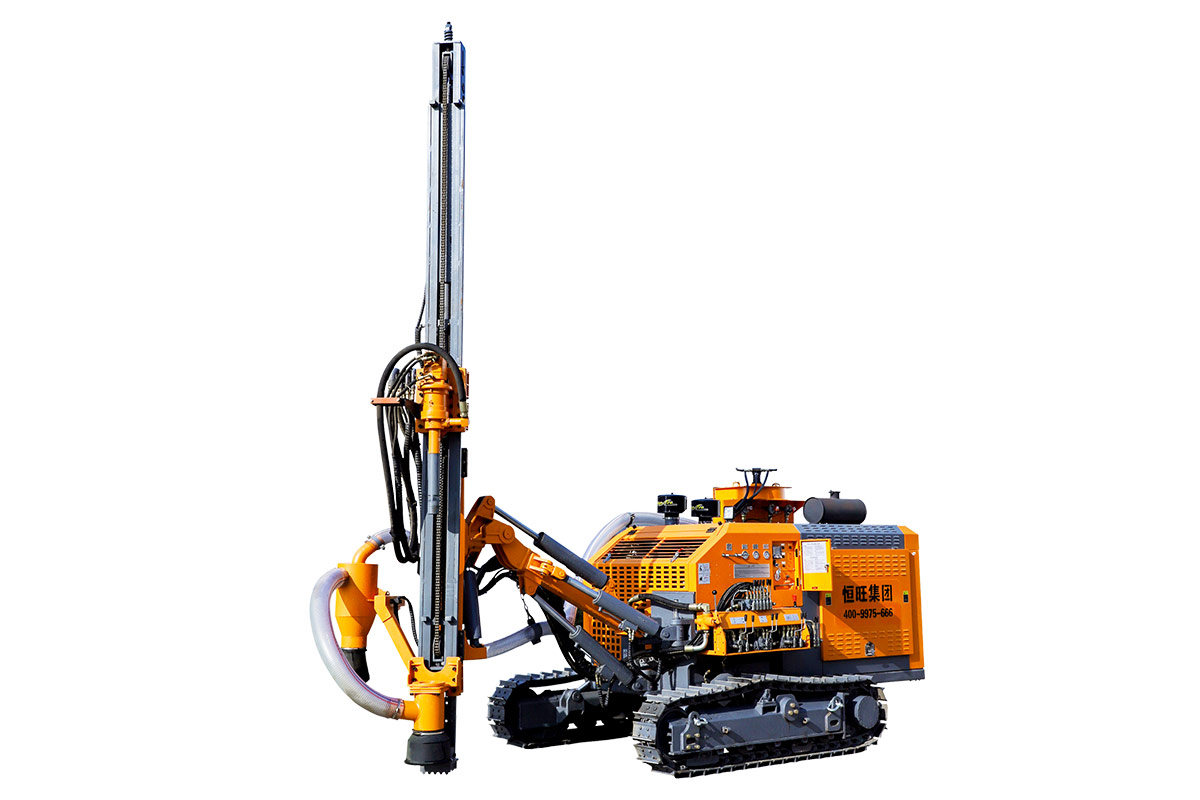

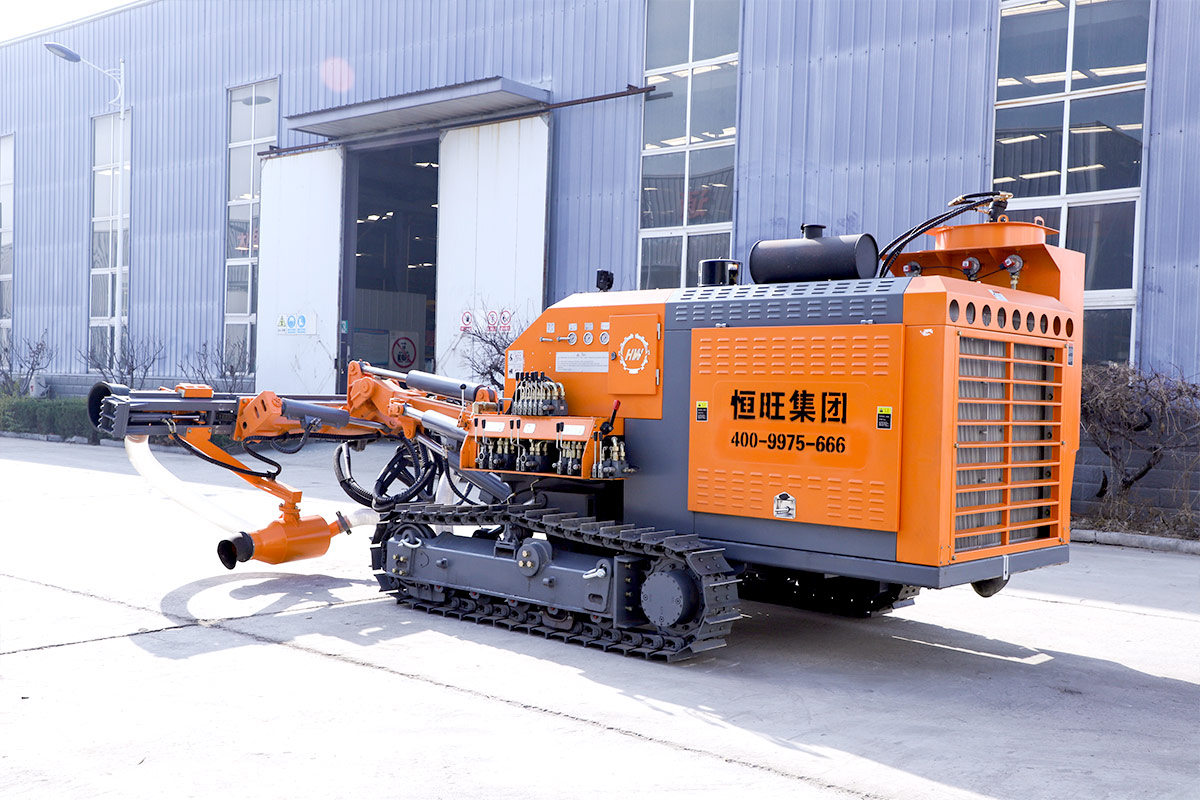

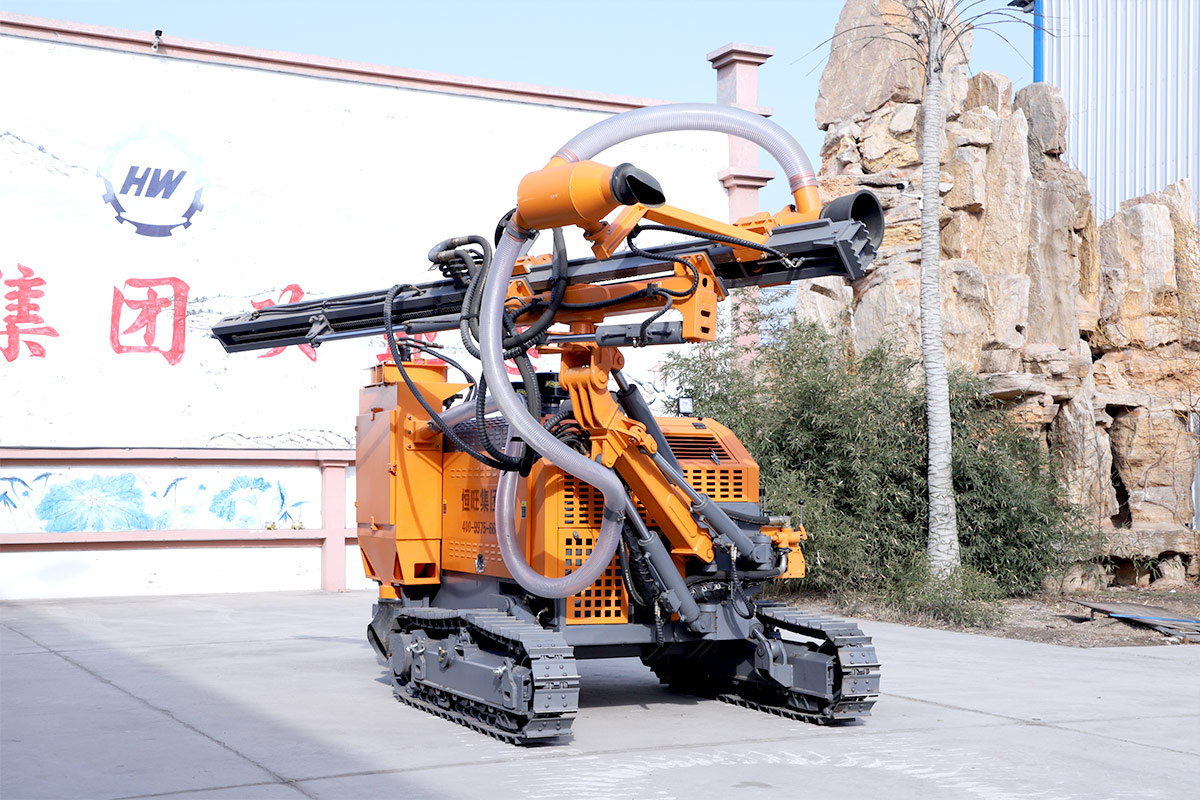

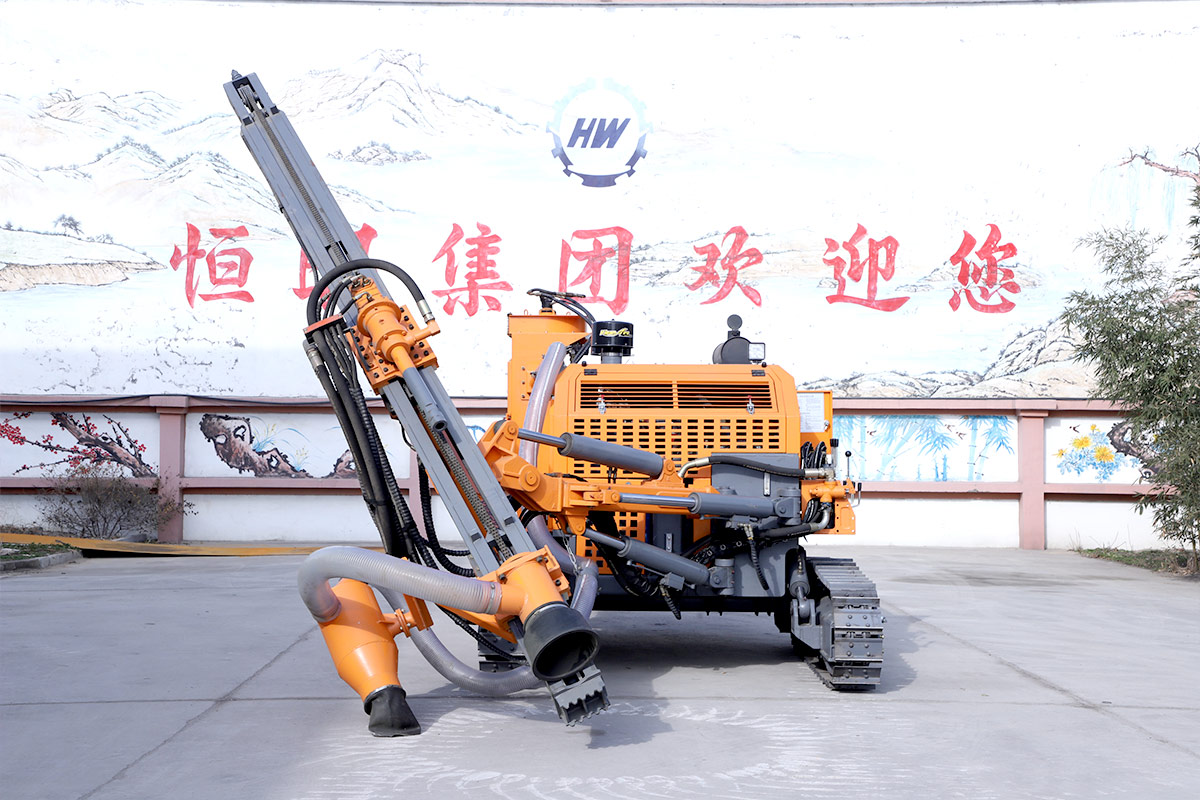

HW921T Integrated DTH Drill Rig
-
Rated Power: 162KW
Drill Depth: 30m
Drill Diameter: 65-120 mm
Huixin Machinery Down hole drilling rigs series
The DTH drilling rig is suitable for drilling blast holes in medium to hard rock with a diameter of 65-120 mm and a depth of 30m.
Crazy discounts in September, submit form to get order discount.
>>> Product Details <<<
Main feature:
1. It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.
2. Equipped with two-stage dry dust removal device, the environmental pollution is small.

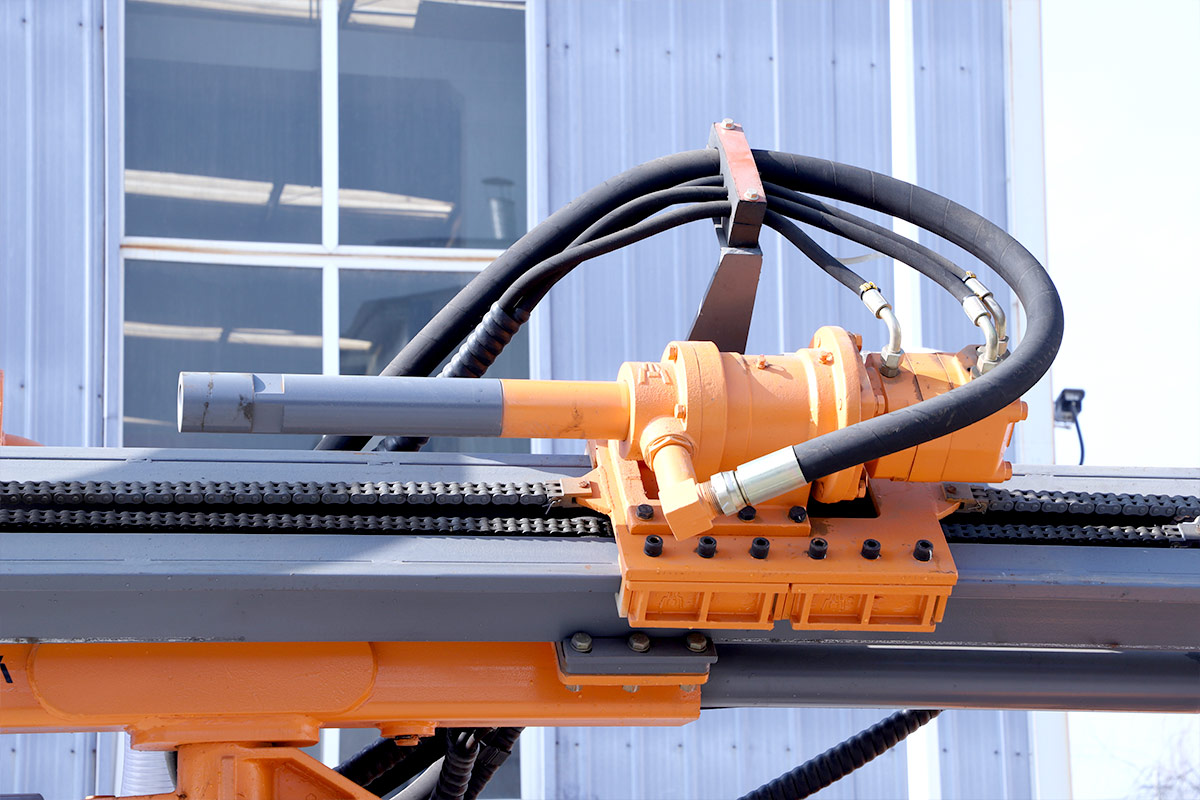

3. It is easy to connect and unload the drill pipe, shorten the auxiliary time, and also facilitate the drilling with the pipe.
Parameter:
| Model | HW921T |
| Power (KW) | 162 |
| Drilling diameter (mm) | φ65-120 |
| Maximum torque (Nm) | 2000 |
| Rotation speed (rpm) | 0-110 |
| Feed type | Chain cylinder |
| Total weight (kg) | 6800 |
Remark:
This product is continuously improved as technology advances. The difference between the parameters and the actual product is subject to the actual product.
Submit the form for more parameters and quotes.
