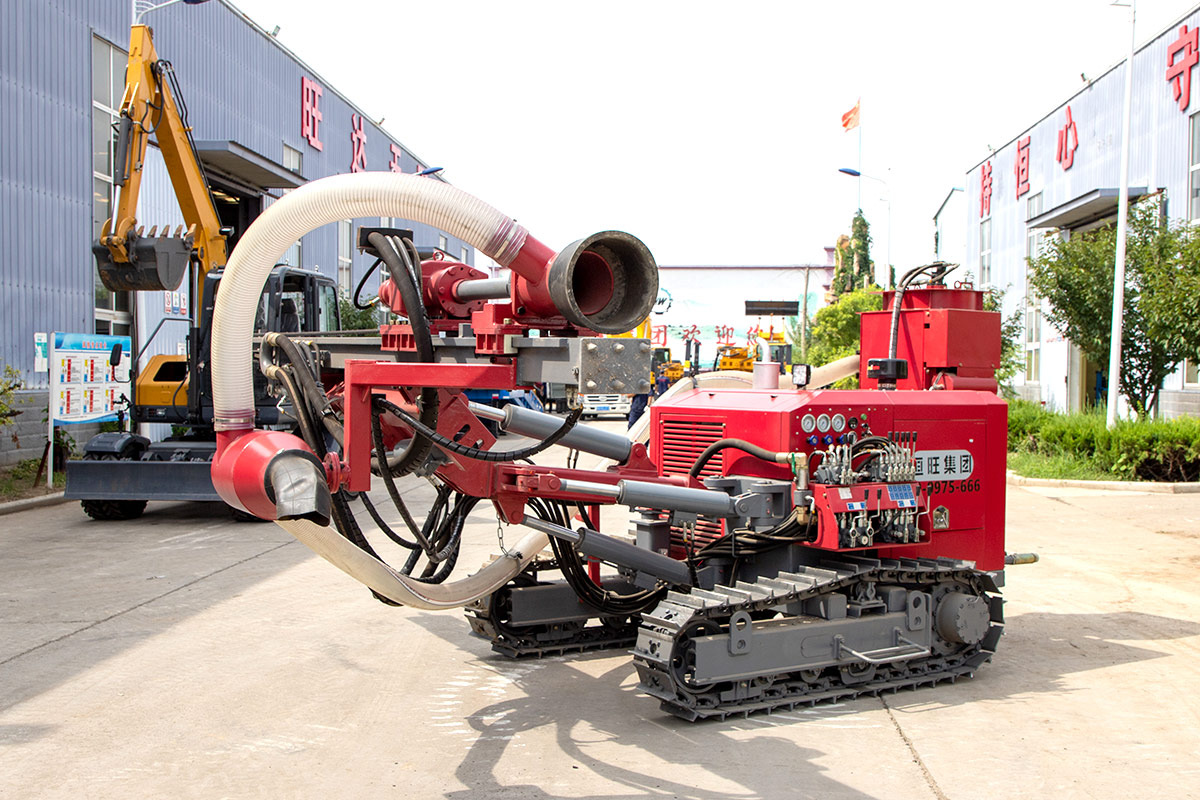

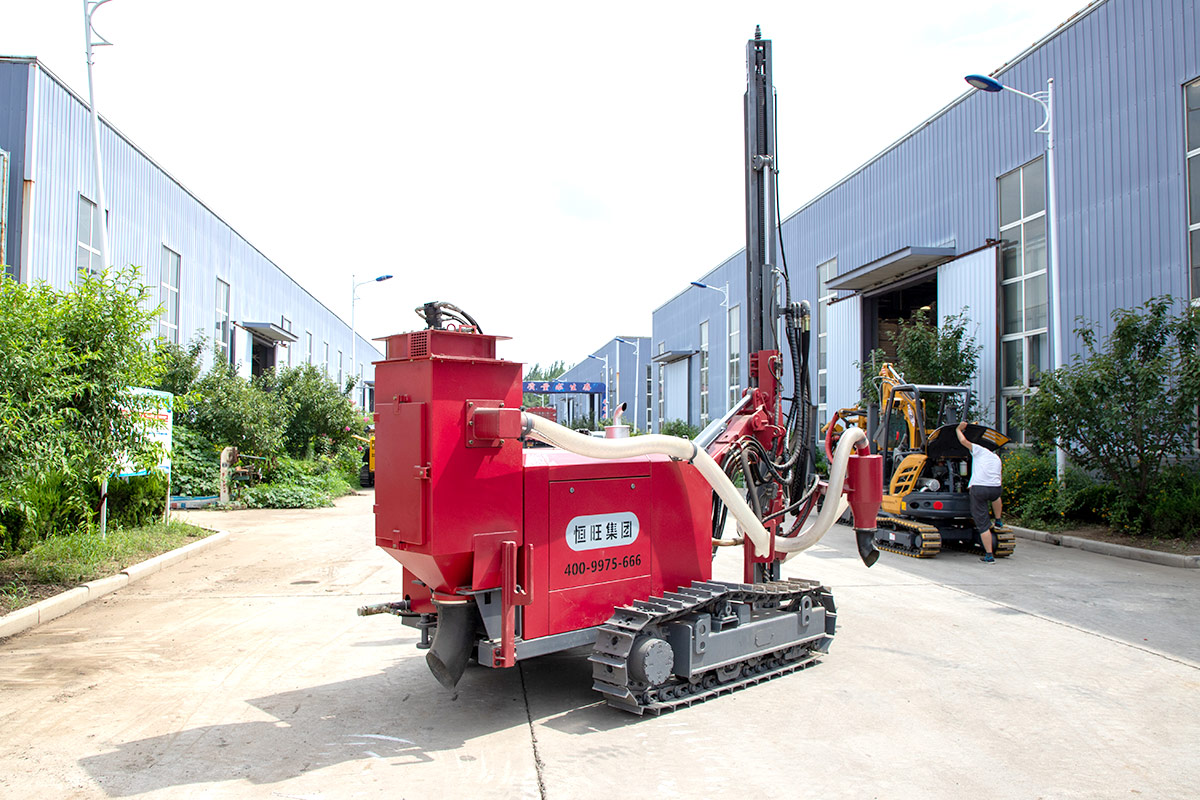

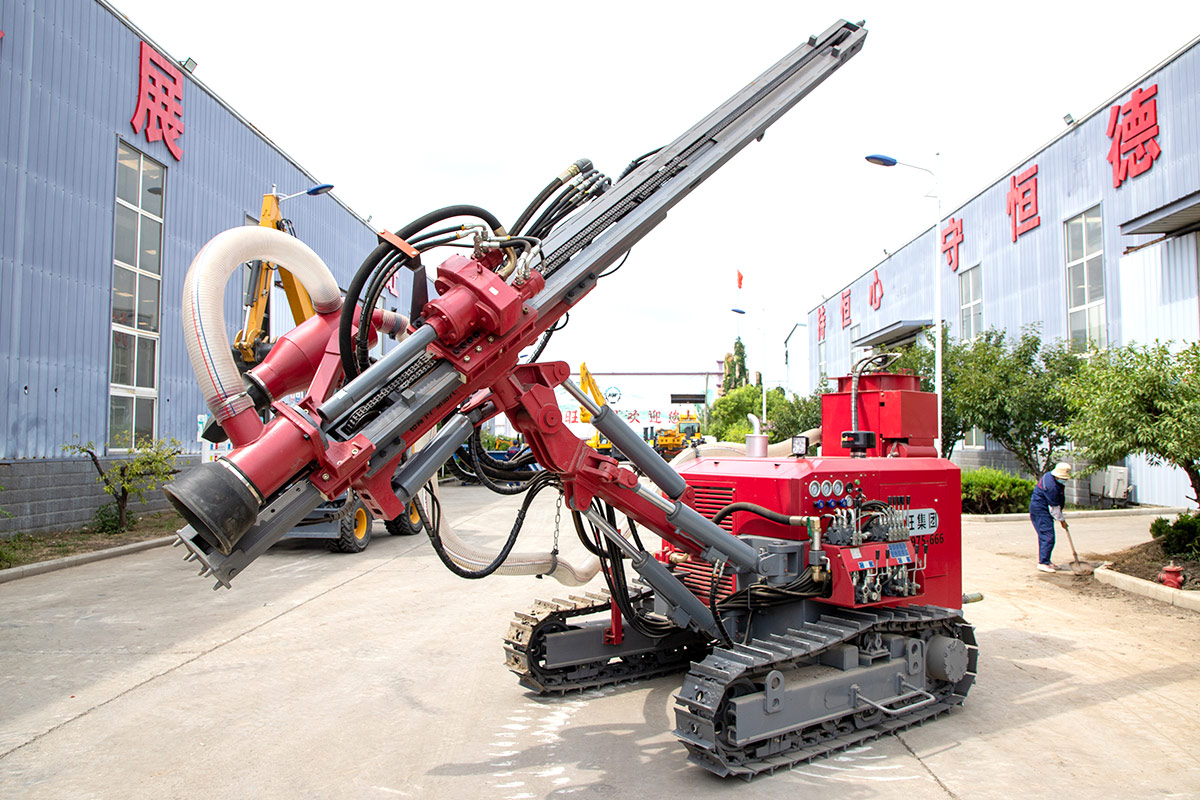

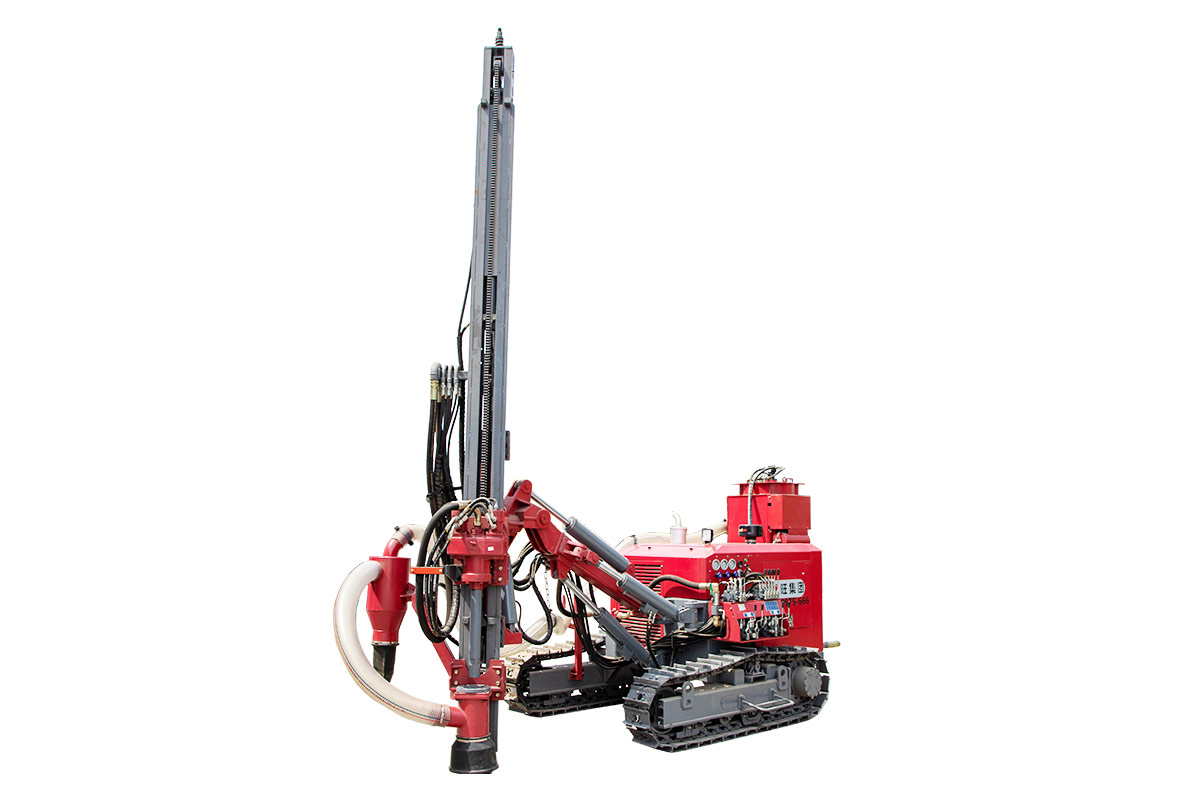

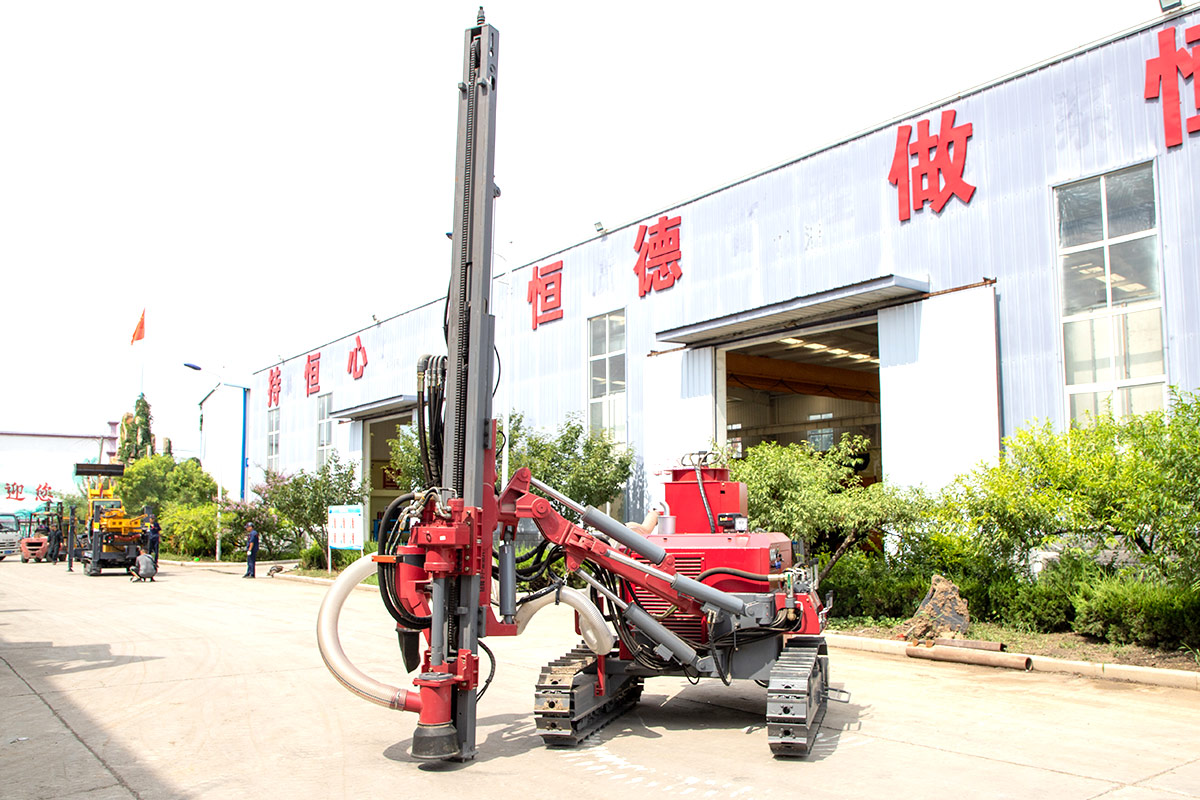

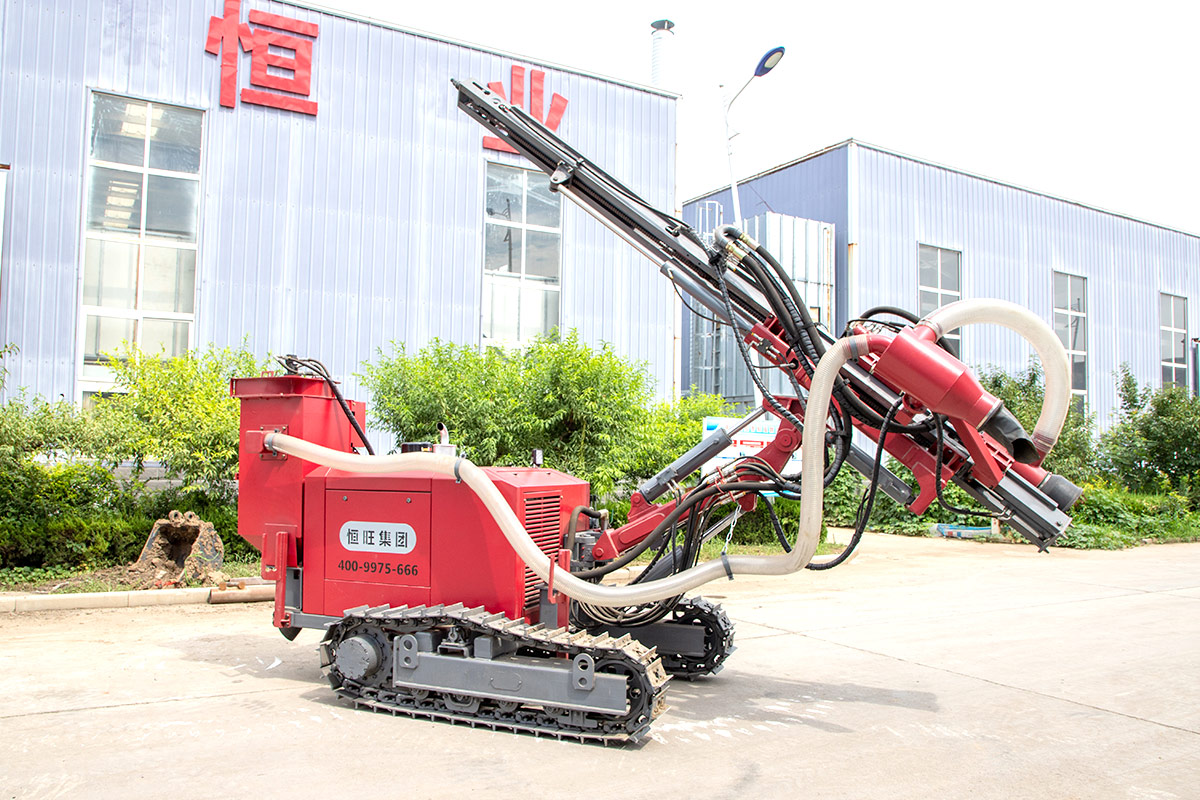

HW916 Separated DTH Surface Drill Rig
-
Rated Power: 58Kw
Drill Diameter: 90-127 mm
Weight: 4,500 kg
The down-the-hole drilling rig is equipped with an air compressor, which greatly improves the work efficiency.
Main feature:
1. Equipped with dual hydraulic rotary motors, fast drilling speed;
2. The structure design is compact and the overall area is small;
3. Crawler site, while ensuring stability, can adapt to a variety of harsh working conditions;

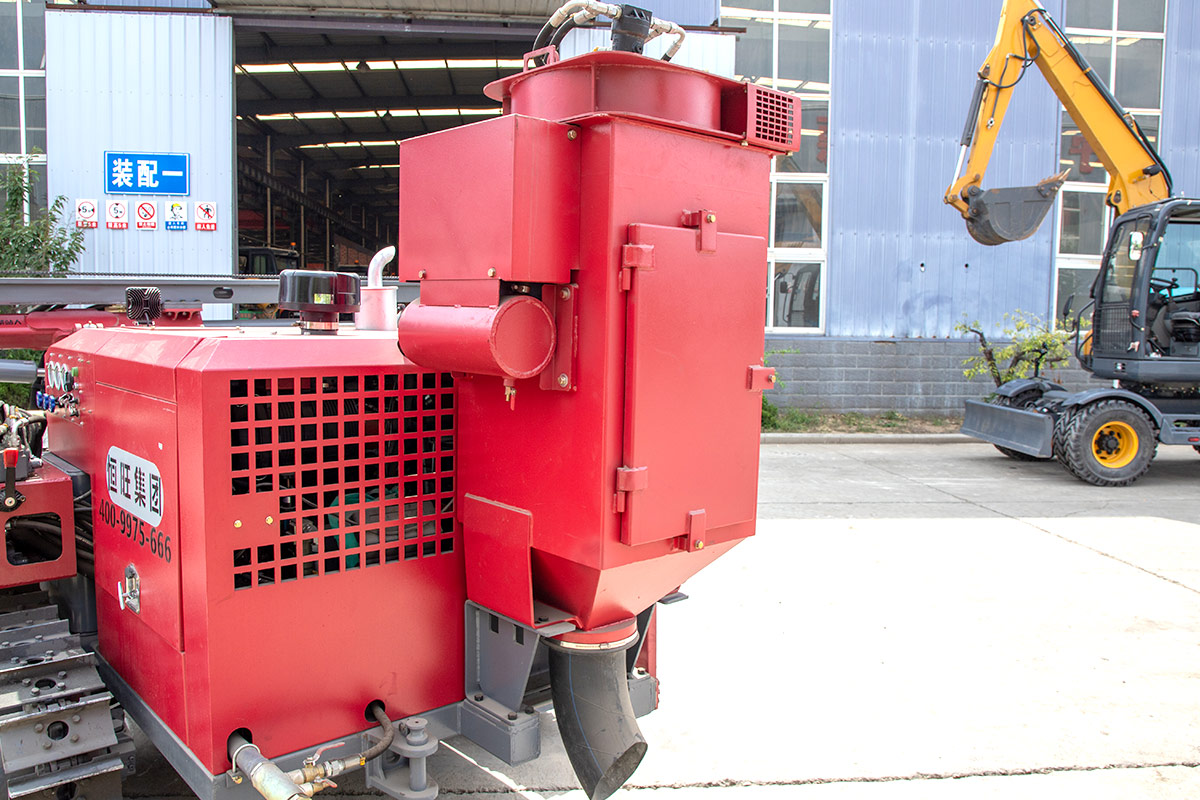

4. Equipped with two-stage dry dust removal device, the environmental pollution is small.

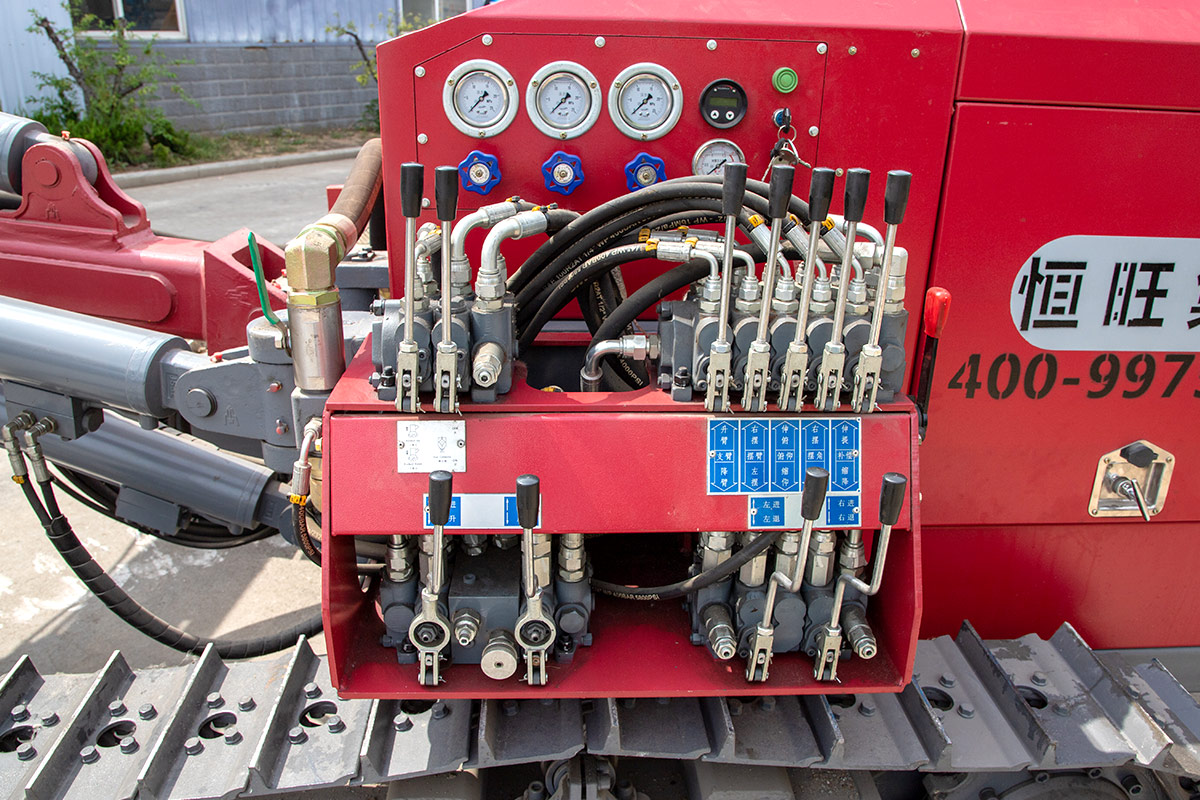

5.The centralized control of the operating table improves efficiency and reduces labor costs.
Parameter:
Here are the key specifications for this product model. Want more details? Please contact us!
| Model | HW916 | HW916-1 |
| Engine | YUNCHAI | YUCHAI |
| Power (KW) | 59 | 58 |
| Drilling diameter (mm) | φ90-127 | φ90-127 |
| Maximum working torque (N.m) | 1950 | 1950 |
| Rotation speed (rpm) | 0-105 | 0-105 |
| Propulsion (kN) | 15 | 15 |
| Lifting force (kN) | 25 | 25 |
| Walking speed (km/h) | 2.5 | 2.5 |
| Shipping Dimensions (mm) | 5700*2130*2200 | 5700*2130*2200 |
| Dust collection method | Dry dust collection |
