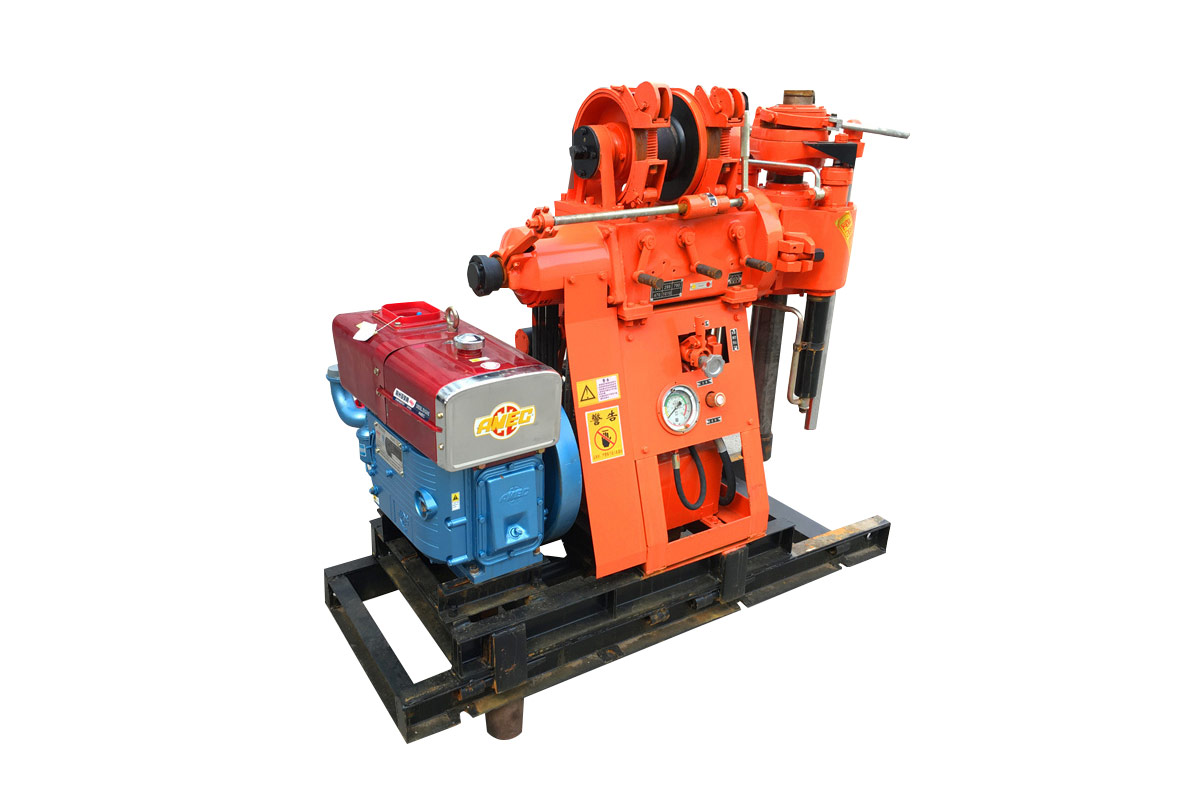

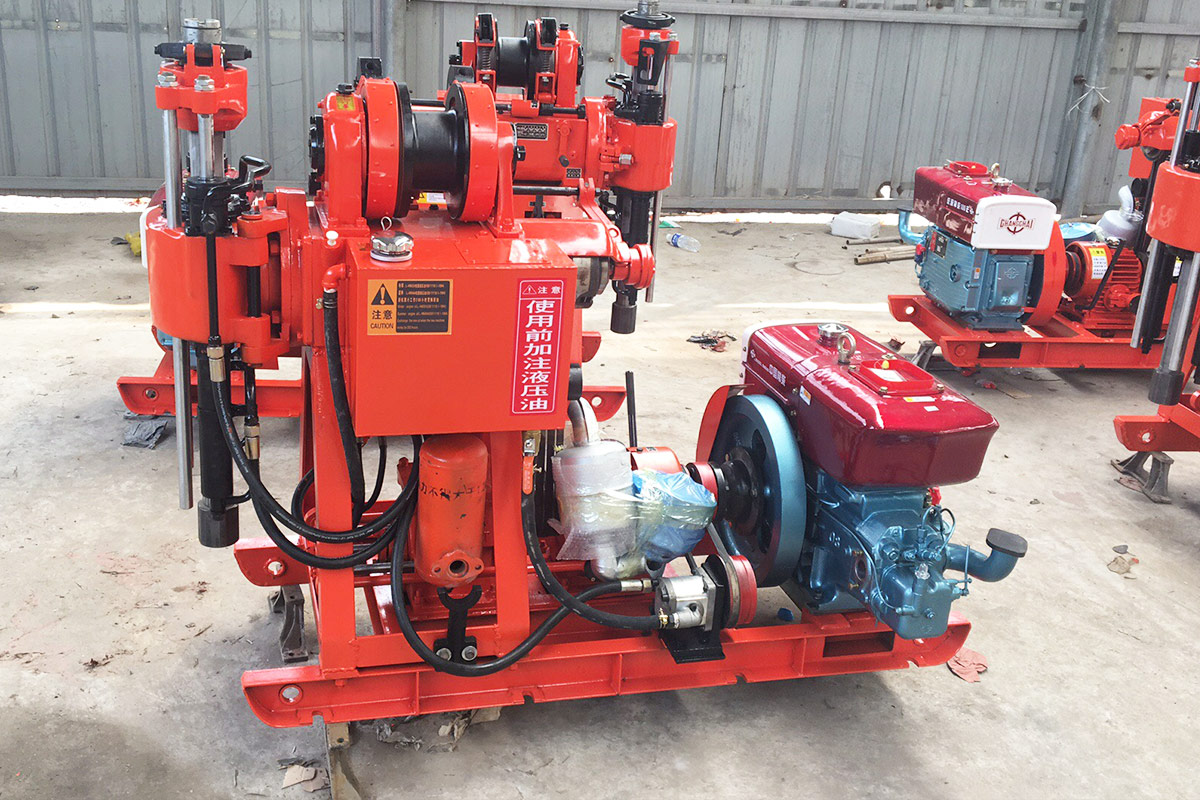

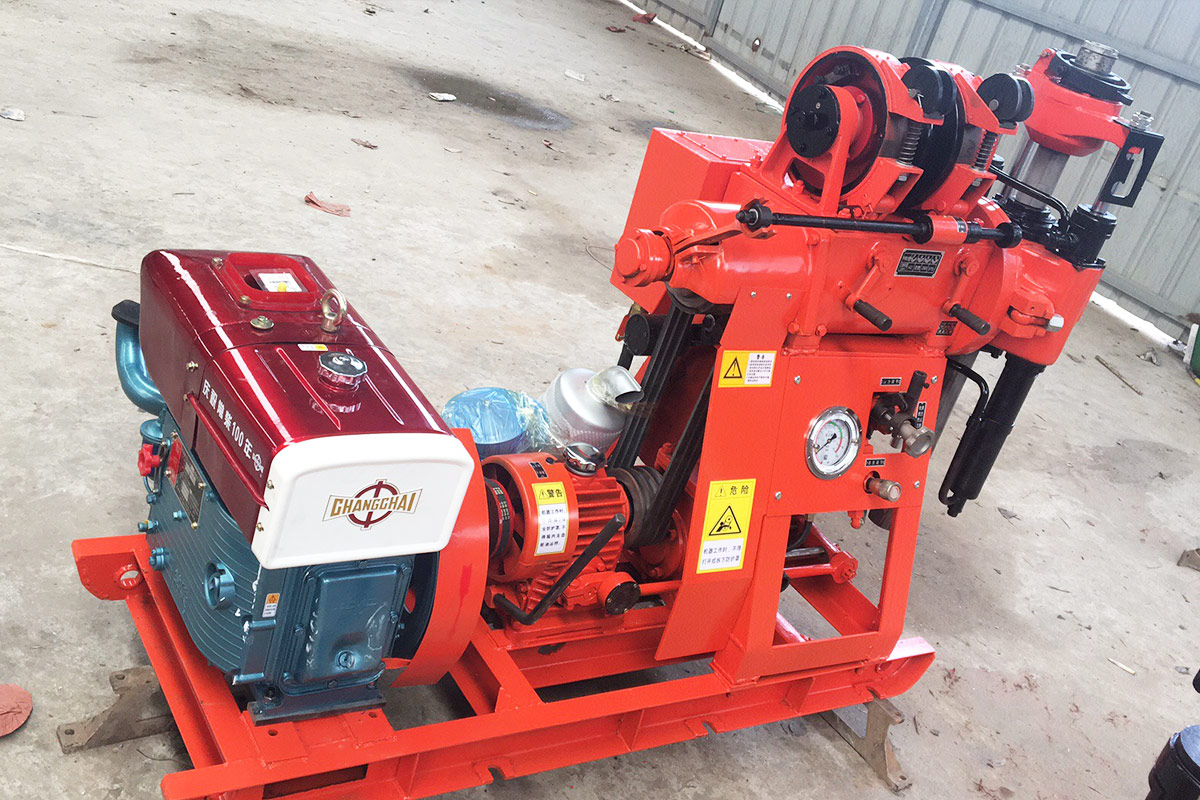

This drill rig is a high-speed rig suitable for census exploration, Geophysical exploration,road and building exploration and blasting holes and other drilling projects.

We can use alloys, diamonds and composite sheets bits to drill depending on the bottom layer difference.

It can drill 2-9 grade sandy clay and rock formations, etc.

Feature:

It has a hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.

It adopts the ball card clamping mechanism instead of the chuck, and can implement the non-stop bar, easy to operate, safe and reliable.

The hoist is equipped with a frame to form a double-sided support star structure that can withstand strong impact.

Four sets of bearing positioning of the vertical axle box ensure that the gyrator has sufficient rigidity to deal with complex geological conditions such as gravel layer and pebble layer.

This machine adopts a taper clutch, which has the characteristics of large transmission torque, convenient operation and maintenance-free.
