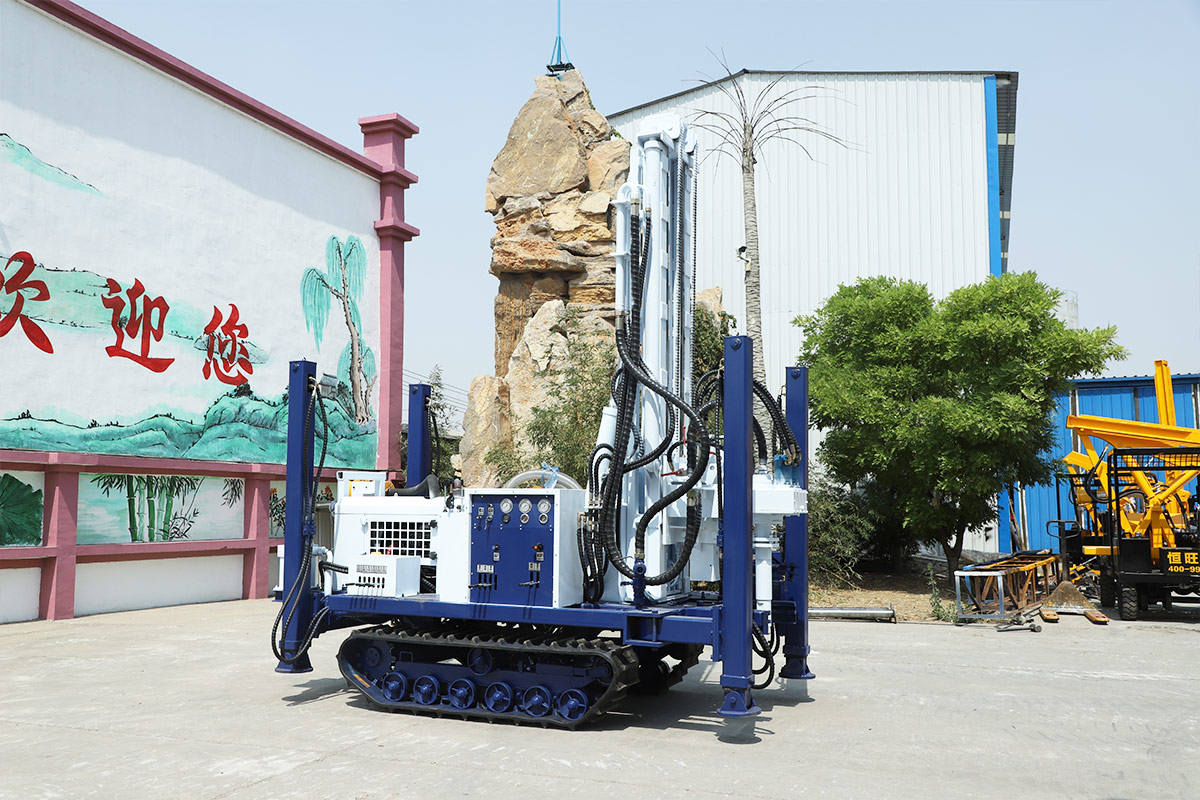

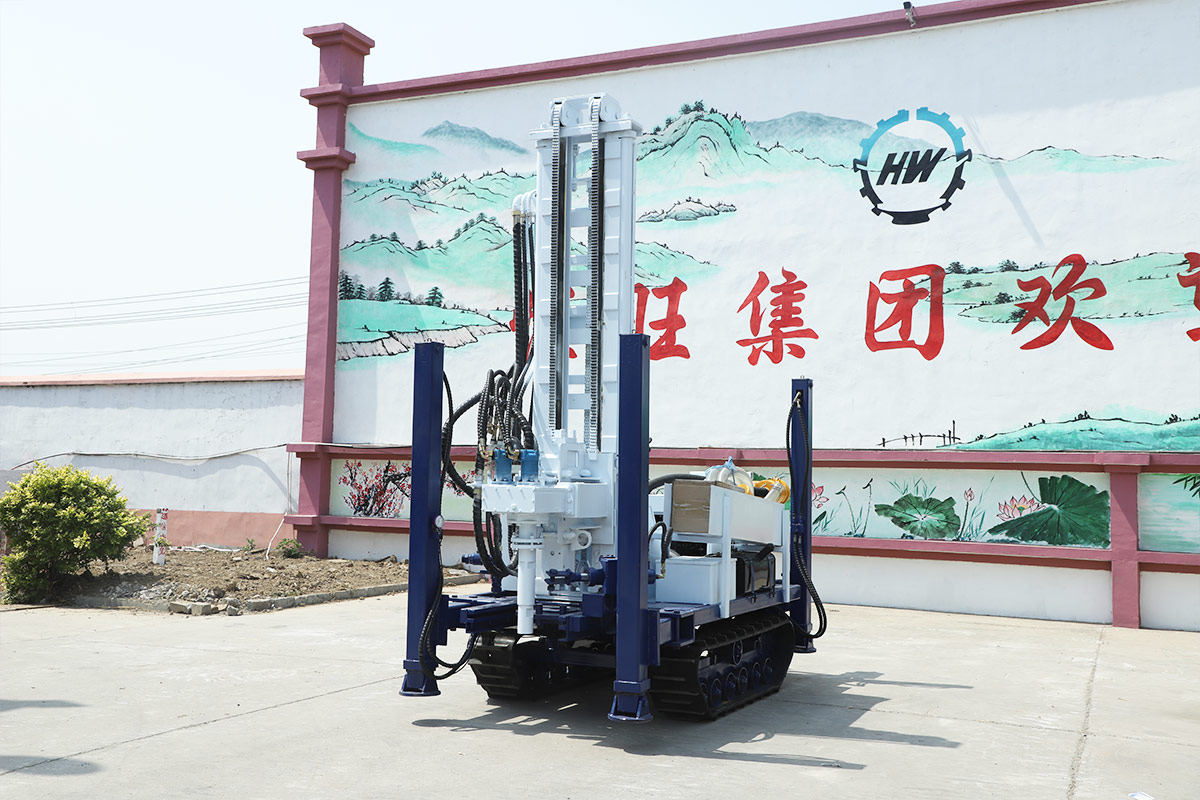

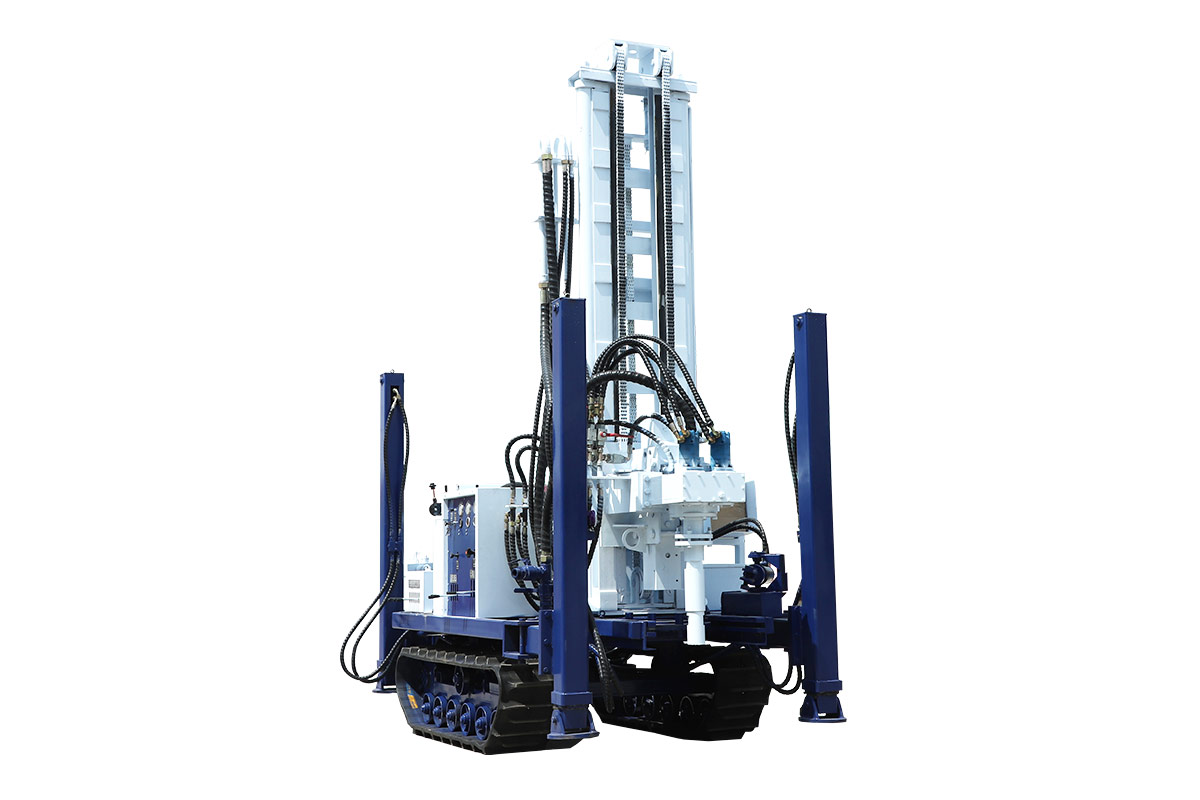

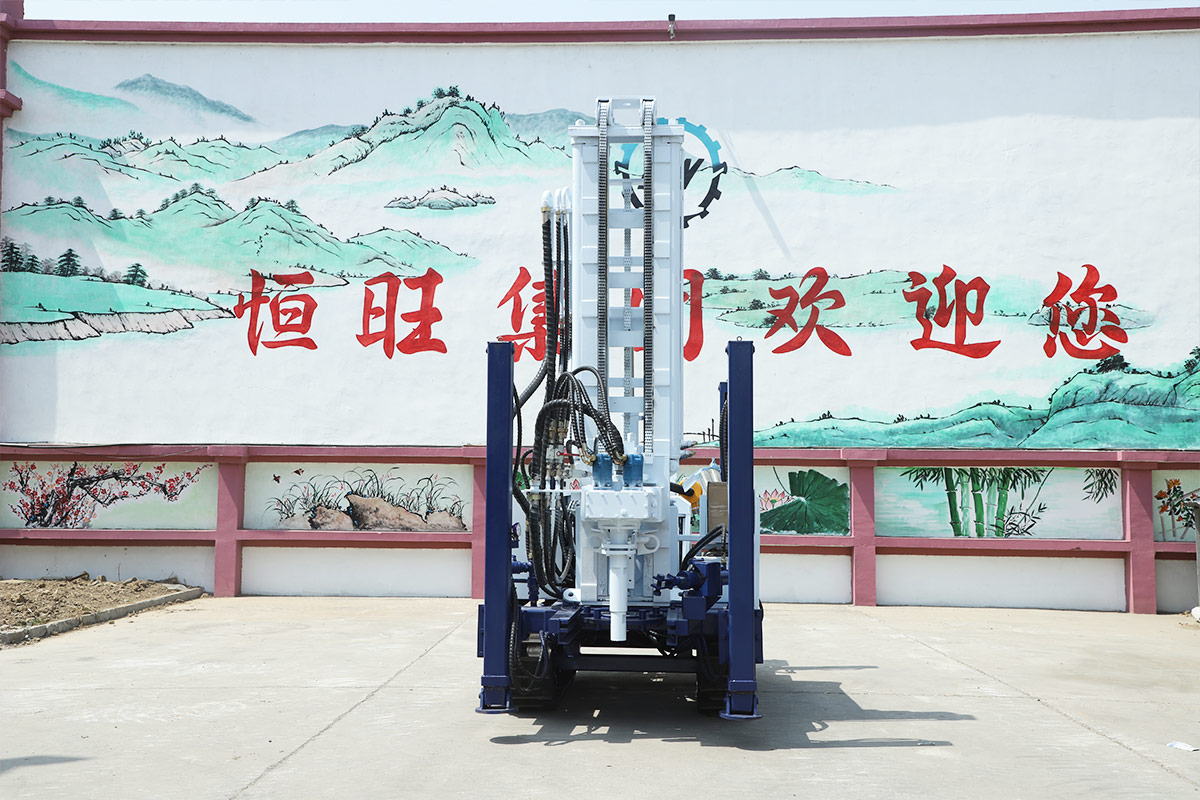

HW180D Sample Drilling Rig
-
Drill diameter: 40-120mm
Drill depth: 30m
Related power: 42Kw
1. Drill rig pushes directly to make sampling
2. The drilling rig without rotary is not necessary to add water
3. It is to make samples with double tubes and sample reach directly into inner tube without contamination
4. It is equipped with leakproof plug and leakproof connecting rod to realize leakproof
5. It can make Max. 30m depth sampling
6. 120mm diameter sampling (sampling depth will be reduced)
| Model | HW180D |
| Size (L*W*H) | 3500*1700*220mm |
| Rated power (kw) | 42 |
| Rotation speed (rpm) | 40-65 |
| Torque (N m) | 3500-3800 |
| Walking speed | 2.5km/h |
| Climbing angle (°) | 30 |
