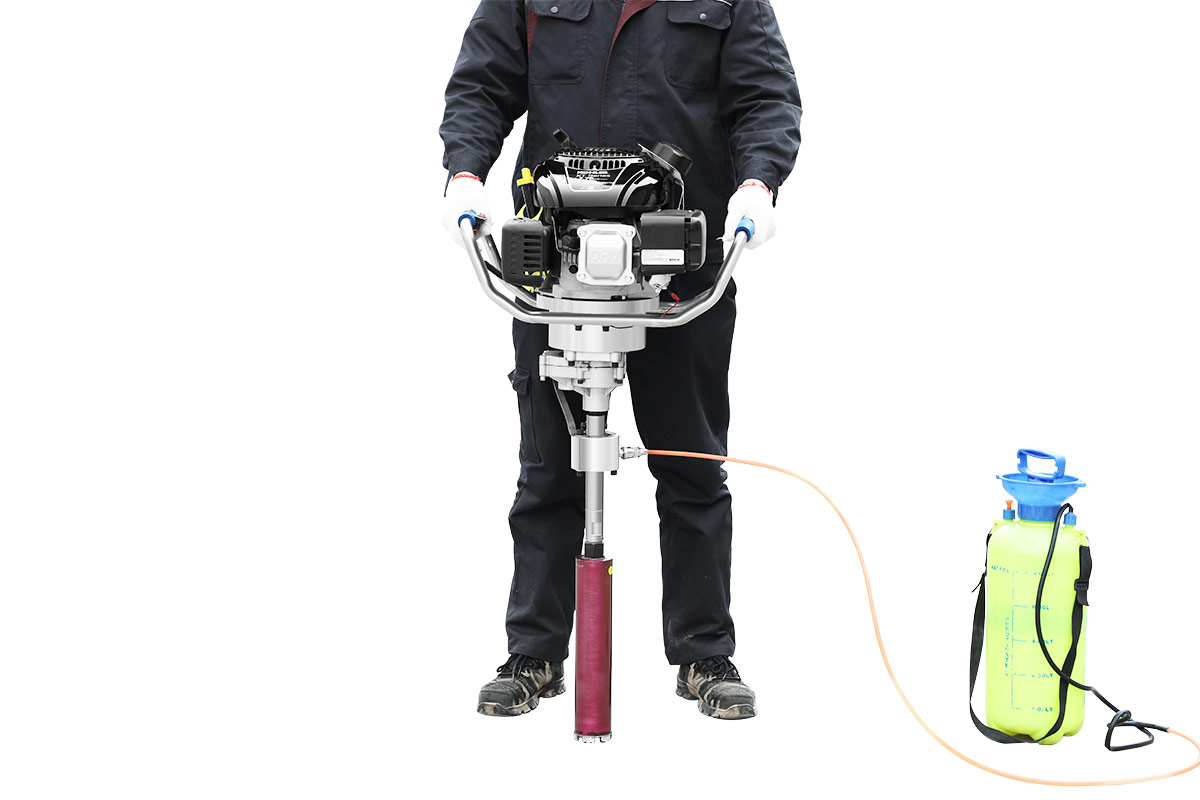

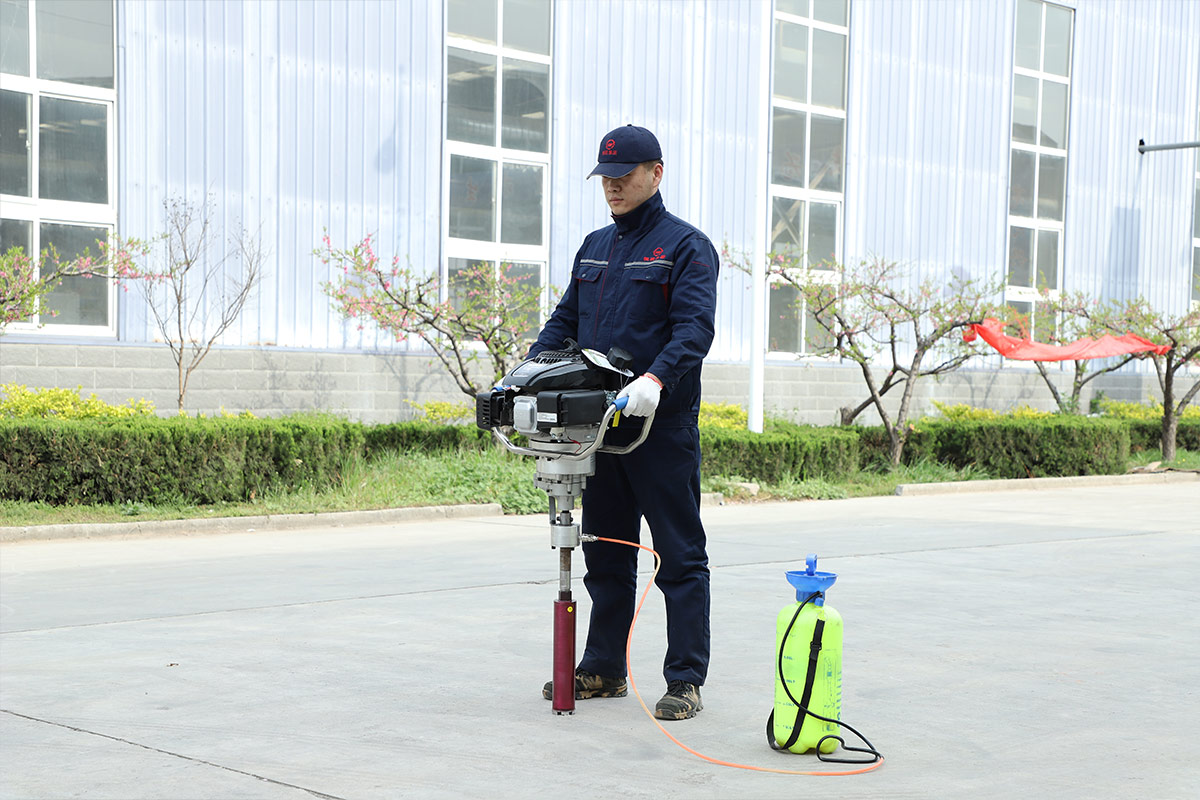

HW-B30 Backpack Core Drilling Rig
-
Drill Diameter: 40-108mm
Drill Depth: 30m

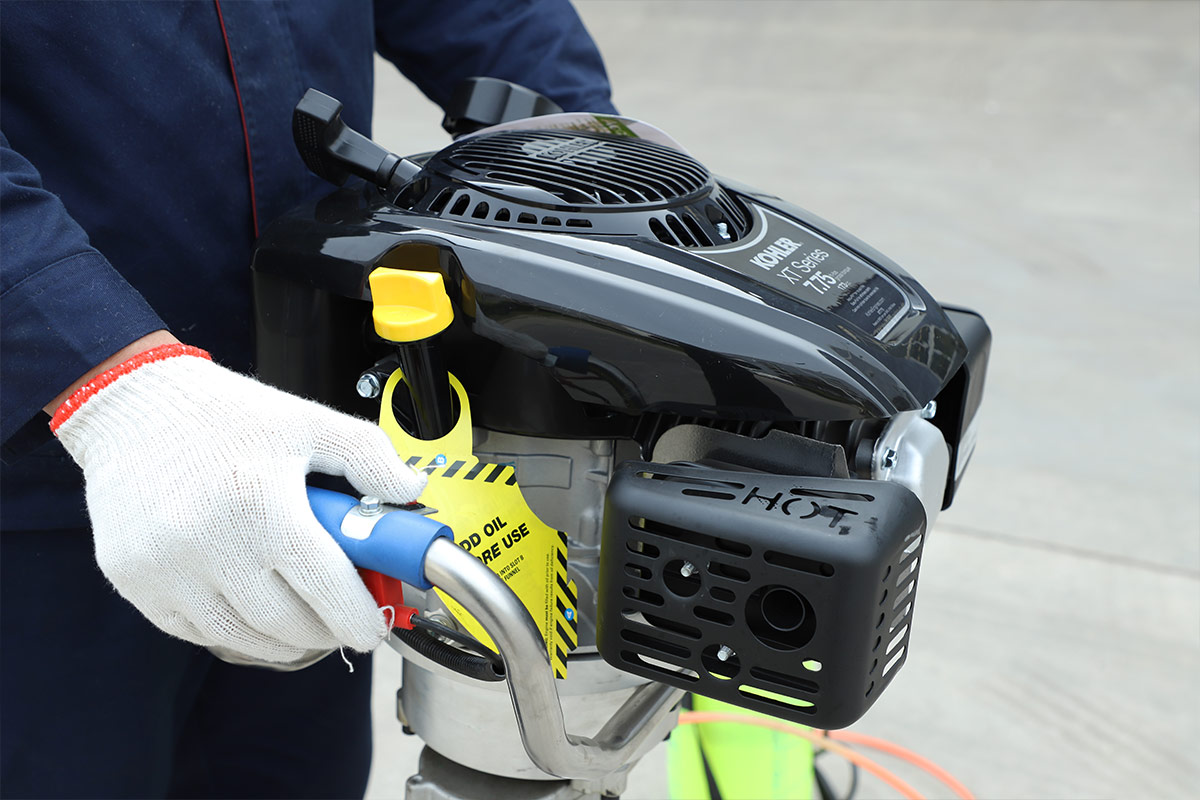

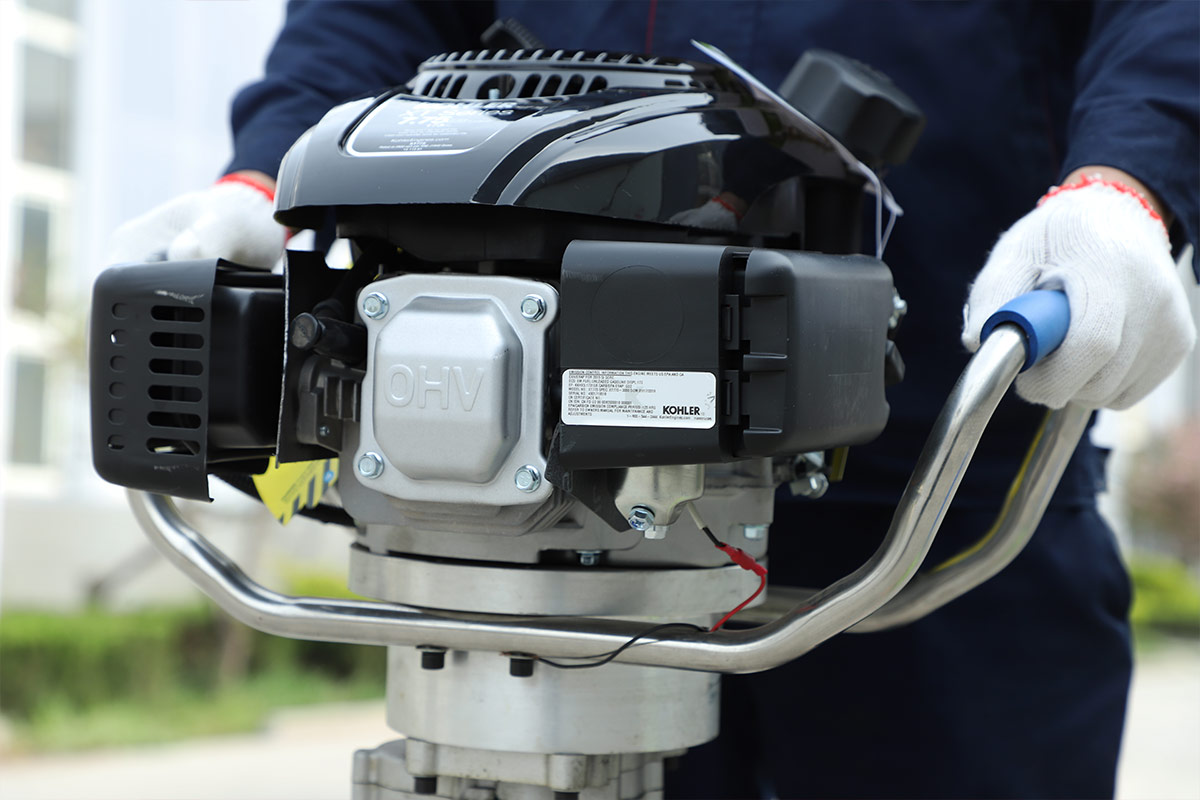

Engine Power: 7.5hp
HW-B30 is a kind of small portable sampling drilling equipment which is mainly suitable for mountain, transportation and energy. The machine can replace the traditional manual excavation, tank probe, take samples and so on.
It not only more efficient, but also reduces vegetation damage and protects the environment.
It is an indispensable technical means in shallow geological exploration, such as regional geological mapping, geophysical exploration sampling, ancient geomagnetic sampling, and geological disaster prevention.
Application fields: geophysical exploration sampling, regional geological mapping, mining vein exploration, mineral exploration, geotechnical engineering testing, various drilling.
Model | HW-B30 |
Borehole diameter (mm) | φ40—φ108mm |
Drill hole depth (m) | 30m (diameter 40mm) |
Application of rock types | Soil, medium hard (10grade) |
Rotation speed | 2200r/min |

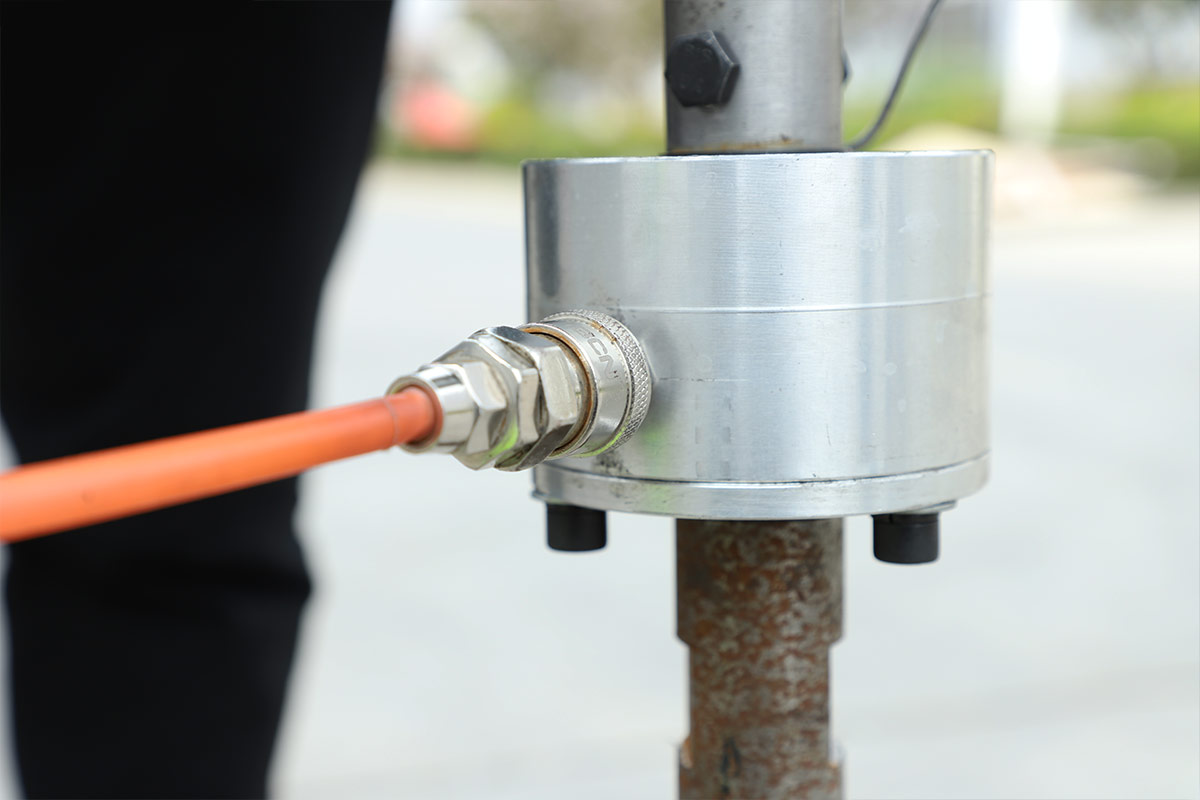

Water consumption (L/H) | 14.4L/H |
Power (cc) | 173cc |
Rod rotation speed (r/min) | 0-800 |
Drill pipe | |
(1) Drill pipe diameter (mm) | φ32 |
(2) Drill pipe length (mm) | 720mm (including connector) |
(3) Drill pipe material | Titanium alloys |
(4) Drill pipe weight (kg) | 1.1kg |
Hydraulic motor | |
(1) Power | 7.5hp |
The host weight (kg) | 23 kg |
