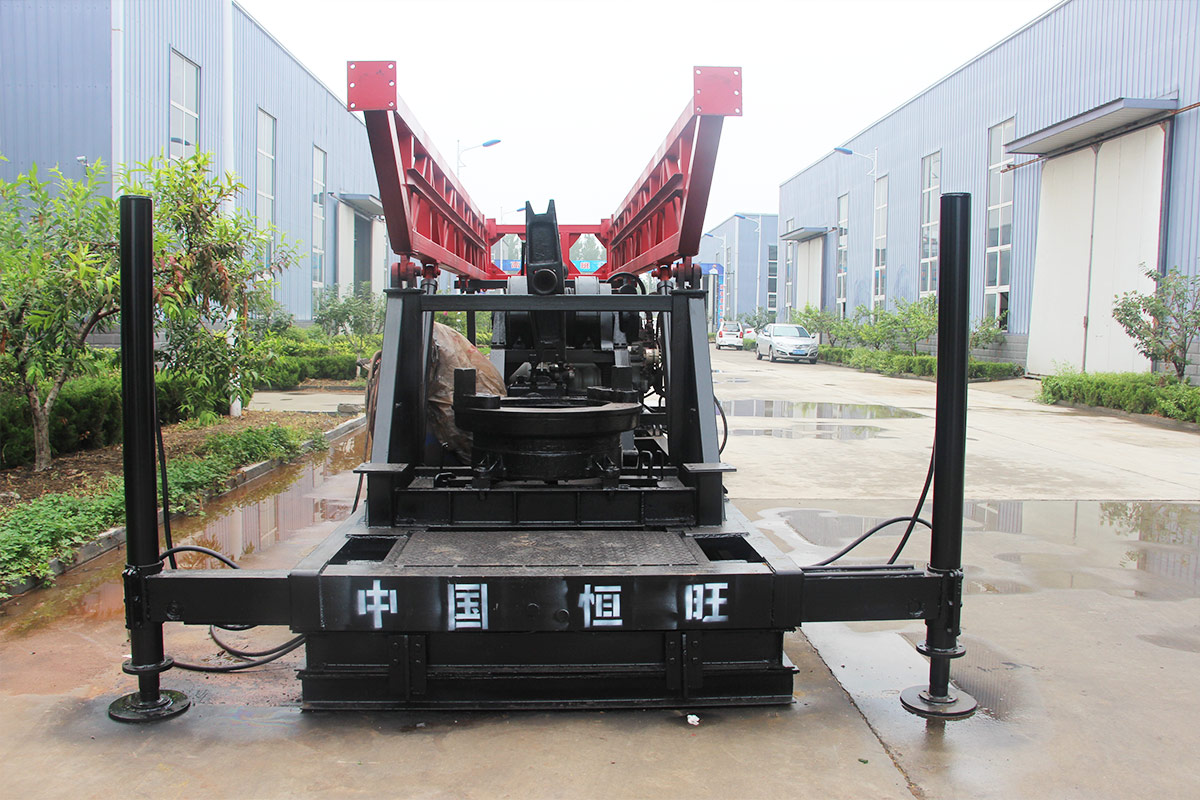

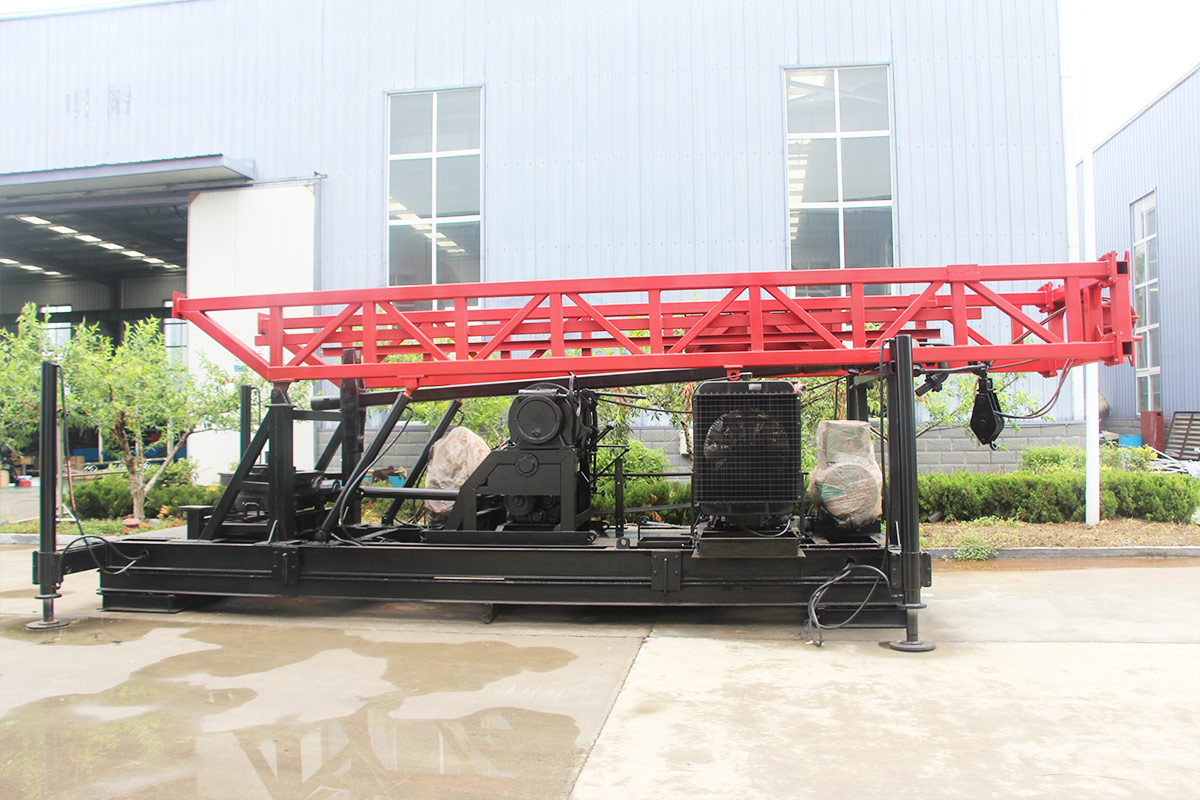

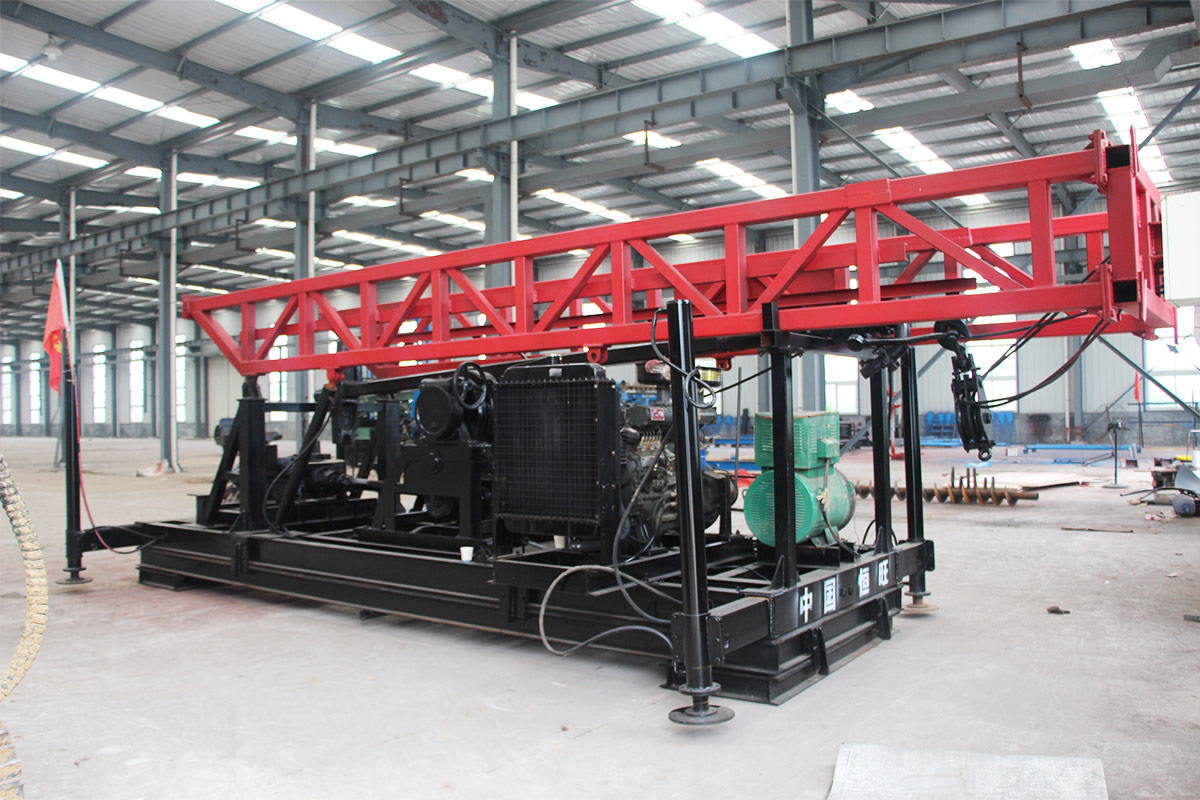

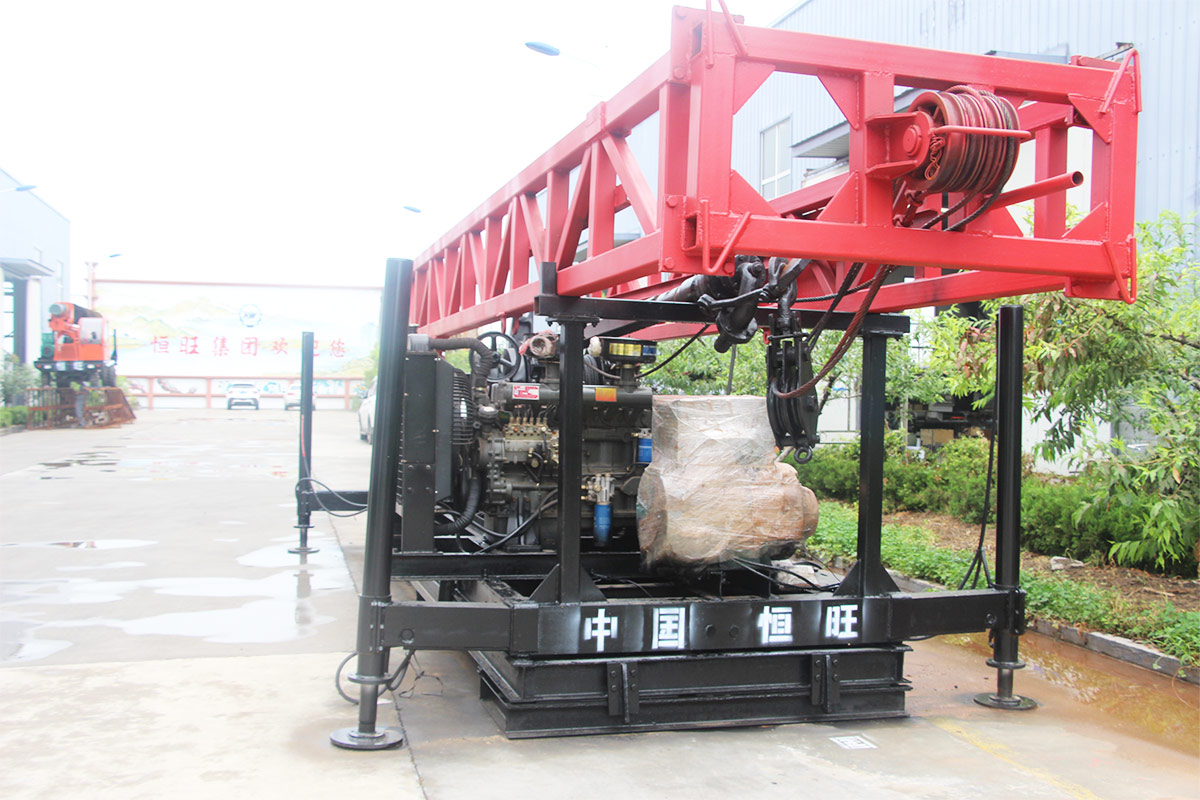

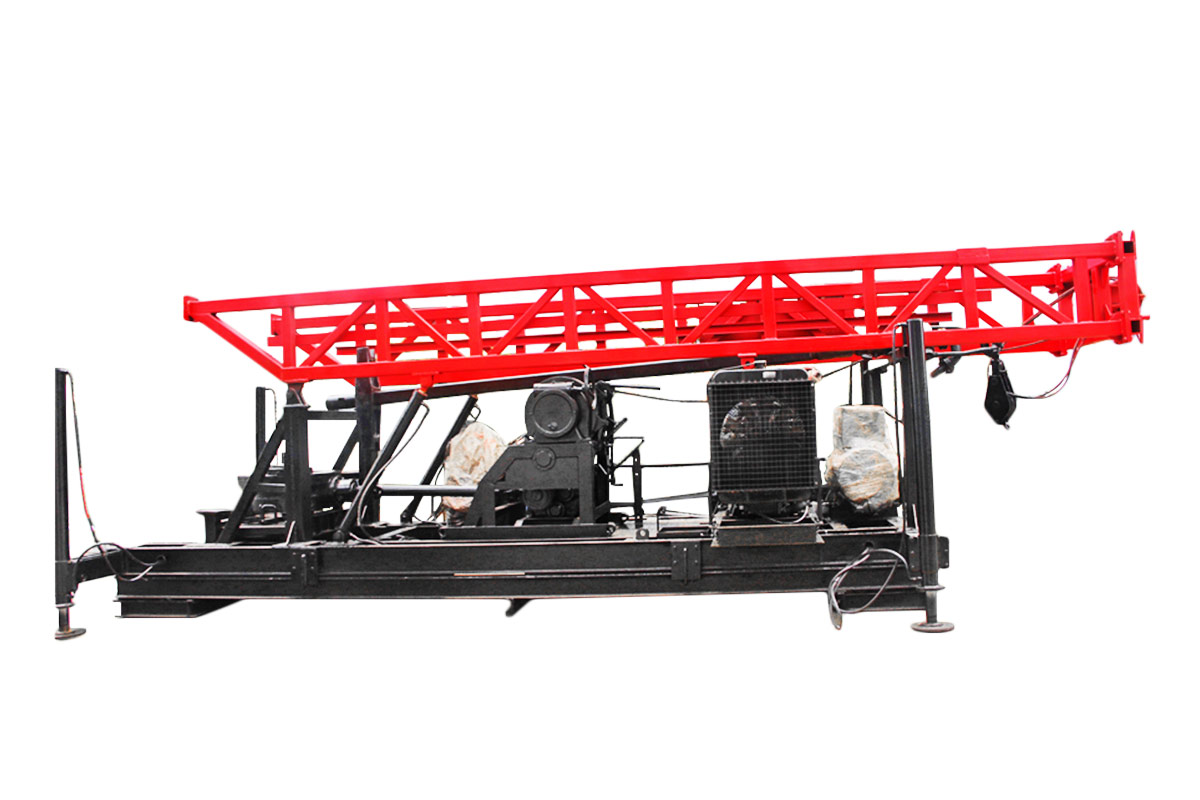

SPJ600L Mill Drilling Rig
-
Drill Diameter: 200-1800mm
Drill Depth: 600m
Engine Power: 37Kw
1. Hydro geological conditions at the bottom of exploration and census;
2. Drilling wells for agricultural irrigation and industrial water;
3. Drilling of underground tunnel ventilation, bridges, etc.
4. When the rig is working, use the mud rinsing liquid (positive circulation), and the turntable rotates to drive the drilling tool to rotate. The hoisting system is used to realize decompression drilling, lifting and drilling tools, down hole pipes, impact sampling, and vertical rigs.
5. The drilling rig is equipped with a fine-tuning drilling mechanism and a mechanical unloading drilling device.
| Model | SPJ600L | |
| Drill depth | 600m | |
| Drill diameter | 200mm-1800mm | |
| Turntable diameter | φ605mm | |
| Driver drill rod | 108×108×8000mm 108×108×12000mm | |
| Drill rod | φ73mm, φ89mm | |
| Rotating speed | 42, 75, 134KN.m | |
| Main Winch | Max. Single line hoisting capacity | 35KN |
| Rated load | 210KN | |
| Hoisting speed | 0.15-0.47m/s | |
| Pulley block | 3×3 | |
| Diameter of wire rope | φ20-21.5mm | |
| Auxiliary Winch | Single line rated hoisting capacity | 15KN |
| Max. Single line hoisting capacity | 20KN | |
| Single rope allowed Hoisting speed | 0.58m/s | |
| Diameter of wire rope | φ9.8mm | |
| Power | 37KW | |
| weight | 5.5T | |
