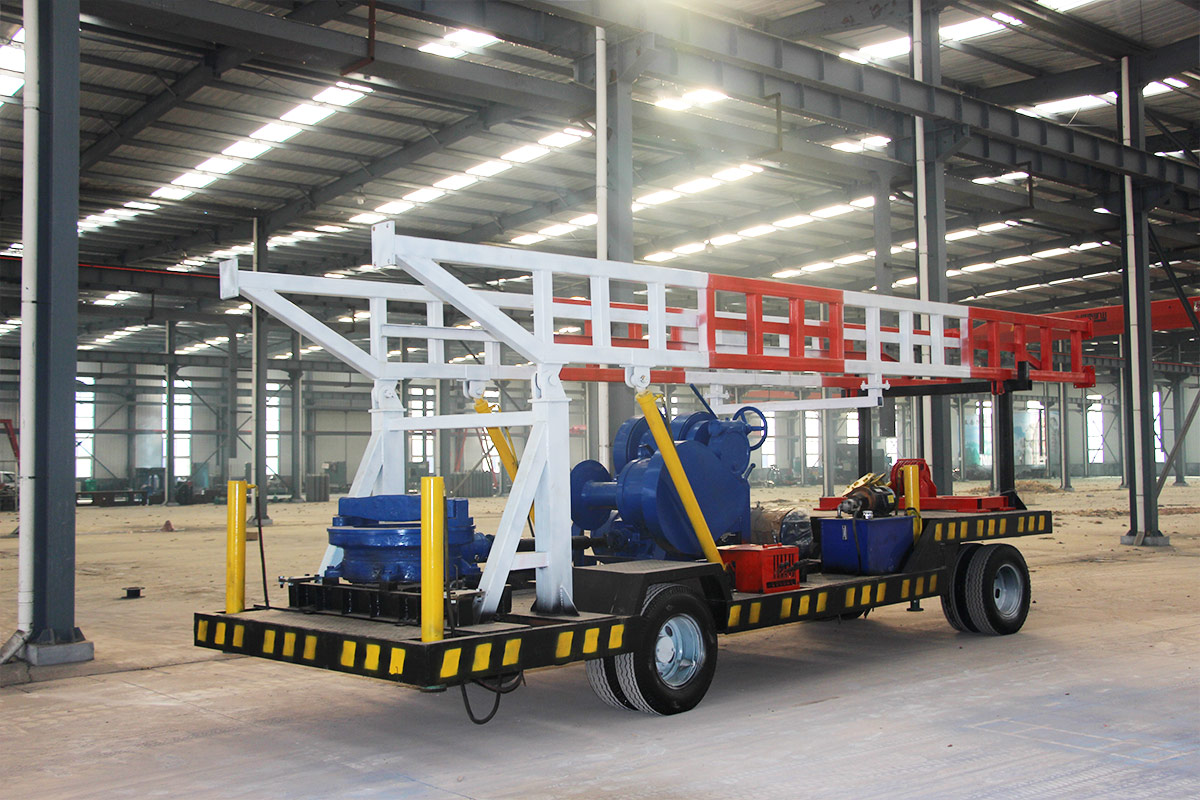

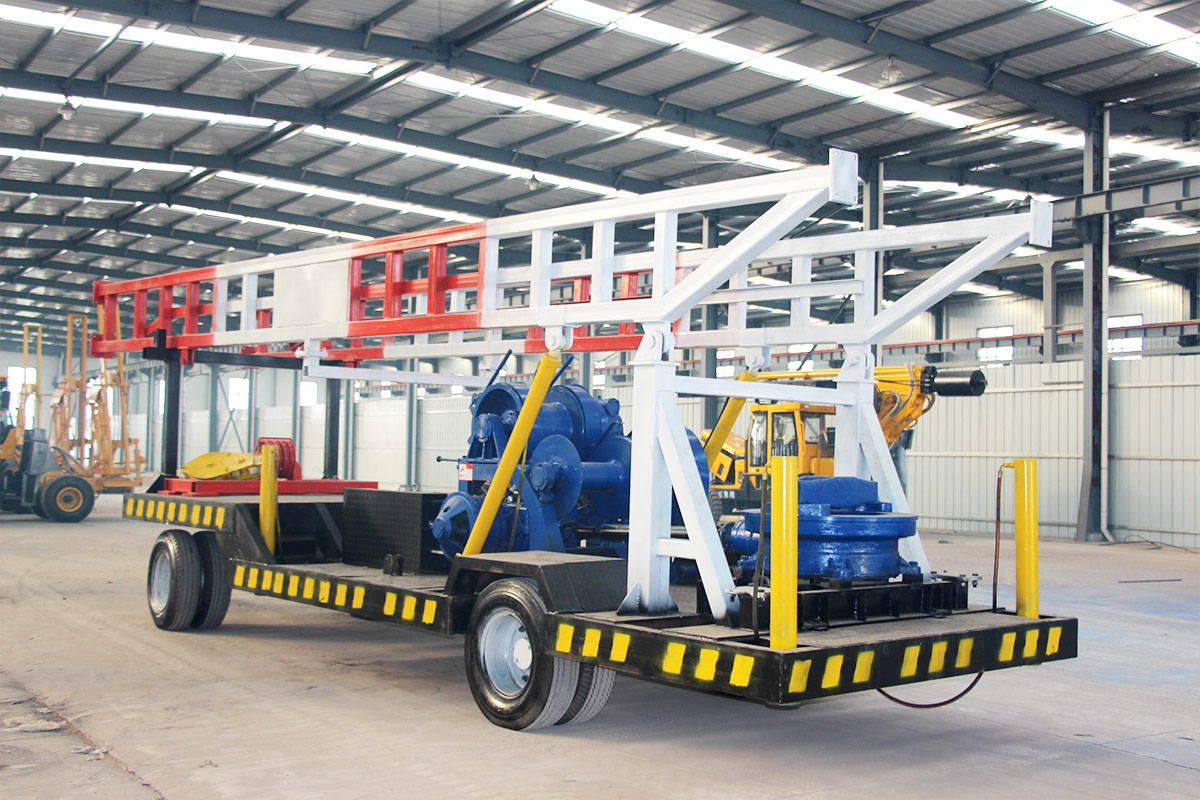

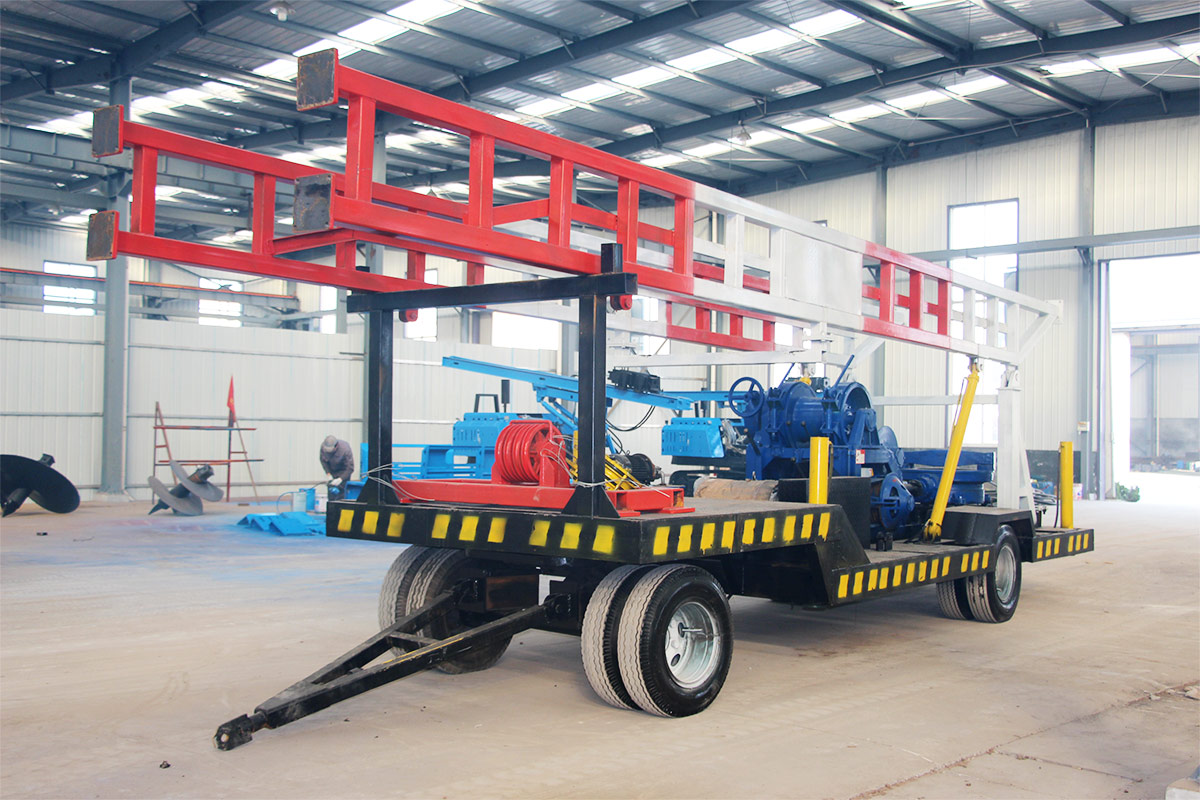

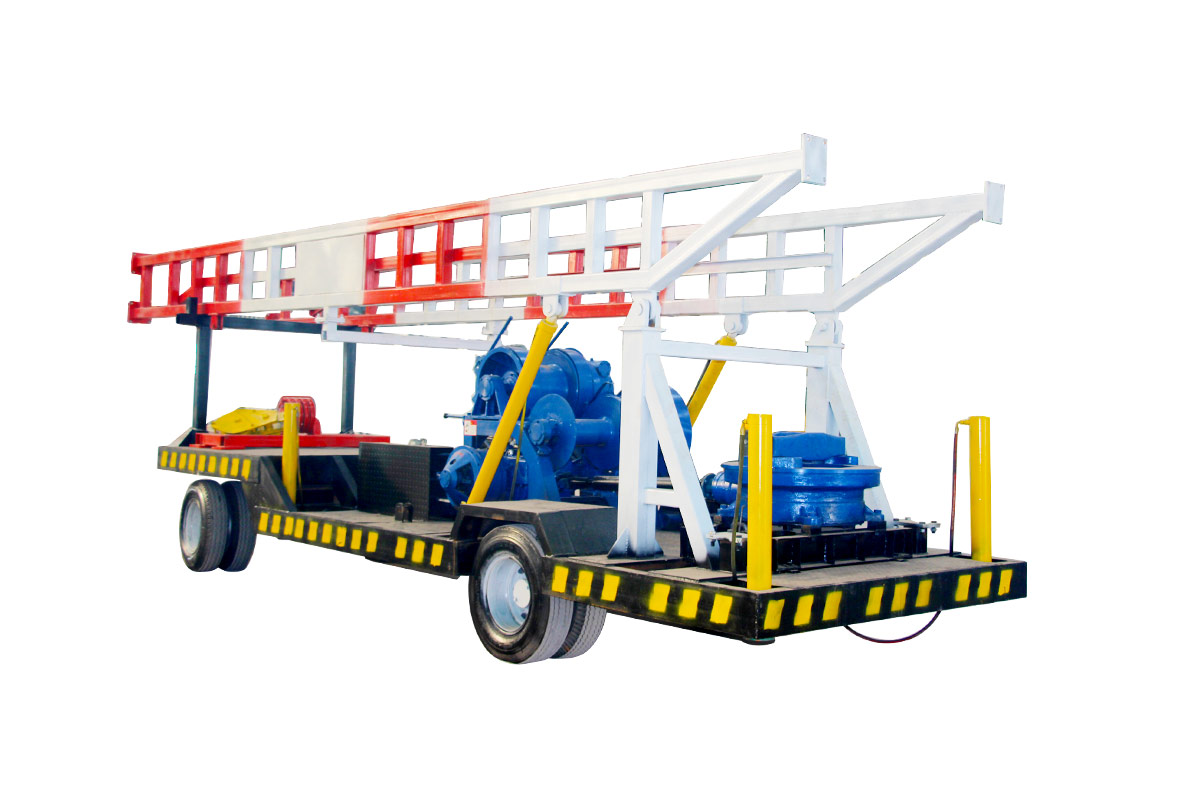

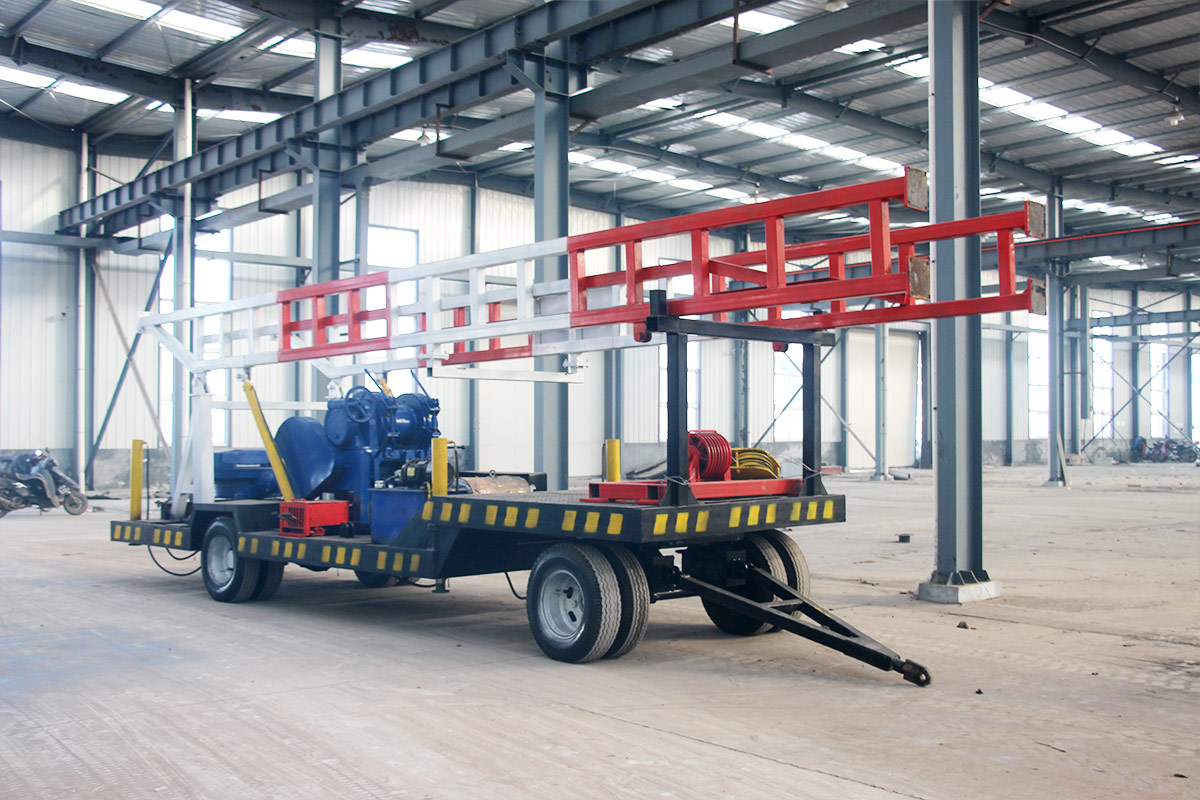

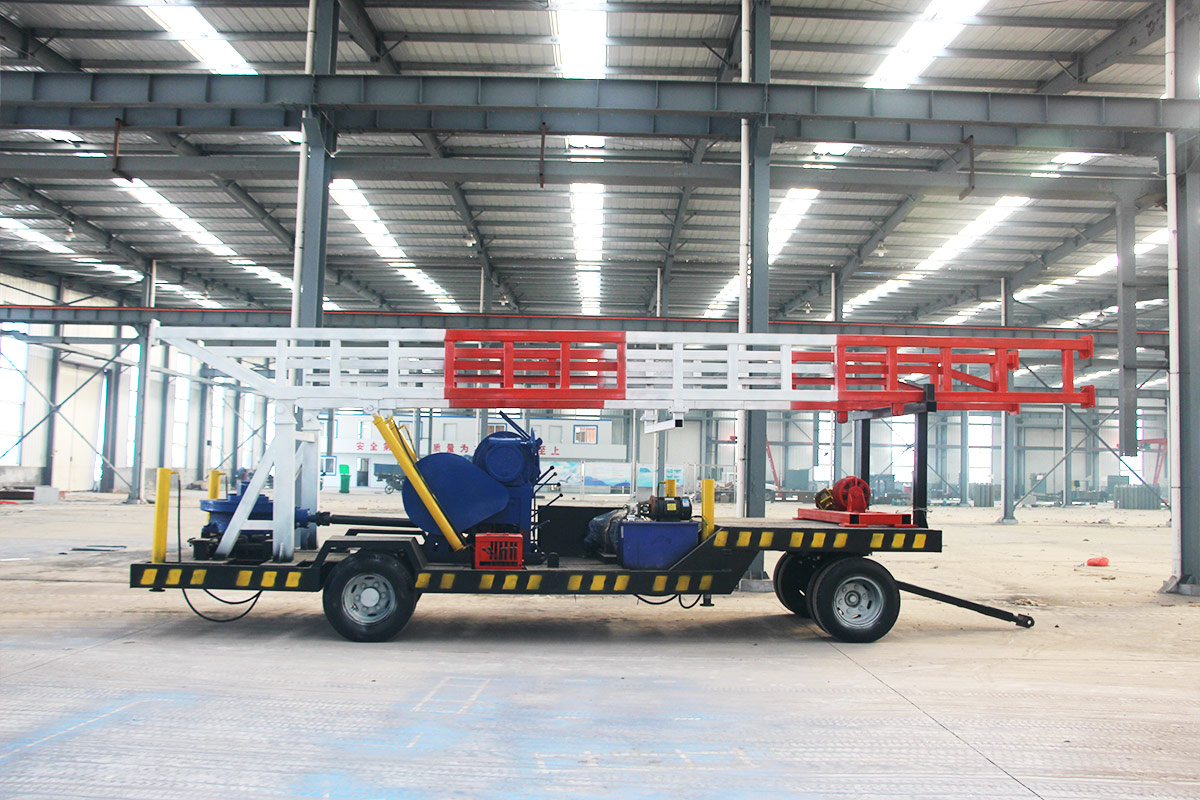

SPJ300T Mill Drilling Rig
-
Drill Diameter: 500-1500mm
Drill Depth: 300m
Drill Mast: 8.6m
The drill machine is bulk type rotary machine, Main usage use for fine particle geology, and normal is soft rock geology
Main Application
Exploration geology
For agricultural irrigation, industrial water
Underground Tunnel. Bridge, engineering drill and so on.
| Model | SPJ300T | ||
| Drill diameter | Φ500mm-1500mm | Drill depth | 300m |
| Maximum output torque | 18KN/m | Driver drill rod | 108mm×108mm×4000mm |
| Drill rod | φ89mm×4200mm, φ127×φ108×4200mm | main winch lift | 30KN |
| Auxiliary winch | 20KN | Spindle inner diameter | 500mm |
| Spindle revolving speed | 40, 70, 128r/min | Drill Mast vertical height | 8.6m |
| Weight | 6.5t | Dimension | 8400mm×2050mm×8000mm |
